End of stroke button stroke with steel roller Series VP

€9.17 Tax included

€7.58 tax excl.

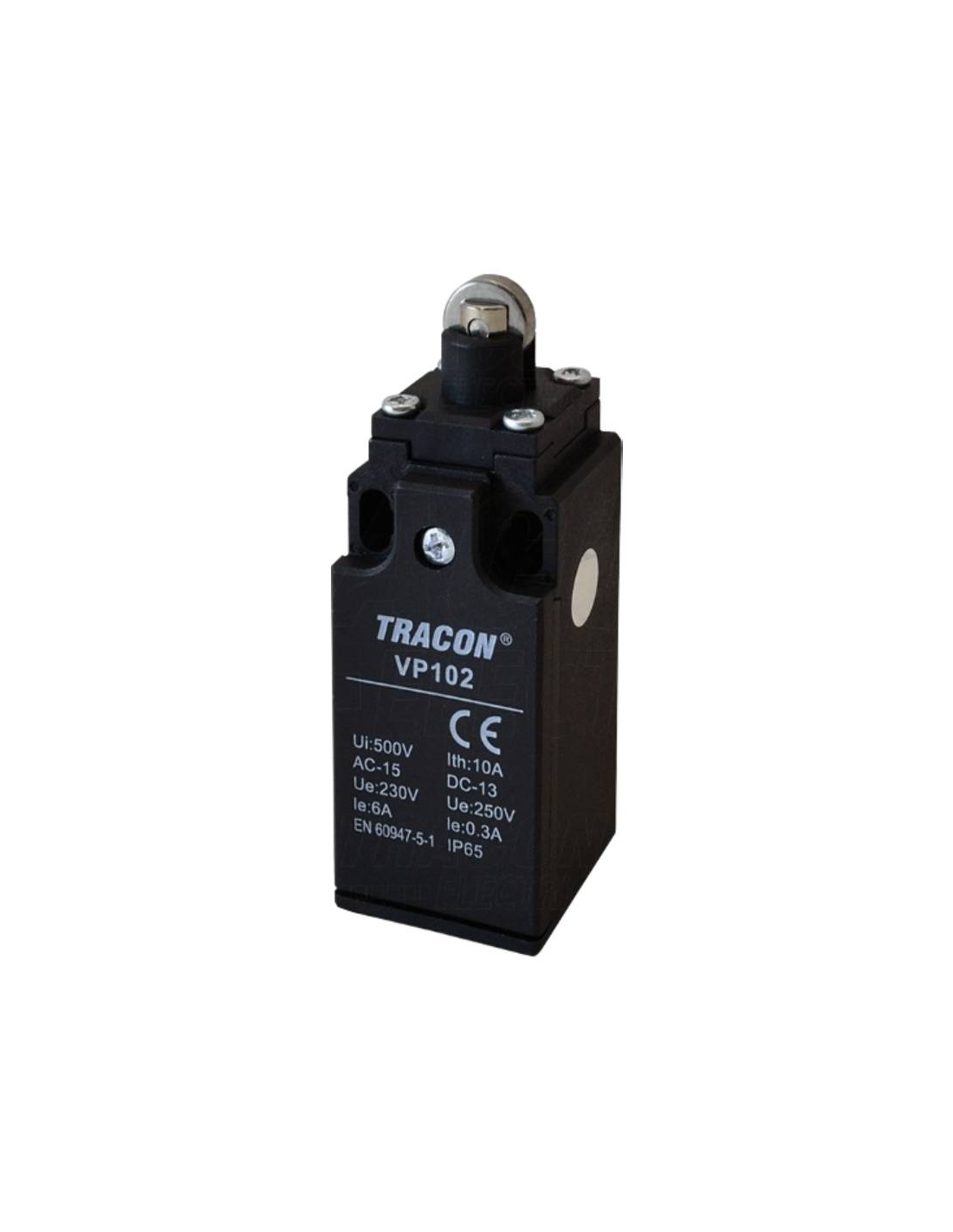

Electric end of stroke, 1NO+1NC contacts, steel fixed roller actuator. Made of high impact resistant thermoplastic resin.


Part number: VP102

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


End of stroke electric, mechanical position detector, made of thermoplastic resin very resistant to shocks. The limit switch incorporates a chamber with 2 electrical contacts, one open NO and the other closed NC. The limit switchis operated by means of a push button with a fixed steel pulley.


Operating travel (mm)

Technical characteristics:

  • Manufacturer/Supplier: Tracon
  • Part number: VP102
  • Actuator type: Push button with Ø12,7" metal roller
  • Contacts: 1NO + 1NC
  • Rated voltage: 230Vac
  • Rated current (In): 5A AC1 230V / 2A AC15 230V / 0,3A DC13 250V
  • Nominal thermal current (Ith): 10A
  • Rated voltage of isolation: 500Vac
  • Mechanical life: 5x106 cycles
  • Material: Thermoplastic, metallic drive head
  • Input thread: M20
  • Connection cable: 0.75 - 1.5mm2
  • Ambient operating temperature: -25ºC to +55ºC
  • Degree of protection: IP65
  • Standards: EN60947-5-1, EN60947-1



Dimensions:





Note: The metal head can be rotated in steps of 90°




Material for professional use, install in compliance with the regulations in force at the place of installation.
This component should not be used safety or hazardous applications
