€157.93 Tax included

€130.52 tax excl.

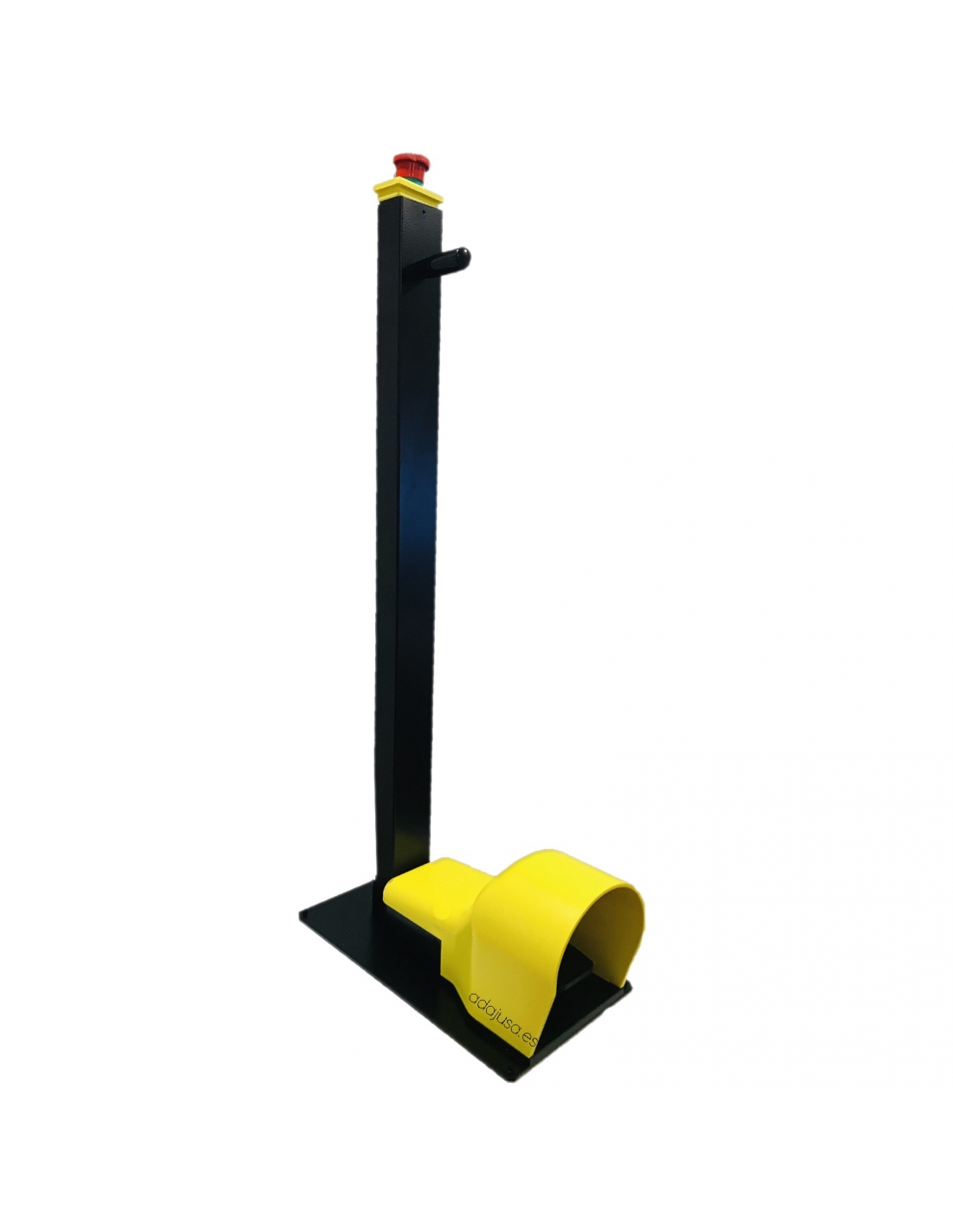

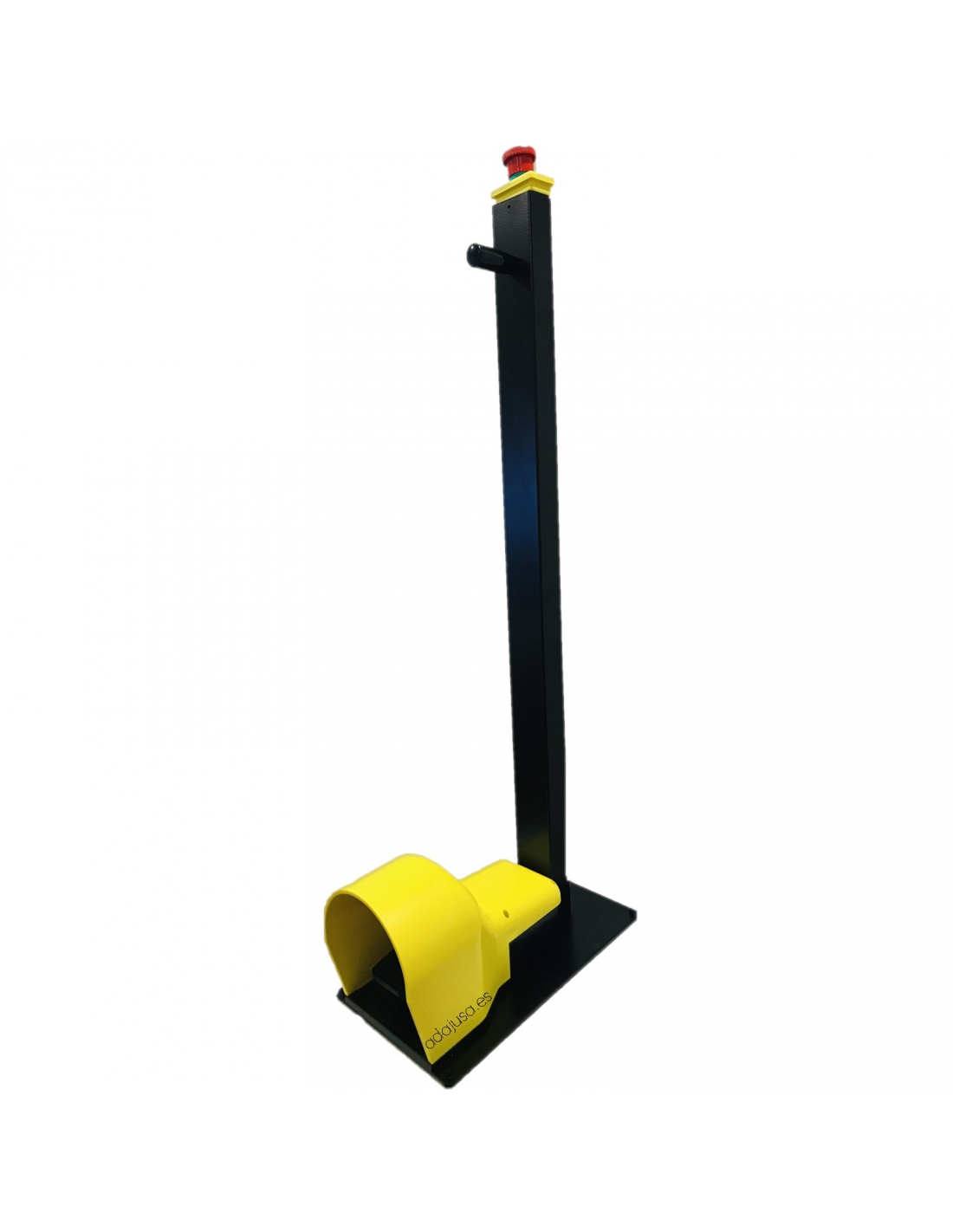

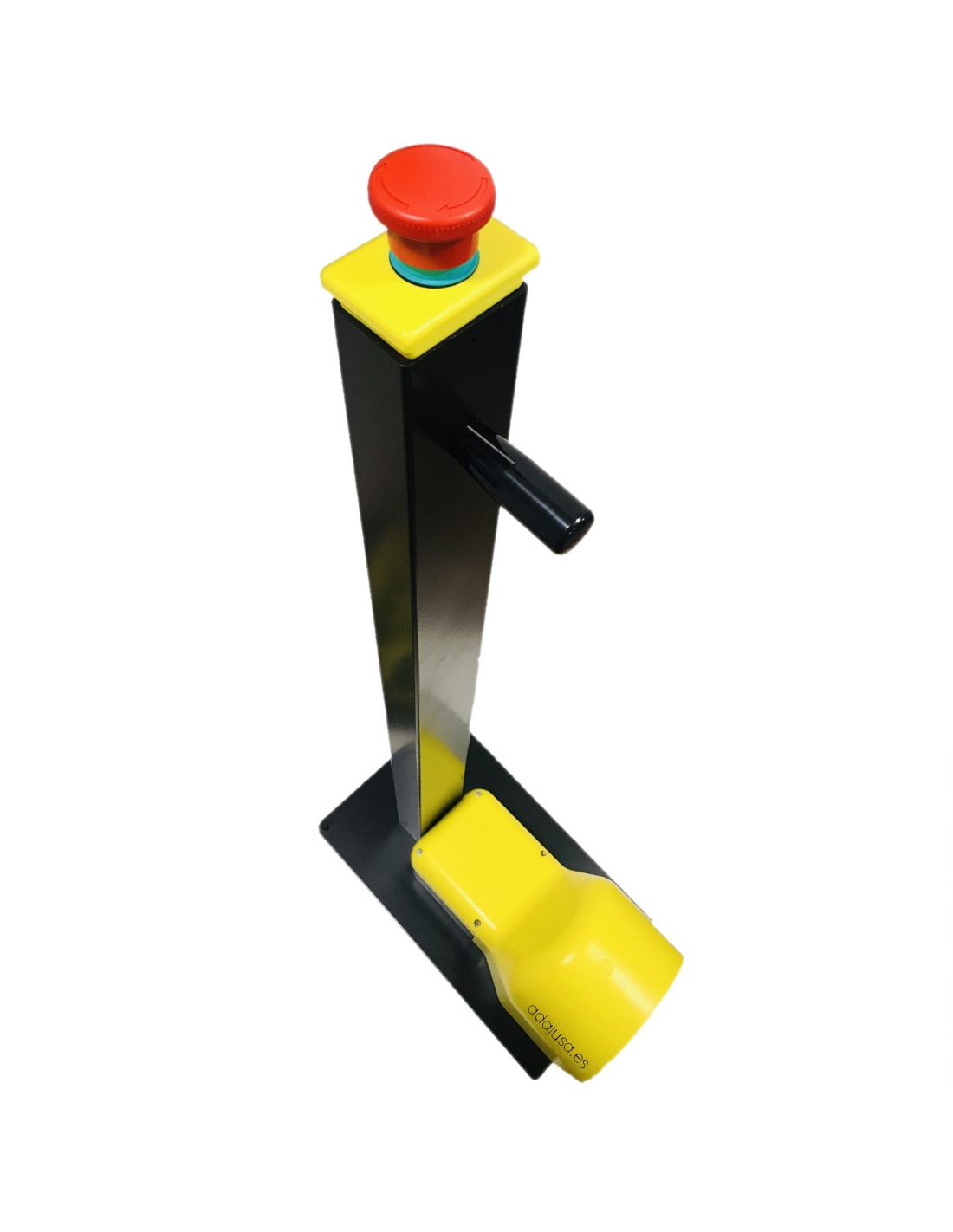

Electric safety pedal with locking device in the resting position, and emergency pushbutton made of thermoplastic with protective cover.

Safety switches are used as control switches for machines and equipment when the operator needs to have a free hand. Emergency stop button Ø40 with interlocking.

It is equipped with safety devices to prevent accidental drives.

Color: yellow

Reference: IP7007EMSimbolo pulsador abiertoEsquema seta de emergencia apertura positiva

No queries yet, leave the first!


Safety electric pedal and emergency stop button, made of high strength thermoplastic material with protective cover for industrial and general applications. The electric pedal incorporates a camera with 2 electrical contacts, one open and one closed (NA) abrupt rupture, the emergency stop pushbutton, with a closed contact (NC) of positive opening. Additional contacts can be added on both the pedal and the emergency pushbutton.

Safety pedal switches are used as machine and equipment control switches when the operator needs to have hands-free to perform other functions.

The safety pedals have a protective cover against accidental actuation by falling objects or accidental pulsations. They have a mechanical locking device mounted to prevent pedal actuation if the pedal foot is not fully on the pedal drive. It also has rubber stops at the base to prevent slipping.

The emergency stop button, located above the top of the bar, complies with EN ISO 13850.

The degree of protection of the electric pedal is IP-65. The pedal switch complies with the machinery directive and has the CE marking, manufactured in the European union.

In addition, 2 contact beds can be added, open or closed. The maximum number of contacts per pedal is 4. 2 additional contact switches, open or closed, can be added to the emergency pushbutton. The maximum number of contacts on the emergency button will be 4.

Feature Summary:

  • Manufacturer: Giovenzana.
  • Reference: IP7007EM.
  • Material: Thermoplastic.
  • Color: Yellow (pantone 102C).
  • Contact type: NA.
  • Type of rupture: Brusca.
  • Emergency stop: Push-button screen 40 with interlocking.
  • Contact type: NC positive opening.
  • Maximum insulation voltage (Ui): 690V.
  • Nominal thermal current (Ith): 10A.
  • Nominal operating current (In) in AC-15 AC current category:
    • 24Vac: 16A.
    • 48Vac: 12A.
    • 120Vac: 8A.
    • 240Vac: 6A.
    • 400Vac: 4.5A.
    • 440Vac: 3.5A.
    • 500Vac: 1A.
    • 690Vac: 1A.
  • Nominal operating current (In) in category DC-15 DC current:
    • 24Vdc: 2A.
    • 48Vdc: 1.2A.
    • 110Vdc: 0.4A.
    • 220Vdc: 0.25A.
  • Contact resistance:
  • Positivity: Positive opening NC contact.
  • Degree of protection: IP65.
  • Entrance: M20 cable glands.
  • Operating ambient temperature: -25o.. +70oC.
  • Compliance: IEC/EN60947-5-4.

Dimensions:

Dimensiones pedal con mando

Only Giovenzana contact blocks can be added. 2 more contacts can be added to the pedal and emergency button.

Only Giovenzana contact blocks can be added. 2 more contacts can be added to the pedal.

Additional contact references that can be added are:

  • Open contact screw connection: GI-PL004002
  • Closed contact screw connection: GI-PL004001
  • Open spring connection contact: GI-PCW10
  • Closed spring connection contact: GI-PCW01
