End of stroke pushbutton cam steel Series VP

€9.60 Tax included

€7.93 tax excl.

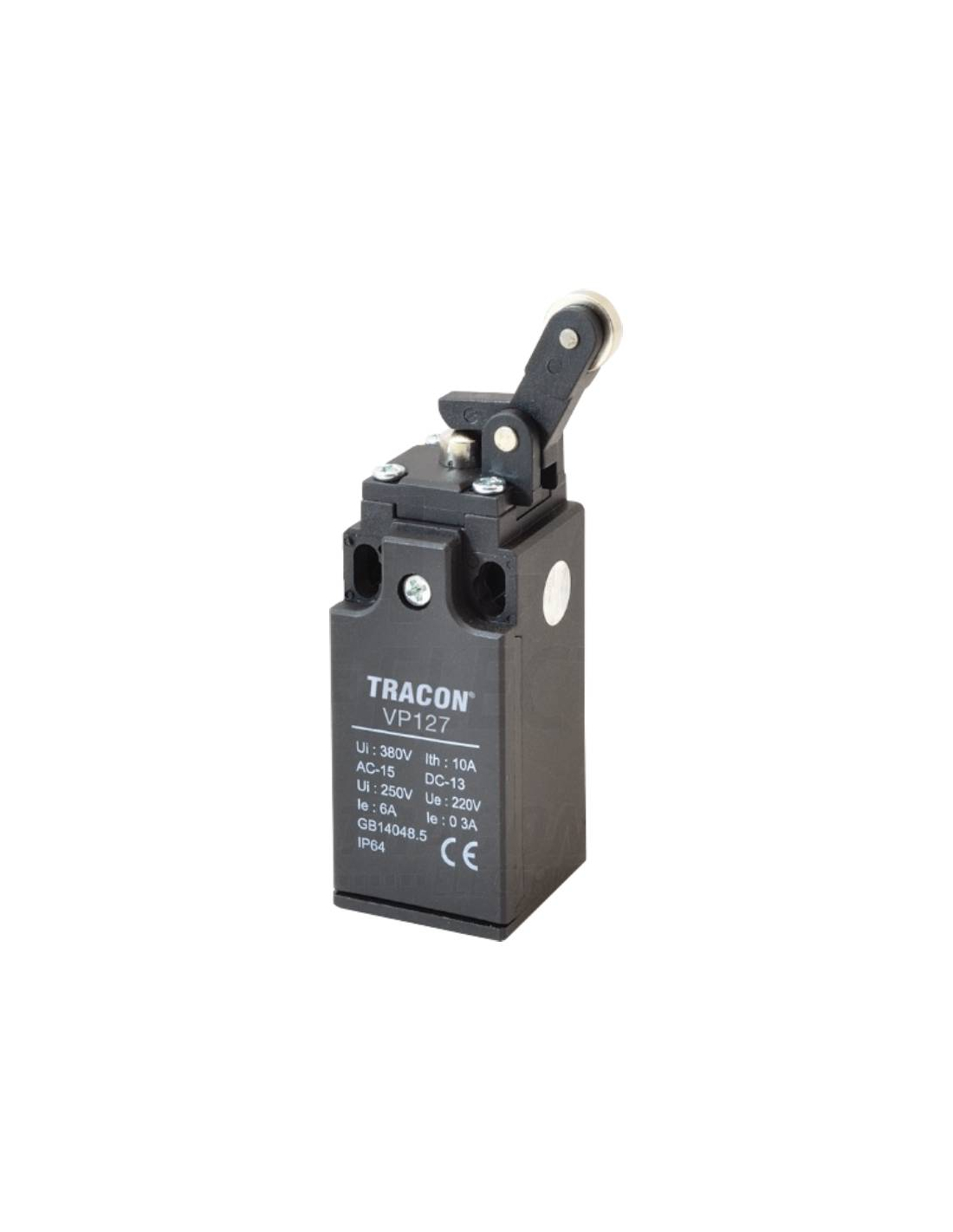

Electric limit switch, 1NO+1NC contacts, push button operation with fixed steel pulley. Made of high impact resistant thermoplastic resin.

Part number: VP127

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Limit switch electric, mechanical position detector, made of thermoplastic resin very resistant to shocks. The limit switch incorporates a chamber with 2 electrical contacts, one open NO and the other closed NC. The actuation of the limit switchis by push button with fixed steel roller.


Operating travel (mm)



Technical characteristics:

  • Manufacturer/Supplier: TRACON
  • Manufacturer's reference: VP127
  • Actuator type: metal pulley push button Ø12,7mm
  • Contacts: 1NO + 1NC
  • Rated voltage: 230Vac
  • Rated current (In): 5A AC1 230V / 2A AC15 230V / 0,3A DC13 250V
  • Rated thermal current (Ith) : 10A
  • Rated voltage of isolation: 500Vac
  • Mechanical life: 5x106 cycles
  • Material: Thermoplastic, metal actuator head
  • Inlet thread: M20
  • Connection cable: 0.75 - 1.5mm2
  • Ambient operating temperature: -25oC to +55oC
  • Degree of protection: IP65
  • Standards: EN60947-5-1, EN60947-1


Dimensions:


Note: The metal head can be rotated in 90° steps



Material for professional use, install in compliance with the regulations in force at the place of installation.
This component must not be used for safety or hazardous applications
