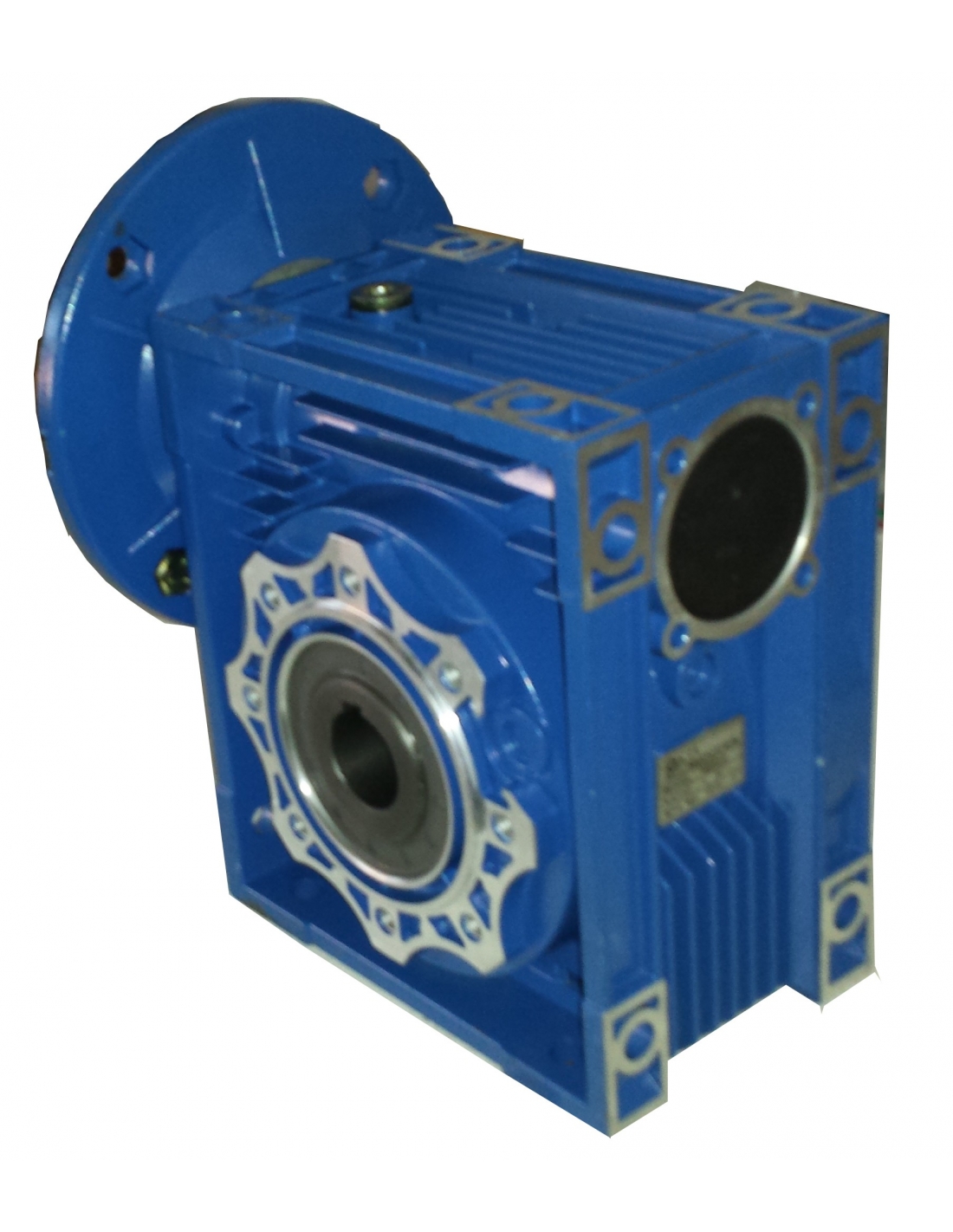

Reducer worm wheel size 50 Flange PAM 140/11 - Motor housing 63 B5

€108.41 Tax included

90.34 tax excl.

YDSEG5063B580

With hollow output shaft Ø25mm, and flange input shaft PAM 140/11 (Ø Ext 140mm and Ø Input shaft 11mm) type B5, suitable for motors with housing size 63.

Reduction ratios: 40-50-80-100

Power ratings of the usual motors at 1500 rpm are:

  • 0.25hp mains. i=80 and 100.
  • 0,33CV Reduced casing. i=80.

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.
Reduction ratio
  • 40
  • 50
  • 100
  • 80

No queries yet, leave the first!
Privacy
Shipments
Returns


Reducer size 50 worm gearbox, compact design and high performance, with hollow output shaft Ø25mm and input shaft Ø11mm.

This size of gearbox supports motors with flange B5 size 61, this size of flange has an O.D. of 140mm and the gearbox has an input shaft diameter of 11mm, PAM 140/11.

Dimensiones brida entrada reductor sinfin corona

  • P: 140mm.
  • M: 115mm.
  • N: 95mm.
  • D: Ø11mm.

The power ratings of the motors at 1500 rpm usually used for this type of gearboxes and with higher service factor fs≥1 are:

  • 0,33CV 1500rpm. Maximum reduction I= 80.
  • 0,5CV 1500rpm. Maximum reduction I= 60.
  • 0.75hp 1500rpm, reduced casing. Maximum reduction I=30.

The available reduction ratios (i) are 40, 50, 80 and 100, depending on the input revolutions we can obtain the following revolutions on the output shaft shown in the following table.

Tabla de revoluciones de salida reductores

Dimensiones sinfin corona tamaño 50

You can download the complete dimensions of the gearbox by clicking on the "ADDITIONS" tab.

Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

Endless crown reducer size. 30 63B14 Endless crown reducer size. 30 63B14 2
Endless crown reducers

Worm Reducer Size 110 PAM 300/38 flange - Motor casing 132 B5

Generico-MOT
9R110xxx132B5
€407.78 (€339.82 tax excl.)
With Ø42mm hollow output shaft, and PAM 300/38 input flange (Ext Ø 300mm and input shaft Ø 38mm) type B5, suitable for motors with frame size 132. Reduction ratios: 7.5 to 60. The powers of the usual engines at 1500 rpm are: 7.5CV Max. grid. i=20. 10CV Max. grid. i=15. Representative image for illustrative purposes, the item supplied will...
Endless crown reducer size. 30 63B14
Endless crown reducers

Reducer worm wheel size 50 Flange PAM 105/14 - Motor housing 71 B14

Generico-MOT
9R050xxx71B14
€108.41 (€90.34 tax excl.)
With hollow output shaft Ø25mm, and flange input shaft PAM 105/14 (Ø Ext 105mm and Ø Input shaft 14mm) type B14, suitable for motors with housing size 71. Gear ratios: 5-7,5-10-15-20-20-25-30-40-50-60-80-100 Power ratings of the usual motors at 1500 rpm are: 0.33hp max. net. i=80. 0,50CV Max. mains. i=60. 0,75CV Reduced casing. Max. net. i=30....
Endless crown reducer Size 75 Flange PAM 200/19 - Motor housing 80 B5
Endless crown reducers

Endless crown reducer Size 75 Flange PAM 200/19 - Motor housing 80 B5

Generico-MOT
9R075xxx80B5
€192.26 (€160.22 tax excl.)
With hollow output shaft of Ø28mm, and input flange PAM 200/19 (Ø Ext 200mm and Ø Input shaft 19mm) type B5, suitable for motors with housing size 80. Reduction ratios: 25-30-40-50-60-80-100. The powers of the usual engines at 1500 rpm are: 0.75CV network. i=25 to 100. 1CV network. i=25 to 60. 1.5CV Reduced housing. net. i=25 to 50....
Endless crown reducer size. 30 63B14 Endless crown reducer size. 30 63B14 2
Endless crown reducers

Endless reducer crown Size 110 Flange PAM 200/24 - Motor housing 90 B5

Generico-MOT
9R110xxx090B5
€407.78 (€339.82 tax excl.)
With hollow output shaft of Ø42mm, and input flange PAM 200/24 (Ø Ext 200mm and Ø Input shaft 24mm) type B5, suitable for motors with housing size 90. Reduction ratios: 50-60-80. Powers of usual engines at 1500 rpm are: 1.5CV Network. i=50-80. 2CV Network. i=50-80. 3CV Car. reduced, Network. i=50 and 60. Representative image for...
Endless crown reducer size. 30 63B14
Endless crown reducers

Endless crown reducer Size 63 Flange PAM 200/24 - Motor housing 90 B5

Generico-MOT
9R063xxx90B5
€142.12 (€118.43 tax excl.)
With hollow output shaft of Ø25mm, and input flange PAM 200/24 (Ø Ext 200mm and Ø Input shaft 24mm) type B5, suitable for motors with housing size 90. Reduction ratios: 10-15-20-25-30. The powers of the usual engines at 1500 rpm are: 1.5CV Max. net. i=30. 2CV Max. net. i=20. Representative image for illustrative purposes, the item...
Endless reducer crown Size 90 Flange PAM 250/28 - Motor housing 100 B5 Endless reducer crown Size 90 Flange PAM 250/28 - Motor housing 100 B5 2
Endless crown reducers

Endless reducer crown Size 90 Flange PAM 250/28 - Motor housing 100 B5

Generico-MOT
9R090xxx100B5
€274.46 (€228.72 tax excl.)
With hollow output shaft of Ø35mm, and input flange PAM 250/28 (Ø Ext 250mm and Ø Input shaft 28mm) type B5, suitable for motors with housing size 100. Reduction ratios: 7,5-10-15-20-25-30. The powers of the usual engines at 1500 rpm are: 3CV Max. net. i=30. 4CV Max. net. i=20. 5.5CV Max. net. i=10. Representative image for illustrative...
Endless crown reducer Size 30 Flange PAM 80/9 - Motor housing 56 B14 Endless crown reducer Size 30 Flange PAM 80/9 - Motor housing 56 B14 2
Endless crown reducers

Endless crown reducer Size 30 Flange PAM 80/9 - Motor housing 56 B14

Generico-MOT
9R030xxx56B14
€66.08 (€55.07 tax excl.)
With hollow output shaft of Ø14mm, and input flange PAM 80/9 (Ø Ext 80mm and Ø Input shaft 9mm) type B14, suitable for motors with housing size 56. Reduction ratios available: 7.5-10-15-20-25-30-40-50-63-80. The powers of the usual motors for these reducers are 0.12hp and 0.16hp (maximum recommended ratio I = 60) 1500 rpm. Representative image...
Endless crown reducer size. 30 63B14
Endless crown reducers

Reducer worm wheel size 50 Flange PAM 90/11 - Motor housing 63 B14

Generico-MOT
9R050xxx63B14
€108.41 (€90.34 tax excl.)
With hollow output shaft Ø25mm, and flange input shaft PAM 90/11 (Ø Ext 90mm and Ø Input shaft 11mm) type B14, suitable for motors with housing size 63. Reduction ratios: 40-50-80-100 Power ratings of the usual motors at 1500 rpm are: 0.25hp mains. i=80 and 100. 0,33CV Reduced casing. i=80. Representative image for illustrative purposes,...
Endless crown reducer size. 30 63B14
Endless crown reducers

Reducer worm wheel size 50 Flange PAM 200/19 - Motor housing 80 B5

Generico-MOT
9R050xxx80B5
€108.41 (€90.34 tax excl.)
With hollow output shaft Ø25mm, and flange input shaft PAM 200/19 (Ø Ext 200mm and Ø Input shaft 19mm) type B5, suitable for motors with size 80 housing. Reduction ratios: 5-7,5-10-15-20-20-25-30-40-50 Reducer valid for motors of 1.000 or 1.500 rpm.The powers of the usual motors at 1500 rpm are: 0.75hp Max. net. i=80. 1HP Max. net. i=20....
Endless crown reducer Size 63 Flange PAM 160/14 - Motor housing 71 B5
Endless crown reducers

Endless crown reducer Size 63 Flange PAM 160/14 - Motor housing 71 B5

Generico-MOT
9R063xxx71B5
€142.12 (€118.43 tax excl.)
With hollow output shaft of 25mm,and input flange PAM 160/14 (Ext 160mm and 14mm inlet axle) type B5, suitable for motors with housing size 71. Reduction ratios: 50-60-80-100. The usual engine powers at 1500 rpm are: 0.5CV i-50 and 60. Representative image for illustrative purposes, the item supplied will correspond to the indicated...
Endless crown reducer size. 30 63B14 Endless crown reducer size. 30 63B14 2
Endless crown reducers

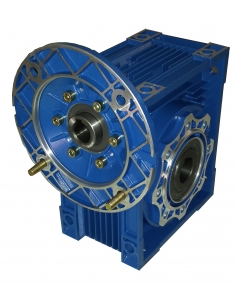

Endless crown reducer Size110 Flange PAM 200/19 - Motor housing 80 B5

Generico-MOT
9R110xxx80B5
€407.78 (€339.82 tax excl.)
With hollow output shaft of 42mm, and input flange PAM 200/19 (Ø Ext 200mm and Ø Input shaft 19mm) type B5, suitable for motors with housing size 80. Reduction ratios: 100. Powers of usual engines at 1500 rpm are: 0.75CV Network. i=100. 1CV Network. i=100. Representative image for illustrative purposes, the item supplied will correspond...
Gear motor single-phase 0.37kW 0.5HP 230Vac 1500 rpm ratio 15 T40 (94rpm) Gear motor single-phase 0.37kW 0.5HP 230Vac 1500 rpm ratio 15 T40 (94rpm) 2
  • Pack
Single-phase geared motors

Single-phase Gear motor 0.37kW 0.5HP 230Vac 1500 rpm ratio 15 T40 (94rpm)

Generico-MOT
PK-9MR040037154M
€195.23 (€162.69 tax excl.)
Single-phase Gear motor 0.37kw 0.5HP 230Vac, reducer size 40 with reduction ratio I:15 that allows output turns of approximately 94rpm. Motor: Single-phase 0.37Kw 230Vac 1500rpm Reducer : size 40 I:15. Output laps: 94 For output shaft: Ø18mm Representative image for illustrative purposes, the item supplied will correspond to the indicated...

Customers who bought this product also bought:

SPZ 75x1 v-belt Pulley with T1108 taper - ADAJUSA SPZ 75x1 v-belt Pulley with T1108 taper - ADAJUSA 2
  • Pack
V-belt pulleys complete with taper

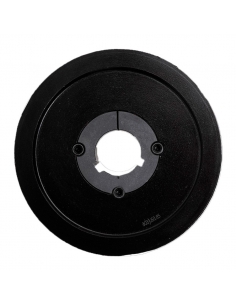

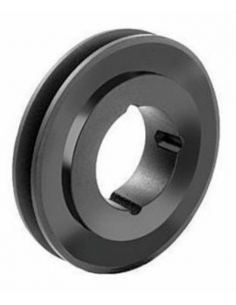

V-belt pulley 75mm 1 slot for shaft diameter 24mm type SPZ
