Linear guideways fins size 35 - Hiwin

€95.20 Tax included

€78.68 tax excl.

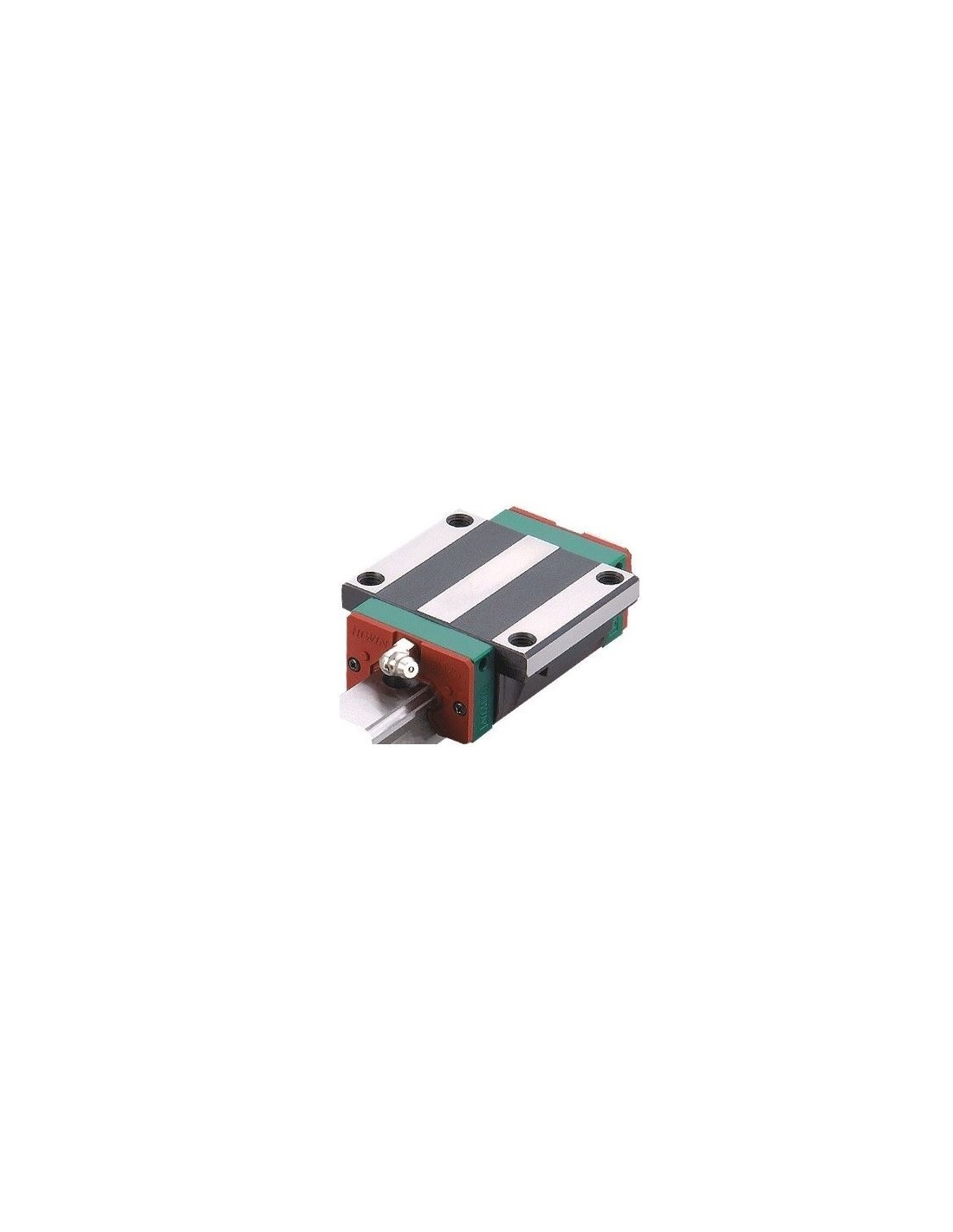

HIWIN size 35 flanged skid

Available in precision C (high load) or H (super high load) and preload Z0 or ZA

Reference: HGW35xxx

Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

Precision-Preload

No queries yet, leave the first!


HIWIN flanged runner blocks (wings), size 35 square with precision C or precision H and preload Z0 or preload ZA.


HG series recommended for: Grinders, milling and drilling machines, lathes, machining centers, wood

Preload Z0: Light preload 0 – 0.02 Cdyn. Steady load direction, little vibration, less precision required

Manufacturer: HIWIN

Manufacturer reference:
- HGW35-CCC ( flanged linear guideways block, high load; linear guideways block mounting from above or below; preload Z0; precision C)
- HGW35-CCH ( flanged linear guideways , high load; linear guideways mounting from above or below; preload Z0; precision H)
- HGW35-CCZAH ( flanged linear guideways , high load; linear guideways mounting from above or below; preload ZA; precision H)
- linear guideways -HCC (Flanged Runner Block, Super High Load; Runner linear guideways from Above or Below; Preload Z0; Accuracy C)
- linear guideways -HCH ( Flanged Runner Block, Super High Load; Runner linear guideways from Above or Below; Preload Z0; Accuracy H)
- HGW35-HCZAH ( flanged linear guideways , super high load; linear guideways mount from above or below; preload ZA; precision H)

Dimensions:

  • W: 100
  • B: 82
  • B1: 9.0
  • Q:62
  • L1: CC - 80.0 / HC 105.8
  • L: CC - 112.4 / HC 138.2
  • K1: CC - 14.60 / HC 27.50
  • K2: 7.00
  • M: M10
  • G: 12.0
  • T: 10.1
  • T1: 18.0
  • Q2: 13.0
  • H2: 9.00
  • H3: 12.6
  • Load capacities (N)
    • Cdyn: CC - 49520 / HC 60210
    • C0: CC-69160 / HC-91630
  • Weight: CC - 1.56 / HC 2.06 kg


For other sizes or executions consult.

Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.
