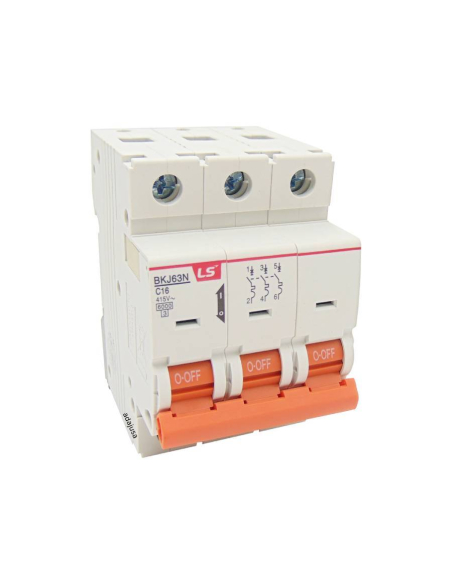

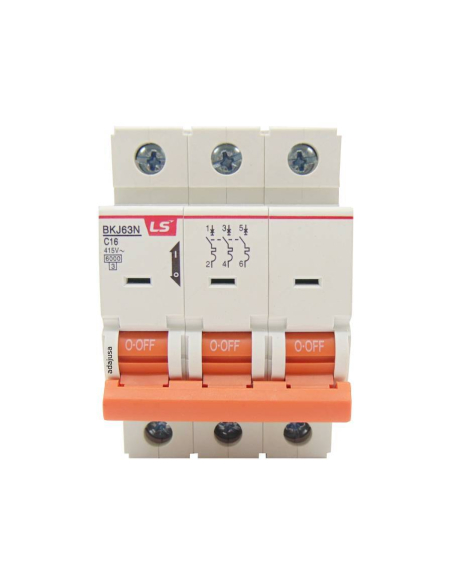

MCB circuit breaker 3 poles 32A (3x32A) Curve C - LS

€21.32 Tax included

17.77 tax excl.

BKJ63N3PC32A

MCB circuit breaker 3 poles 32A Curve C, for protection against short circuits and overloads in three-phase installations. With an breaking capacity of 6000A.

Reference: BKJ63N 3P C32A

Diagrama magnetotérmico 3 polos

Logotipo LS Industrial Systems


Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

1 question about the product
Privacy
Shipments
Returns


MCB circuit breaker 3 poles 32A curve C, for protection against short circuits and overloads in installations and three-phase elements. High cutting power assigned, 6000A according to IEC 60898-1.

Ideal for use in both domestic or industrial installations as well as in machine automation cabinets.

High reliability and performance, allowing a high number of duty cycles.

Wide range of accessories available for these MCB circuit breakers.

Main features of MCB circuit breaker:

  • Manufacturer/Supplier: LS (LG Industrial Systems)
  • Reference: BKJ63N 3P C32A
  • Nominal MCB circuit breaker intensity: 32A
  • Number of poles: 3 (3x32A)
  • Use of MCB circuit breaker: domestic, tertiary and industrial sector
  • MCB circuit breaker cutting power: 6000A
  • Operating voltage: 230/400Vac 50/60Hz
  • Shooting curve: C
  • Mechanical life: >6000 operations
  • Regulations: IEC60898-1
  • Marking: CE
  • Allows the use of pin-like connection combs
  • Connection capacity: 25mm2 cable
  • Width: 3 modules (3x17.8mm)

Material for professional use, install in compliance with the regulations in force at the installation site.

Questions

Question
Puedo usar este interruptor para un voltaje de 220v.
Answer

Buenos días,

Si son válidos a 230Vac, la tensión máxima nominal de empleo es de 400Vac. Eso si, siempre para tensiones alternas.

Saludos

Ricardo castro on 03/20/2018 11:33:55
