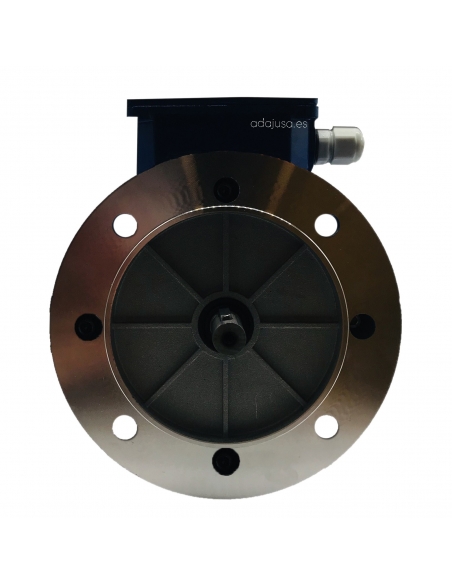

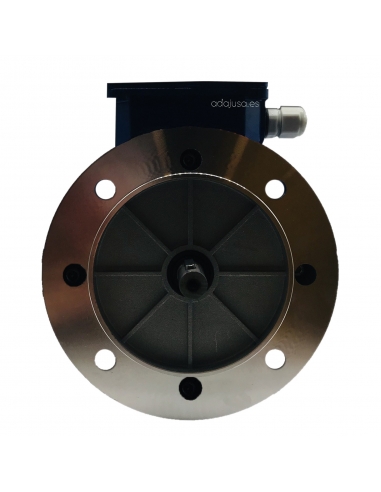

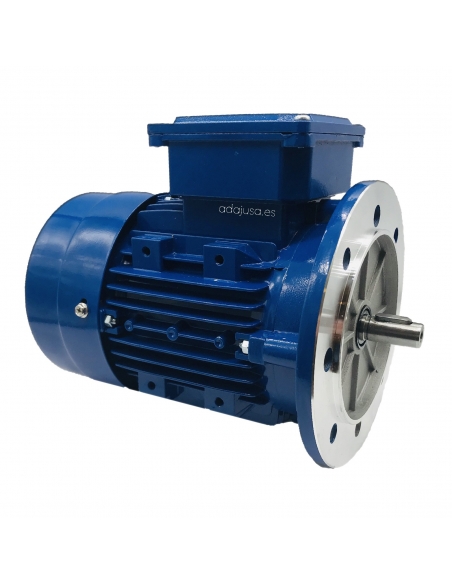

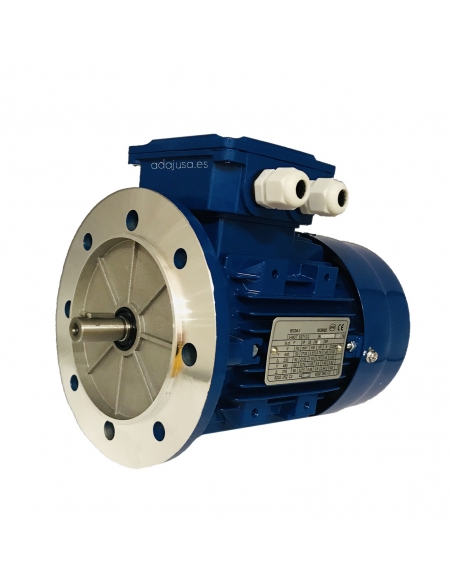

Single-phase motor 0.75Kw 1HP 230V 1500 rpm medium starting torque, Flange B5

Q: Hola, ¿ que tipo de condensador de arranque en concreto y con que carácterísticas necesito si quiero subirle el par motor de arranque a este motor en concreto ? podéis mandarme el enlace del producto que necesita ? y no sé si necesita tmbien un relé para ello y el diagrama de conexiones puesto que tengo este motor y quiero subirle el par de arranque estoy interesado en adquirirlo y puede que también un prereductor para darle aún mas par ( es para una trituradora )

Buenos días. No es posible transformar directamente un motor monofásico de medio par de arranque en uno de alto par de arranque sin cambiar el diseño interno del motor. Hay que instalar un condensador de arranque y un disyuntor centrífugo que va colocado en el rotor del motor. https://adajusa.es/es/motores-monofasicos-1500-rpm-brida-b5-alto-par/943-motor-monofasico-075kw-1cv-230v-1500-rpm-alto-par-de-arranque-brida-b5-8435532809432.html No obstante, verifique que cumpla con sus especificaciones. Saludos Adajusa

€158.83 Tax included

132.36 tax excl.

SY8024B5

Single-phase electric motor 0.75kW (1HP) 230V 1500 rpm Flange B5, half starting torque, aluminum housing. Manufactured under European IEC regulations.

Voltage: 230Vac 50Hz.
Power: 0.75Kw - 1HP
Type: Half boot torque.
Number of poles: 4.
Revs: 1500 rpm.
Flange: B5
Shaft diameter: 19mm.
Flange diameter: 200mm.
PAM Flange: 200/19
Size: 80(80)
Energy efficiency: IE1.

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

1 question about the product

Privacy

Shipments

Returns

Single-phase electric motor, 0.75kw (1HP) 230Vac 50Hz 4 poles (1500 rpm), B5 type flange and half starting torque.

Standard single-phase electric motors for general uses, manufactured under European IEC standards in aluminium with detachable foot. Coiled in enamelled copper with class F insulation. The execution of the housing is closed, it has retainer on the output shaft that gives it a degree of protection IP55. The condenser is fully housed in the motor terminal box.

By properly positioning the connecting plates in the terminal box, the motor can rotate both right and left.

Features:

Engine type: asynchronous squirrel cage.
Voltage: 230 Vac. 50Hz.
Power: 0.75Kw (1HP).
Medium start torque.
Number of poles: 4 (1500 rpm).
Nominal intensity (In): 5.05A
Starting intensity (Ia): 20
Revs: 1410 rpm.
Yield: 68%
Power factor (Cos): 0.95
Maximum Torque / Nominal Torque (Tmax/Tn): 1.7
Starting torque / Nominal torque (Ts/Tn): 0.4
Permanent capacitor: 25uF/450V
Service: continuous S1
Degree of protection: IP55.
Clamping type: Flange B5.
Shaft Diameter: 19mm
Flange Diameter: 200mm
PAM Flange: 200/19.
Enclosure size: 80 (802)
Color: Blue.
Housing material: Aluminum.
Sound level (dB): 70.
Weight: 9.2 Kg.
CE marking.

Dimensiones motores monofasicos B5

For more information, other powers or executions consult.
As with any asynchronous electric motor, the installation of a motor guard is mandatory to avoid overload damage.

Material for professional use, install in compliance with the regulations in force at the installation site.

monophase_motor_circuit_breaker

How to install a circuit breaker (motor circuit-breaker) with motor single-phase

Download (59.36KB)

Connection of single-phase motor

Electrical connection of single-phase motors

Download (487.97KB)

Technical information motors

Technical information on electric motors, dimensions and three-phase and three-phase connections single-phase

Download (1.21MB)

ES-Engine Annex

Download (253.95KB)

Annex engines-FR

Download (262.97KB)

EN-Engine Annex

Download (631.69KB)

Annex motors-PT

Download (249.5KB)

IT-motor annex

Download (628.21KB)

Annex motors-DE

Download (638.45KB)

Questions

Question

Hola, ¿ que tipo de condensador de arranque en concreto y con que carácterísticas necesito si quiero subirle el par motor de arranque a este motor en concreto ? podéis mandarme el enlace del producto que necesita ? y no sé si necesita tmbien un relé para ello y el diagrama de conexiones puesto que tengo este motor y quiero subirle el par de arranque estoy interesado en adquirirlo y puede que también un prereductor para darle aún mas par ( es para una trituradora )

Answer

Buenos días.

No es posible transformar directamente un motor monofásico de medio par de arranque en uno de alto par de arranque sin cambiar el diseño interno del motor. Hay que instalar un condensador de arranque y un disyuntor centrífugo que va colocado en el rotor del motor.

https://adajusa.es/es/motores-monofasicos-1500-rpm-brida-b5-alto-par/943-motor-monofasico-075kw-1cv-230v-1500-rpm-alto-par-de-arranque-brida-b5-8435532809432.html

No obstante, verifique que cumpla con sus especificaciones.

Saludos

Adajusa

Eloy on 01/29/2025 01:39:10
