Conical bushing - taper lock size 2517
Conical bushing - taper lock size 2517

Conical bushing - taper lock size 2517

€31.15 Tax included

25.96 tax excl.

92R-T2517-19

Conical bushing, size 2517. The conical bushings are the most suitable and practical system for the assembly of sprockets, pulleys, and transmission elements on axles, without having to use special tools or resort to special machining, allowing a great saving of time and ease of assembly.

Reference: T.L 2517-0xx

The bushings are supplied with the hole finished to the selected diameter, standardized chavetero for the selected shaft diameter, prisoners and screws.

The available shaft diameters are selected from the side menu (right).




Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Shaft diameter
  • 16 mm
  • 18 mm
  • 19 mm
  • 20 mm
  • 22 mm
  • 24 mm
  • 25 mm
  • 28 mm
  • 30 mm
  • 32 mm
  • 35 mm
  • 38 mm
  • 40 mm
  • 42 mm
  • 45 mm
  • 48 mm
  • 50 mm
  • 55 mm
  • 60 mm
  • 65 mm

No queries yet, leave the first!
Privacy
Shipments
Returns


Conical fixing bushing, also called taper-lock, taper-bush, conical bushing ..., are the most suitable and practical system for the assembly of sprockets, pulleys, and mechanical transmission elements on axles with chaveteros.

By using these elements, you avoid having to resort to special machining or particular tools. The pulley or transmission element is already supplied machined for the assembly of these elements, so they allow a great saving of time and ease of assembly.

The conical bushing is supplied with the hole and chavetero already machined to the diameter selected by the customer, with all prisoners and screws.

They are supplied in GG25 machined iron.

Dimensions:

Dimensiones-taper

  • Size: 2517.
  • Available diameters: 16,18,19,20,21,22,24,25,28,30,32,35,38,40,42,45,48,50,55 and 60,65
  • Tightening torque: 48.
  • D1: 85.5 mm.
  • Type: A.
  • S: 44.5

Dimensions of the chavetero as a function of the diameter of the shaft:

Dimensiones-agujero-metrico

Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

15 other products in the same category:

Taper lock size 5050 - ADAJUSA
Taper lock - Taper Bushings for pine nuts

Conical bushing - taper lock size 5050

Generico-TE
92R-T5050
€318.46 (€265.38 tax excl.)
Conical bushing, size 5050. The conical bushings are the most suitable and practical system for the assembly of sprockets, pulleys, and transmission elements on axles, without having to use special tools or resort to special machining, allowing a great saving of time and ease of assembly.Reference: T.L 5050-0xx The bushings are supplied with the hole...
Conical bushing - taper lock size 4030
Taper lock - Taper Bushings for pine nuts

Conical bushing - taper lock size 4040

Generico-TE
92R-T4040
€171.73 (€143.11 tax excl.)
Conical bushing, size 4040. The conical bushings are the most suitable and practical system for the assembly of sprockets, pulleys, and transmission elements on axles, without having to use special tools or resort to special machining, allowing a great saving of time and ease of assembly.Reference: T.L 4040-0xx The bushings are supplied with the hole...
Taper lock size 1210 - ADAJUSA
Taper lock - Taper Bushings for pine nuts

Conical bushing - taper lock size 1210

Generico-TE
92R-T1210
€11.59 (€9.66 tax excl.)
Conical bushing, size 1210. The conical bushings are the most suitable and practical system for the assembly of sprockets, pulleys, and transmission elements on axles, without having to use special tools or resort to special machining, allowing a great saving of time and ease of assembly. The bushings are supplied with the hole finished to the selected...
Conical bushing - taper lock size 1610
Taper lock - Taper Bushings for pine nuts

Conical bushing - taper lock size 1610

Generico-TE
92R-T1610
€15.46 (€12.88 tax excl.)
Conical bushing, size 1610. The conical bushings are the most suitable and practical system for the assembly of sprockets, pulleys, and transmission elements on axles, without having to use special tools or resort to special machining, allowing a great saving of time and ease of assembly. The bushings are supplied with the hole finished to the selected...
Conical bushing - taper lock size 2517
Taper lock - Taper Bushings for pine nuts

Conical bushing - taper lock size 2517

Generico-TE
92R-T2517
€31.15 (€25.96 tax excl.)
Conical bushing, size 2517. The conical bushings are the most suitable and practical system for the assembly of sprockets, pulleys, and transmission elements on axles, without having to use special tools or resort to special machining, allowing a great saving of time and ease of assembly.Reference: T.L 2517-0xx The bushings are supplied with the hole...
Conical bushing - taper lock size 1215 - ADAJUSA
Taper lock - Taper Bushings for pine nuts

Conical bushing - taper lock size 1215

Generico-TE
92R-T1215
€13.44 (€11.20 tax excl.)
Conical bushing, size 1215. The conical bushings are the most suitable and practical system for the assembly of sprockets, pulleys, and transmission elements on axles, without having to use special tools or resort to special machining, allowing a great saving of time and ease of assembly. Reference: T.L 1215-025The bushings are supplied with the hole...
Conical bushing - taper lock size 3525
Taper lock - Taper Bushings for pine nuts

Conical bushing - taper lock size 3525

Generico-TE
92R-T3525
€94.82 (€79.02 tax excl.)
Conical bushing, size 3525. The conical bushings are the most suitable and practical system for the assembly of sprockets, pulleys, and transmission elements on axles, without having to use special tools or resort to special machining, allowing a great saving of time and ease of assembly.Reference: T.L 3525-0xx The bushings are supplied with the hole...
Conical bushing - taper lock size 3535
Taper lock - Taper Bushings for pine nuts

Conical bushing - taper lock size 3535

Generico-TE
92R-T3535
€114.98 (€95.82 tax excl.)
Conical bushing, size 3535. The conical bushings are the most suitable and practical system for the assembly of sprockets, pulleys, and transmission elements on axles, without having to use special tools or resort to special machining, allowing a great saving of time and ease of assembly.Reference: T.L 3535-0xx The bushings are supplied with the hole...
Conical bushing - taper lock size 3020
Taper lock - Taper Bushings for pine nuts

Conical bushing - taper lock size 3020

Generico-TE
92R-T3020
€54.32 (€45.27 tax excl.)
Conical bushing, size 3020. The conical bushings are the most suitable and practical system for the assembly of sprockets, pulleys, and transmission elements on axles, without having to use special tools or resort to special machining, allowing a great saving of time and ease of assembly.Reference: T.L 3020-0xx The bushings are supplied with the hole...
Conical bushing - taper lock size 4545
Taper lock - Taper Bushings for pine nuts

Conical bushing - taper lock size 4545

Generico-TE
92R-T4545
€242.24 (€201.87 tax excl.)
Conical bushing, size 4545. The conical bushings are the most suitable and practical system for the assembly of sprockets, pulleys, and transmission elements on axles, without having to use special tools or resort to special machining, allowing a great saving of time and ease of assembly.Reference: T.L 4545-0xx The bushings are supplied with the hole...
Conical bushing - taper lock size 1615
Taper lock - Taper Bushings for pine nuts

Conical bushing - taper lock size 1615

Generico-TE
92R-T1615
€16.64 (€13.87 tax excl.)
Conical bushing, size 1615. The conical bushings are the most suitable and practical system for the assembly of sprockets, pulleys, and transmission elements on axles, without having to use special tools or resort to special machining, allowing a great saving of time and ease of assembly.Reference: T.L 1615-0xx The bushings are supplied with the hole...
Conical bushing - taper lock size 3030
Taper lock - Taper Bushings for pine nuts

Tapered Cap - taper lock size 3030

Generico-TE
92R-T3030
€74.38 (€61.98 tax excl.)
Conical Cap , size 3030 . Conical bushings are the most suitable and practical system for mounting pinions, pulleys, and transmission elements on shafts, without having to use special tools or resort to special machining, allowing great time savings and ease of assembly. Reference: TL 3030-0xx Bushings are supplied with the hole finished to the selected...

Customers who bought this product also bought:

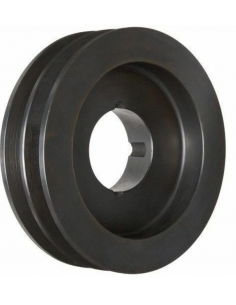

SPB 100x3 V-belt Pulley T1610 Plugper - adajusa.com.com.;
Poles for power transmission

Pulley for trapezoidal belts SPB 100x3 plug slot T1610

Generico-TE
PSPB1003T1610
€46.24 (€38.53 tax excl.)
Pulley for trapezoidal belts Ø100mm, 3 grooves for belts. Machined for conical bushing - taper lock T1610. Made of cast steel and valid for all belts with profile in "V" type B and SPB. Manufactured according to ISO4183 - DIN2211. Reference: POLE-SPB-100X3-T1610 Type of straps: Profile in "V" type B and SPB. Diameter: 100 mm. number of strap slots:...

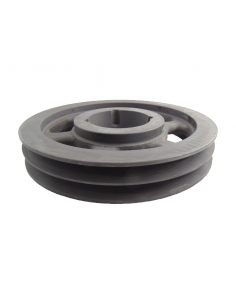

SPB 132x5 V-belt Pulley T2517 - adajusa.com.com.;
