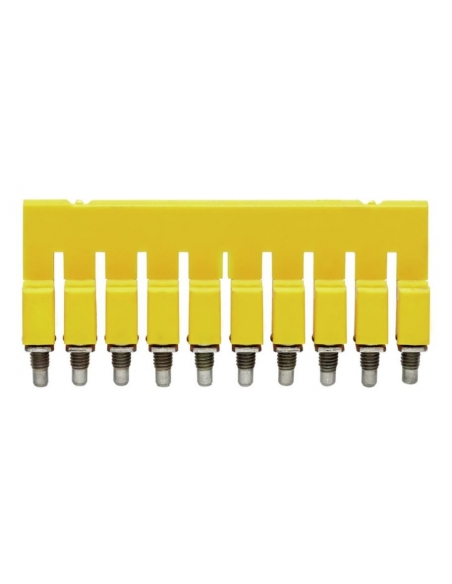

Terminal Bridge 4mm WQV 4/10  -1052060000- Weidmuller
Terminal Bridge 4mm WQV 4/10  -1052060000- Weidmuller

Terminal Bridge 4mm WQV 4/10 -1052060000- Weidmuller

€4.09 Tax included

€3.38 tax excl.

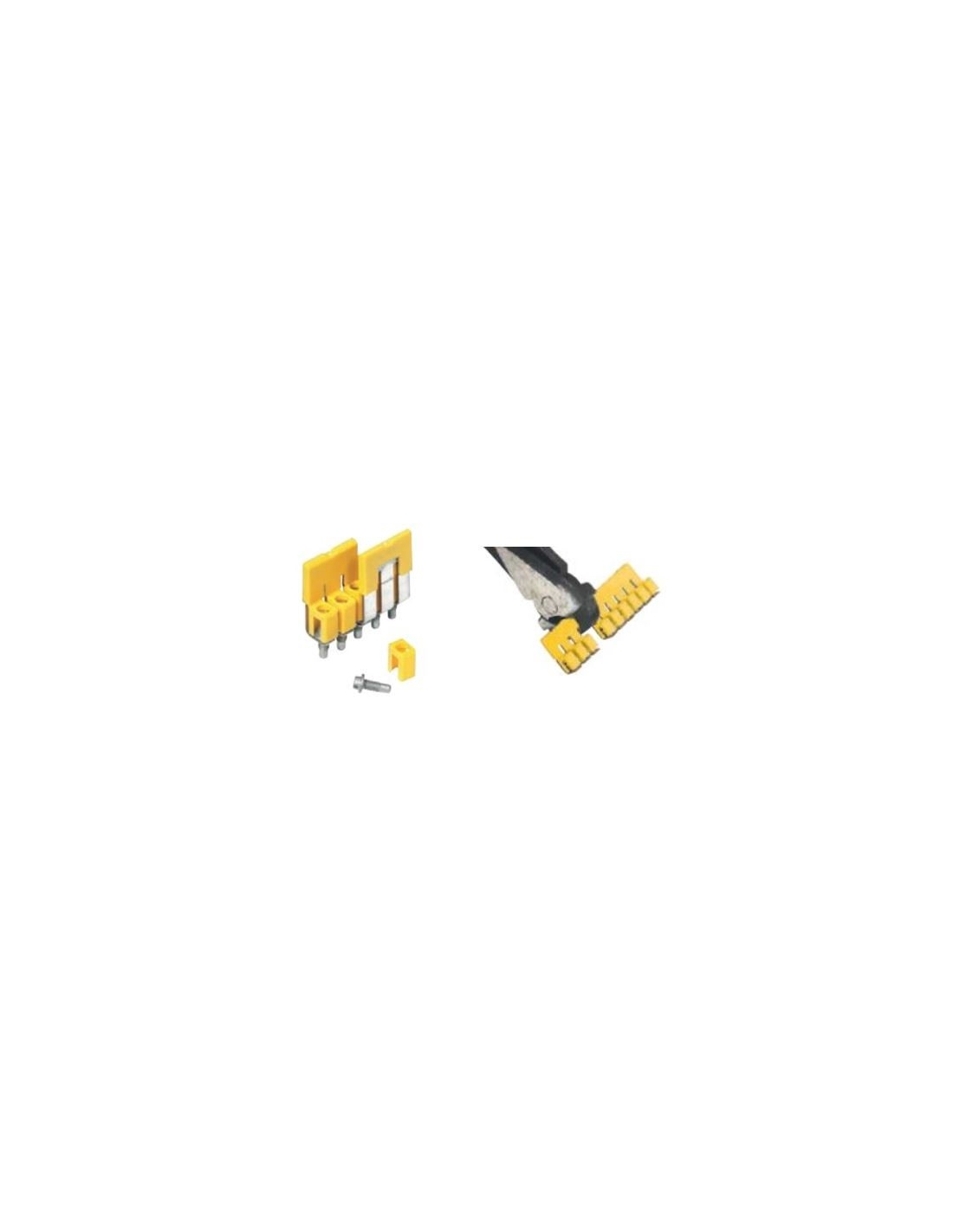

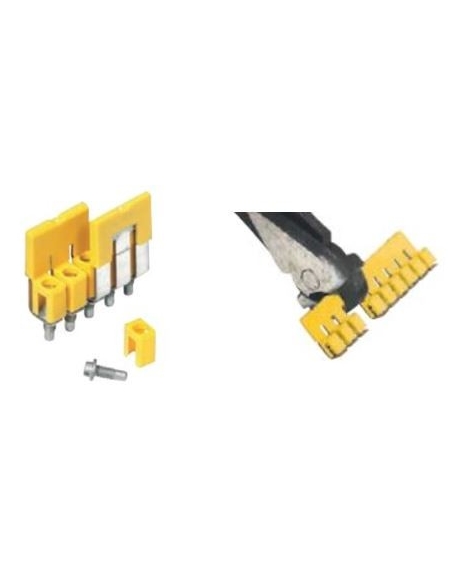

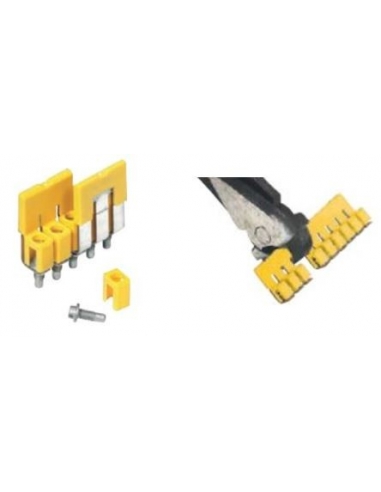

WQV series 4mm terminal bridges. They are supplied in 10-pole strips that can be cut adapting them to the number of poles required. An intermediate socket can also be removed to prevent the connection of some intermediate terminals. These terminals are supplied with yellow insulation that can be removed.

Ref: WQV 4/10 - 1052060000
Logotipo Wiedmuller
Representative image for illustrative purposes, the supplied article is subject to the specifications indicated.

No queries yet, leave the first!

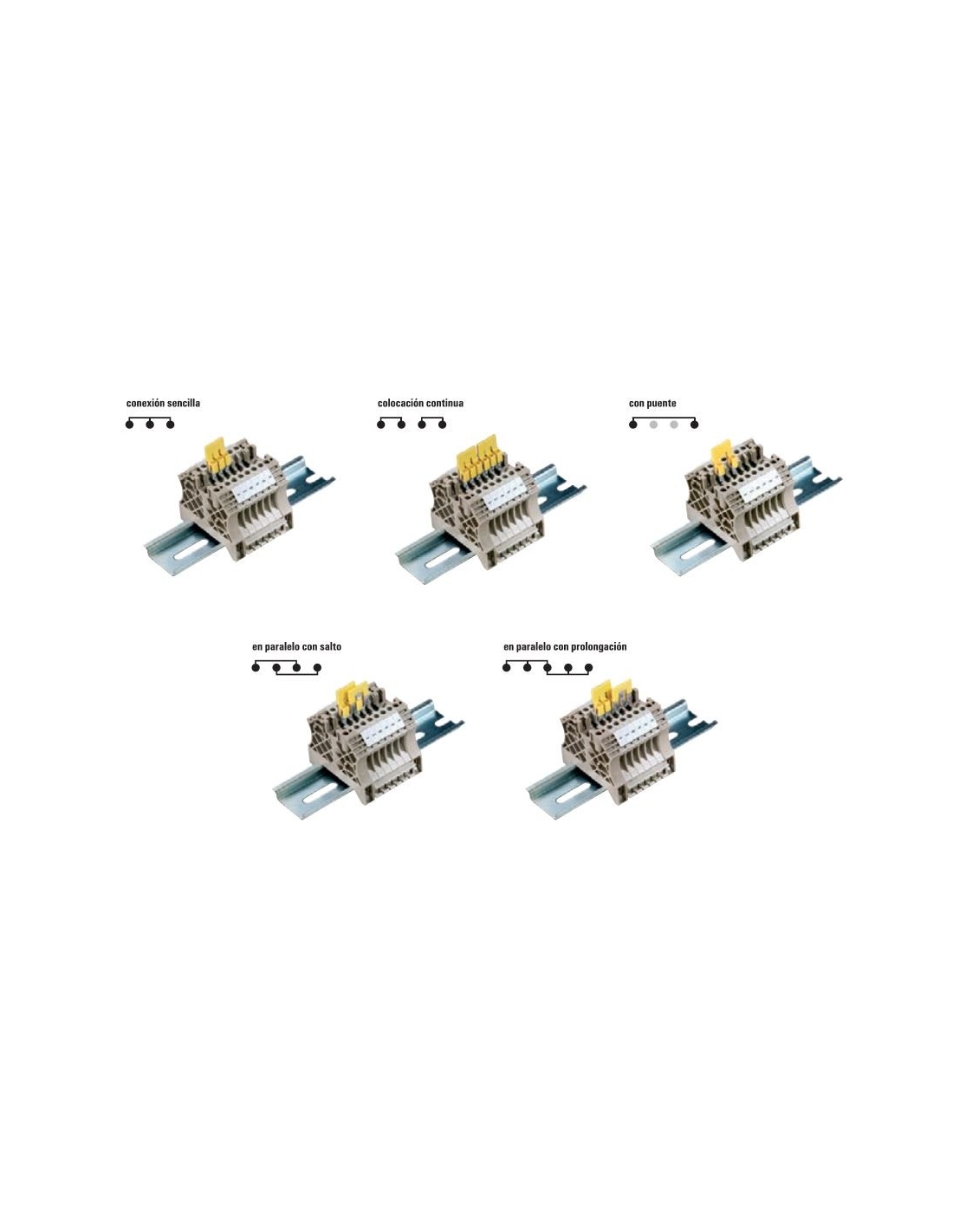

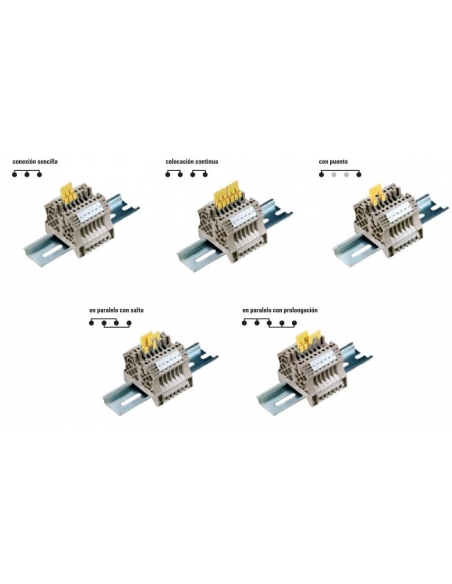

WQV series 4mm terminal bridges. Supply in strips of 10 poles that can be cut adapting them to the number of poles required. This terminal interconnecting system provides a very high flexibility for the realization of projects, allows to be adapted to the needs of the connection, being able to remove bridges of intermediate connections and perform parallel connection with areas of various potentials.

Adaptacion puentes weidmuller adajusa

Montajes

Technical details:

  • Manufacturer: Weidmuller
  • Series: WQV 4/10
  • Code: 1052060000
  • Bipolar rated current: 32A
  • Multipolar rated current: 32A
  • Number of bridged terminals: 10
  • Material: Polyamide PA66
  • Color: yellow
  • Flammability grade: V-0
  • Height: 49.9 mm
  • Width: 7 mm
  • Depth: 18 mm
To expand the information you can download the data sheet by clicking on the tab "Attachments"
Material for professional use, install in compliance with the regulations in force at the place of installation.
