Pneumatic filter 1 20 EVO series automatic drain | Aignep | ADAJUSA | price
Pneumatic filter 1 20 EVO series automatic drain | Aignep | ADAJUSA | price

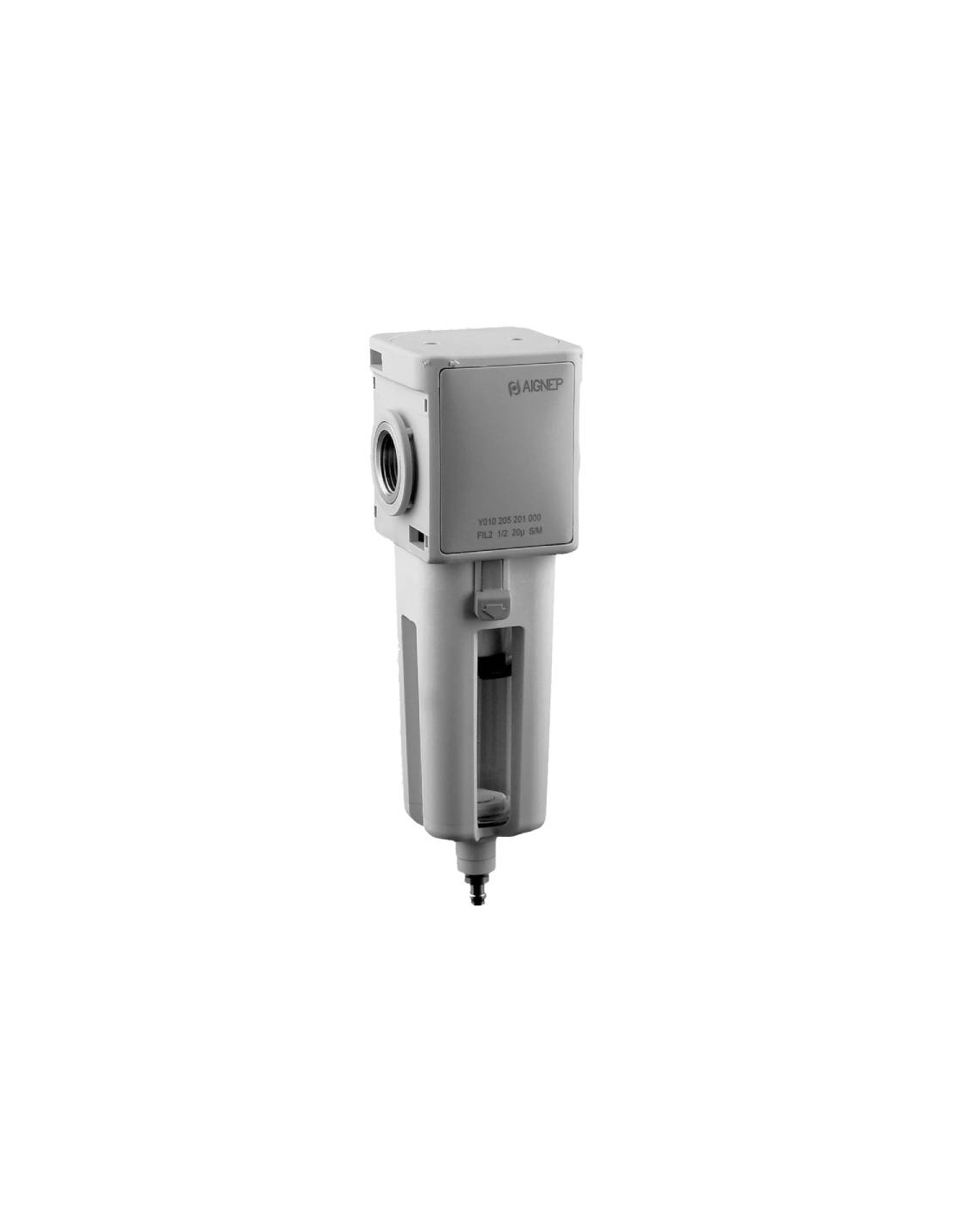

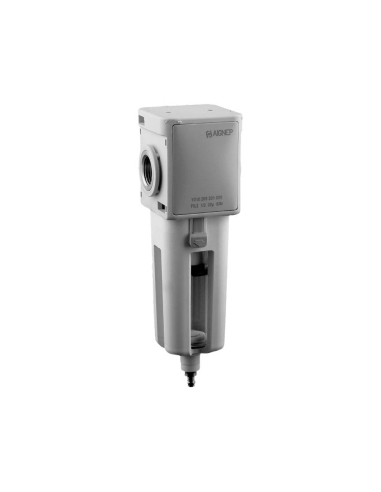

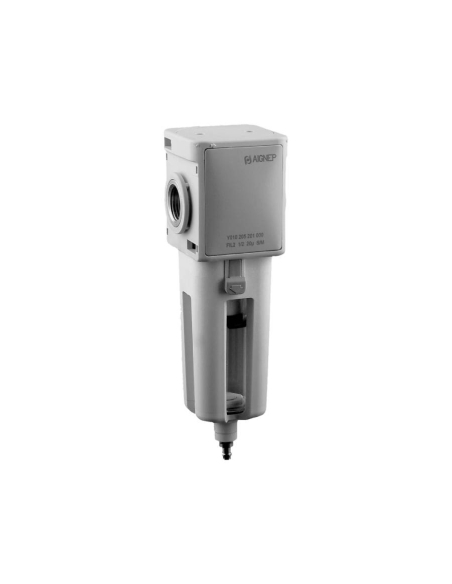

Filter 1 20 microns automatic drain size 3 FRL EVO series - Aignep

€81.17 Tax included

67.64 tax excl.

Y010309202000

1 filter, with a filtration degree of 20μm and automatic discharge, size 3, for retention solid or liquid impurities from the air compressor. These filter vessels are made of technopolymer and with metal finishes. Made in Italy.

Series: FRL Evo
Reference: Y010309202000
Pneumatic symbol filter Adajusa
Aignep logo Aignep logo

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


1 filter vessel with a filtration grade of 20μm to retain solid or liquid impurities from the air compressor. Compact size (T3). The drain type is automatic, discharging the condensate when it reaches the maximum permitted level regardless of the operating pressure.

 Characteristics:

  • Manufacturer: Aignep
  • Manufacturer reference: Y010309202000
  • Threaded drive: 1"
  • Group size: size 3.
  • Filtered grade: 20 μm
  • Maximum inlet pressure: 13 bar
  • Flow rate at 6.3 bar (0.63 MPa; 91 psi) ∆P 1 bar (0.1 MPa; 14 psi) (Nl/min): 7900
  • Fluid: Compressed air or other inert gases
  • Cup capacity (condensation) (cm3): 151
  • Mounting position: Vertical.
  • Working temperature: -10 to +50ºC.

For other sizes or references: consult.

Y010_FRL3_dimensions_table

Professional use material, install in compliance with the regulations in force at the installation site.

For further information you can download the technical sheet by clicking on the "Attached Files" tab.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

Filter-regulator 1/2 T2 Syntesi - Metal work - ADAJUSA
Syntesi regulator filter

Pneumatic filter-regulator 1/2 0-8 bar automatic drain Syntesi series - Metal Work

Metal Work
5624B444
€80.83 (€67.36 tax excl.)
Filter with 1/2 pneumatic pressure regulator, 1/2 maintenance unit for pneumatic applications, automatic drain, compact size (SY2) and regulation range 0-8 kg/cm2, filtration degree of 5 μm. These filter groups are made of technopolymer and nickel-plated brass with excellent resistance to corrosion. European manufacturing. Series:...
Filter-regulator 1/2 T2 Syntesi - Metal work - ADAJUSA
Syntesi regulator filter

Pneumatic filter-regulator 1/2 0-12 bar automatic drain Syntesi series - Metal Work

Metal Work
5624B464
€80.83 (€67.36 tax excl.)
Filter with 1/2 pneumatic pressure regulator, 1/2 maintenance unit for pneumatic applications, automatic drain, compact size (SY2) and regulation range 0-12 kg/cm2, filtration degree of 5 μm. These filter groups are made of technopolymer and nickel-plated brass with excellent resistance to corrosion. European manufacturing. Series:...

16 other products in the same category:

Pressure gauge for 63mm panel with stand - Metal Work - ADAJUSA Pressure gauge for 63mm panel with stand - Metal Work - ADAJUSA 2
  • Pack
Gauges and measurement elements

Pressure gauge with glycerin 0 - 1.6 bar for 63mm panel with stand - Metal Work

Metal Work
PK-MAN6320G4G1.5SOP
€16.45 (€13.71 tax excl.)
Pressure gauge diameter 63mm with stainless steel case filled with glycerin, pressure indication between 0 and 1,6 bar. Pressure gauge to control the pressure of installations, systems or machines. Stainless steel case with rear connection with G 1/4" thread. The internal mechanisms are made of copper alloy. With metal dial, graduation in bar. Steel...
Pressure gauge 50 1/8 0-12 Kgr plastic box
Gauges and measurement elements

Manometer 50 1/8 0-12 bar back plastic box - Metal Work

Metal Work
MWMP5318012
€5.66 (€4.72 tax excl.)
Pressure gauge Ø50 with plastic case. Pressure gauge to control the pressure of the machine to be used. Black plastic case and rear connection with G thread 1/8". The internal mechanisms are made of brass and bronze. With metal dial, graduation in bar and psi. Steel needle. Reference: Z33MP5318012 Representative image for illustrative purposes, the...
Pressure Regulator 1 0-12 bar Aignep FRL Evo series | ADAJUSA | price
1 FR-L filter groups

Pressure Regulator with pressure gauge and lockable 1 0-12 bar size 3 FRL EVO series -...

Aignep
Y020309040000
€67.27 (€56.06 tax excl.)
1 bar pressure Regulator with integrated pressure gauge, range 0-12 bar , size 3, technopolymer body and metal finishes . Allows output pressure stability at the preset pressure . Possibility of fixing by means of side drills. Padlock locking system. Made in Italy.Series: FRL EvoReference: Y020309040000 Representative image for illustrative purposes,...

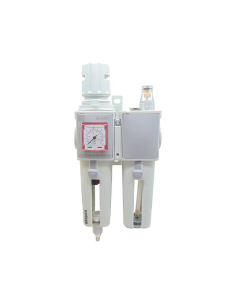

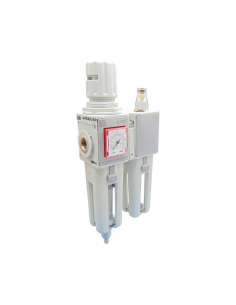

Pneumatic filter group 1 FRL EVO Series Aignep | ADAJUSA | price Pneumatic filter group 1 FRL EVO Series Aignep | ADAJUSA | price 2
