Pneumatic filtering unit 3/4 regulation 0-8 bar automatic drain size 3 FRL EVO series - Aignep

Name: Pneumatic filtering unit 3/4 regulation 0-8 bar automatic drain size 3 FRL EVO series - Aignep
Brand: Aignep
SKU: Y100307232100
Price: 180.79 EUR
Availability: BackOrder

€180.79 Tax included

€150.66 tax excl.

Y100307232100

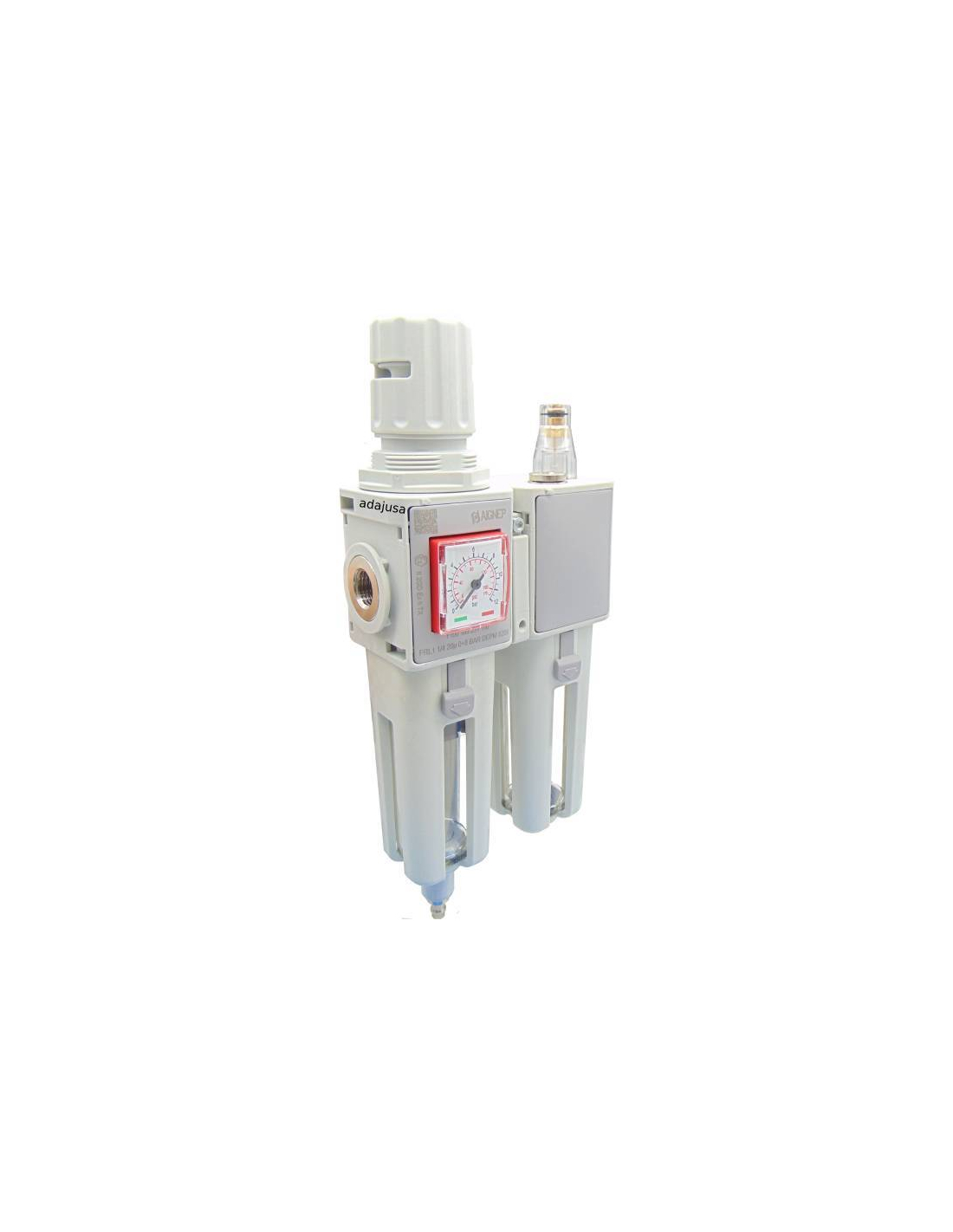

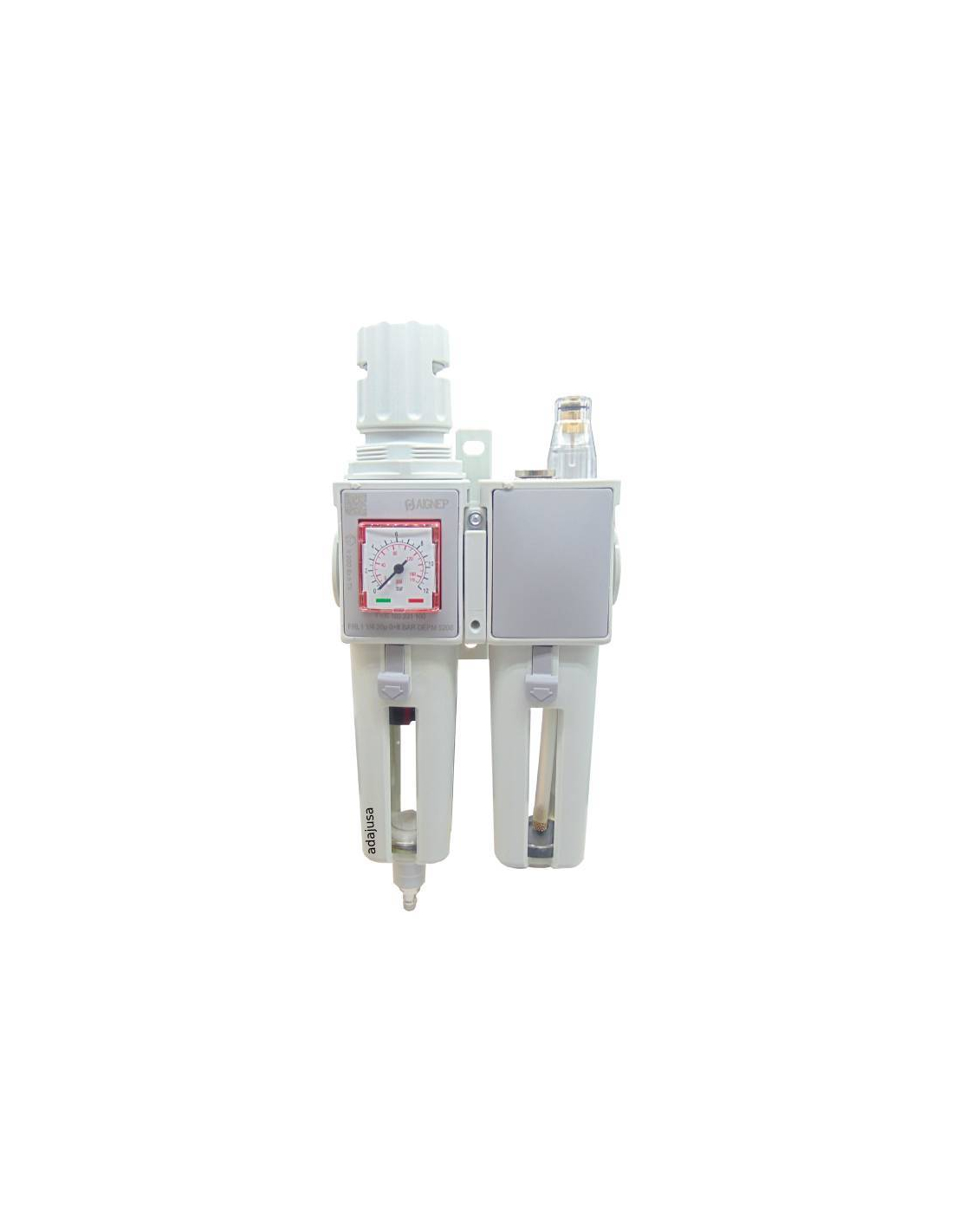

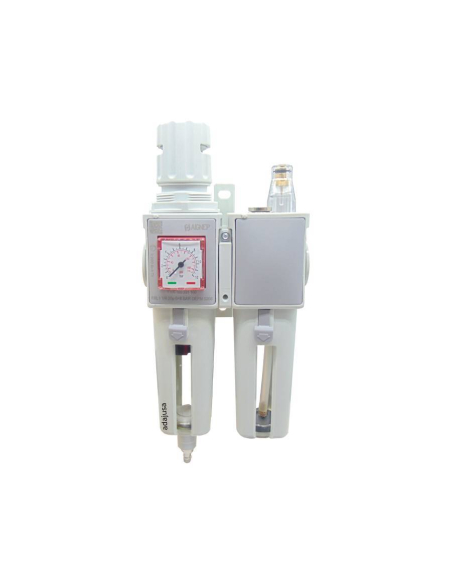

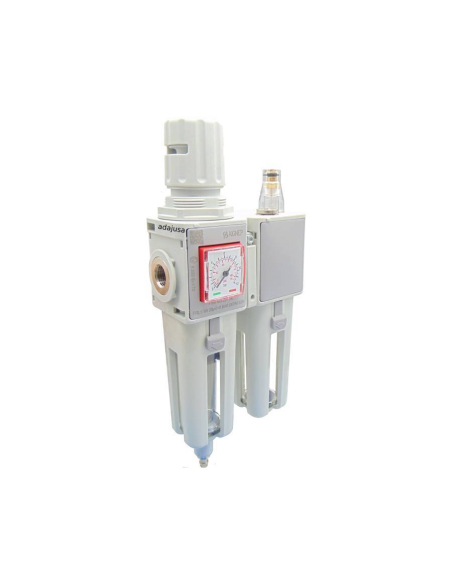

3/4" filter unit, 3/4" maintenance unit for pneumatic applications, automatic drain, compact size (T3) in 2 modules (FR+L), and regulation range 0-8 bar , compact pressure gauge. These filter units are made of technopolymer and with metal finishes. Made in Italy.

Series: FRL Evo
Reference: Y100307232100

Aignep logo Reference standard EVO Adajusa series

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

3/4" filter unit, 3/4" maintenance unit for pneumatic applications, automatic drain, compact size (T3), in 2 modules (FR+L), European manufacture. Fixing by means of side holes. Knob with padlock lock.

The main features of this filter unit include simplified modularity, precise and reliable regulation, highly optimized flow rate, reduced weight and a coalescing filter element. These filter units are manufactured free of silicones.

Compact pressure gauge inserted on the regulator body. With its reduced size and weight, it meets the current demand for miniaturization and performance. Made of technopolymer and nickel-plated brass with excellent corrosion resistance. The type of drain is automatic, discharging the condensate when it reaches the maximum permitted level regardless of the operating pressure.

The main application of this series of filter groups is pneumatic automation, compressed air circuits and installations and compressors.

Filter group features:

Manufacturer: Aignep
Reference: Y100307232100
Number of elements: 2 (FR+L)
Fluid: Compressed air
Thread Size: 3/4
Filtration grade: 20 μm (*)
Condensation drain: automatic
Glass with external viewer
Built-in overpressure relief valve
Maximum pressure: 13 bar
Regulation from 0-8 bar (**)
Flow rate at 6 bar (ΔP1bar): 5200 Nl/min
Pressure gauge: Included
Glass capacity: 151 cm3
Mounting screws: M6x15
Mounting Form: Vertical
Working temperature: -10ºC to +50ºC
Recommended oil for the lubricating cup: ISO VG 22A CLASS ISO 3448 STANDARD
Reference standard: PED 2014/68/EU
Mounting accessories: not included

(*) On request it is possible to supply groups with a filtration degree of 5 μm

(**)Other regulation ranges on request:

0 to 2 bar
0 to 4 bar

For other sizes or references: consult.

Dimensions of the FR-L EVO Aignep Adajusa filter group

Professional use material, install in compliance with the regulations in force at the installation site.

For further information you can download the technical sheet by clicking on the "Attached Files" tab.

Catalogo FRL EVO

Download (4.94MB)
