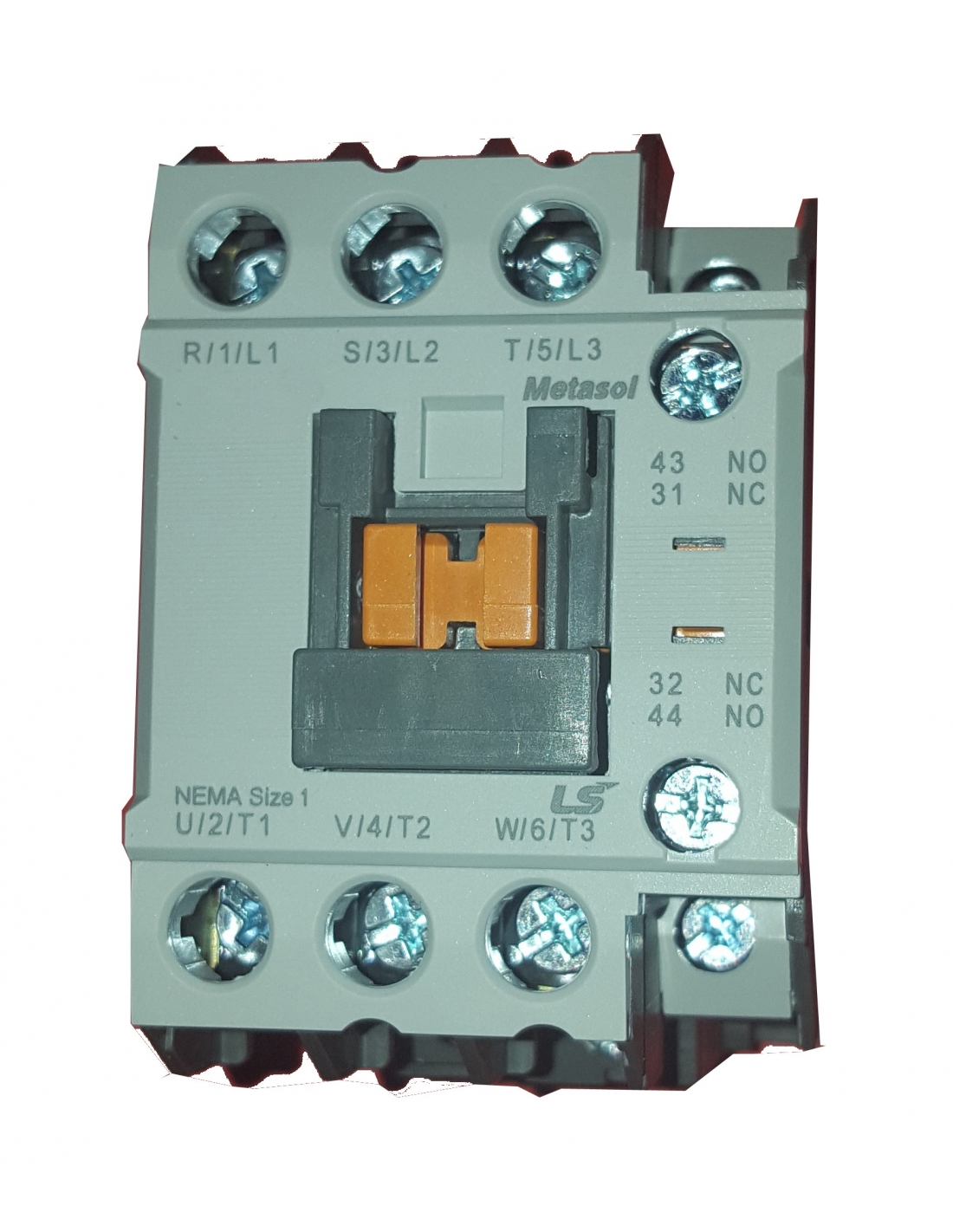

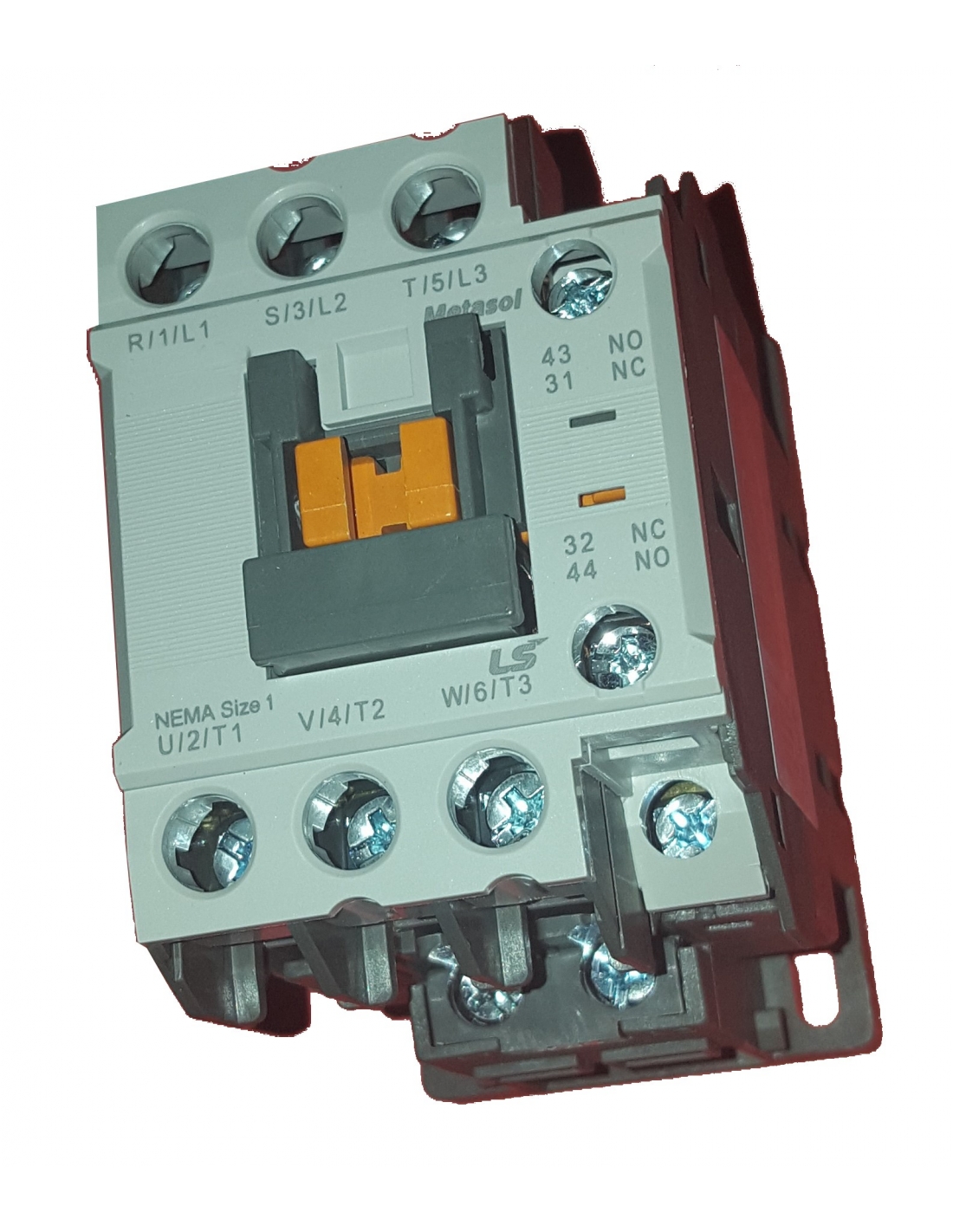

Three-phase contactor 40A coil 24Vac - LS
Three-phase contactor 40A coil 24Vac - LS
Three-phase contactor 40A coil 24Vac - LS
Three-phase contactor 40A coil 24Vac - LS

Three-phase contactor 40A coil 24Vac - LS

€68.32 Tax included

€56.46 tax excl.

Three-phase electric contactor equipped with high-capacity contacts for controlling electric motors, heating, lighting, ventilation,..., 3-pole with a current capacity of 40A category AC3 or 60A category AC1, with 24Vac coil, the contactor is equipped with two auxiliary contacts open (NO) and another two closed (NC).

Contactor reference: MC-40a AC230Vac 3P

Contactor diagram 4 auxiliary contacts

LS logo LG industrial Systems

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


Three-phase contactor (3 poles) of 40A in category AC3 or 60A in category AC1, the contactor is equipped with highly robust main contacts, suitable for demanding applications for controlling electric motors, heating, lighting, ventilation systems and for use in general. The contactor is equipped with an open (NO) and a closed (NC) auxiliary contact, located on its sides. Fixing can be done using screws or DIN rail.

Technical characteristics:

  • Manufacturer: LS (LG).
  • Contactor reference: MC-40a AC24Vac 50/60Hz 2a2b 3P
  • Maximum operating voltage: 690Vac.
  • Coil voltage: 24Vac.
  • number of contactor poles: 3.
  • Rated current for contactor in AC3: 40A.
  • Rated current for the contactor in AC1 (Ith): 60A.
  • Maximum power (kW) 380-400Vac: 18.5kW.
  • Maximum power (kW) 220-230Vac: 11kW.
  • Auxiliary Contacts : 4 lateral (2 open and 2 closed).
  • Minimum current through the auxiliary contact: DC 17V 5mA.
  • Operations per hour: 1800.
  • Mechanical durability: 12.000.000 operations.
  • Electrical durability: 2.000.000 operations.
  • Weight: 0.55 kg.
  • Dimensions: 69x83x93 mm.

Material for professional use, install in compliance with the regulations in force at the installation site.
