Anti-return valve 1/8 - Metal Work

Name: Anti-return valve 1/8 - Metal Work
Brand: Metal Work
SKU: W3601000001
Price: 4.3076 EUR
Availability: InStock

€4.31 Tax included

€3.56 tax excl.

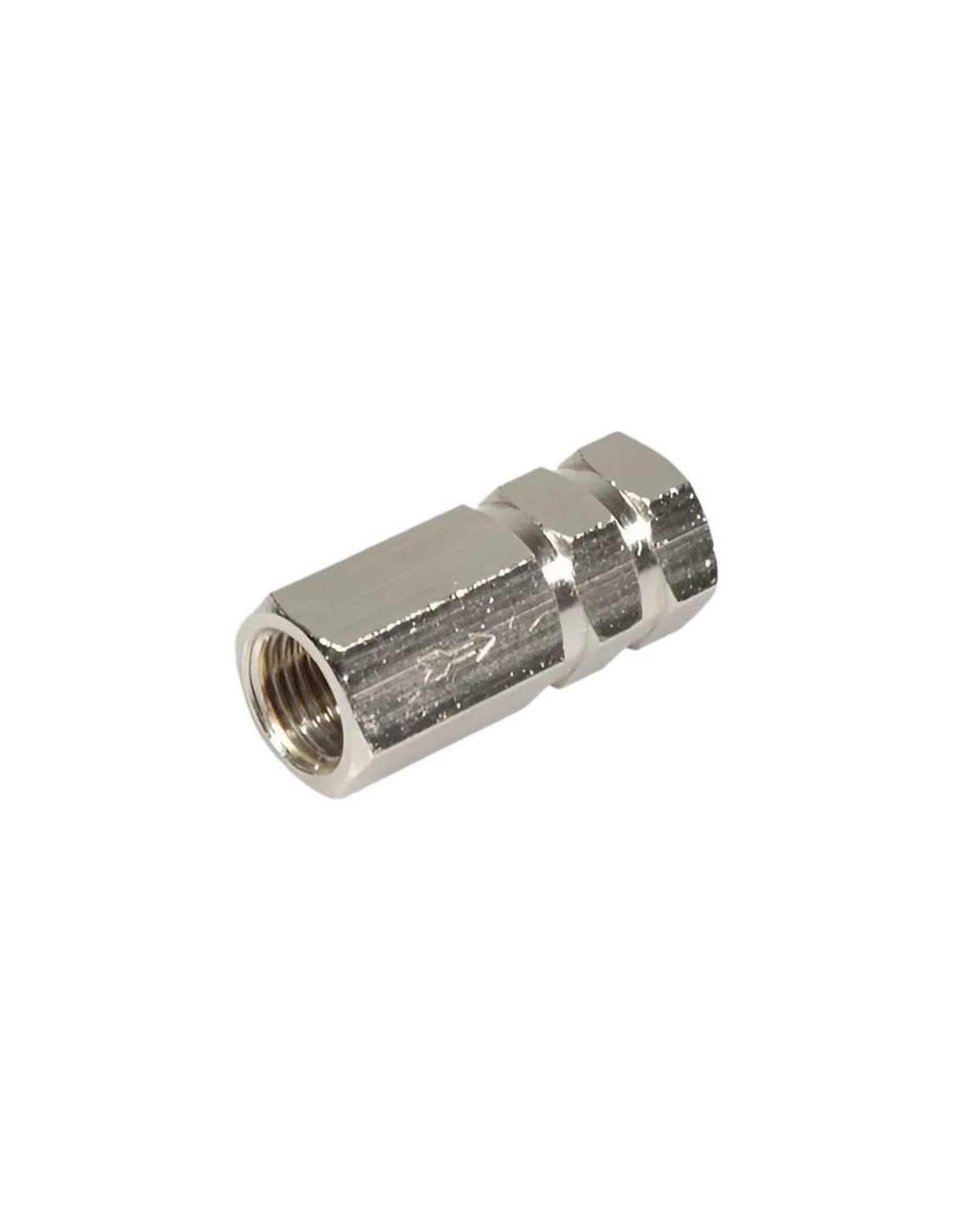

1/8" anti-return valve, metal. Allows the passage of the aíre only in one of the two directions of travel.

Made of chromed brass with NBR gaskets. Female thread on both sides.

Simbolo válvula antirretorno

Representative image for illustrative purposes, the article supplied will correspond to the indicated specifications.

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

1/8" metal anti-return valve, allows the passage of the aíre only in one of the two direction of travel.

Technical data:

Manufacturer: Metal Work.
Reference: W3601000001 Description: VNR 1/8.
Size: 1/8".
Nominal: 5.2 mm.
Nominal flow rate: 900 N/min.
Working pressure: 2 ≈ 10 bar. 0.2 ≈ 1 Mpa.
Opening pressure: 0.05 (5 KPa).
Fluid: Aíre with or without lubrication.

Material for professional use, install respecting the regulations in force in the place of installation.

Para ampliar la información puede descargar la ficha técnica pulsando sobre la pestaña "Adjuntos"
