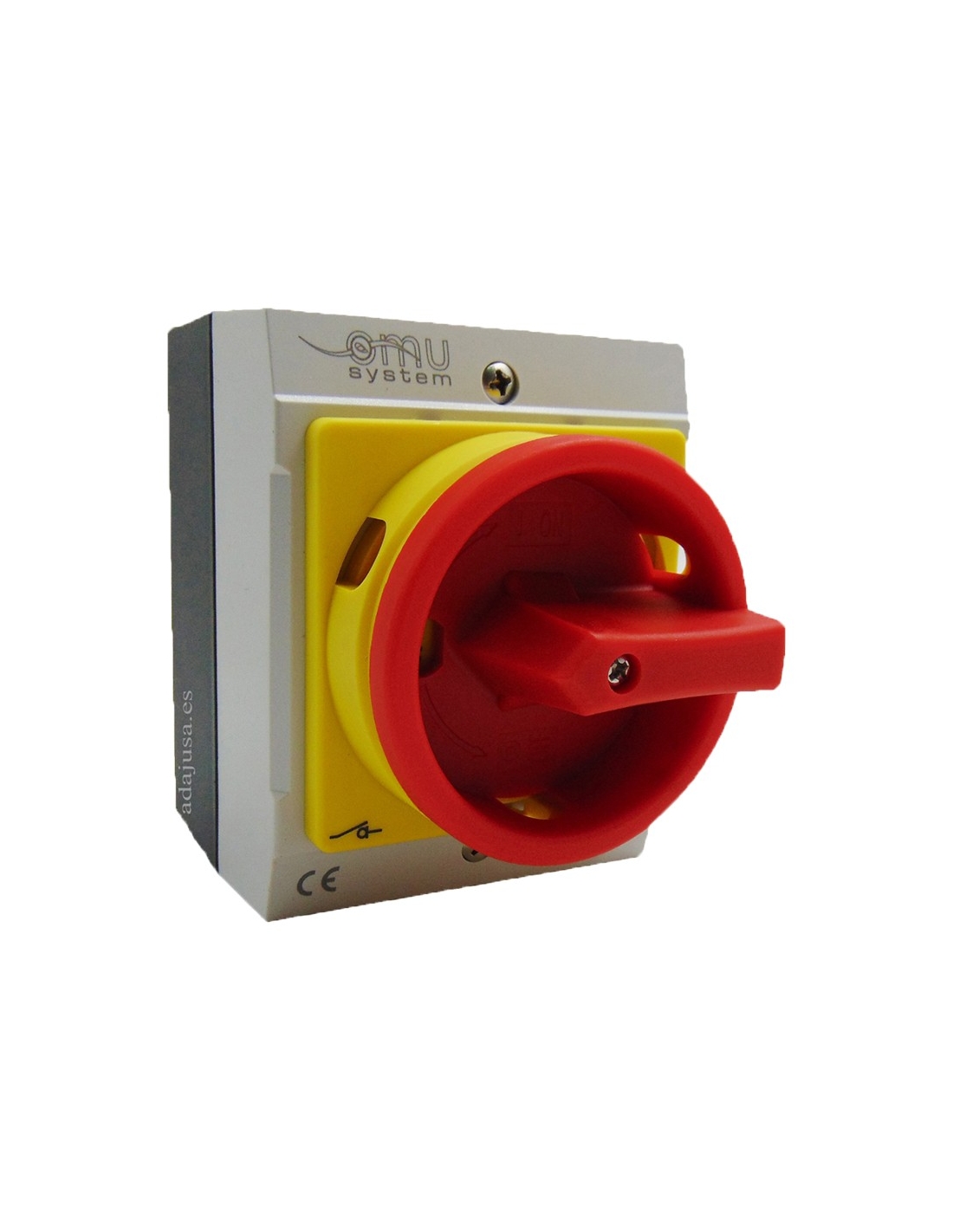

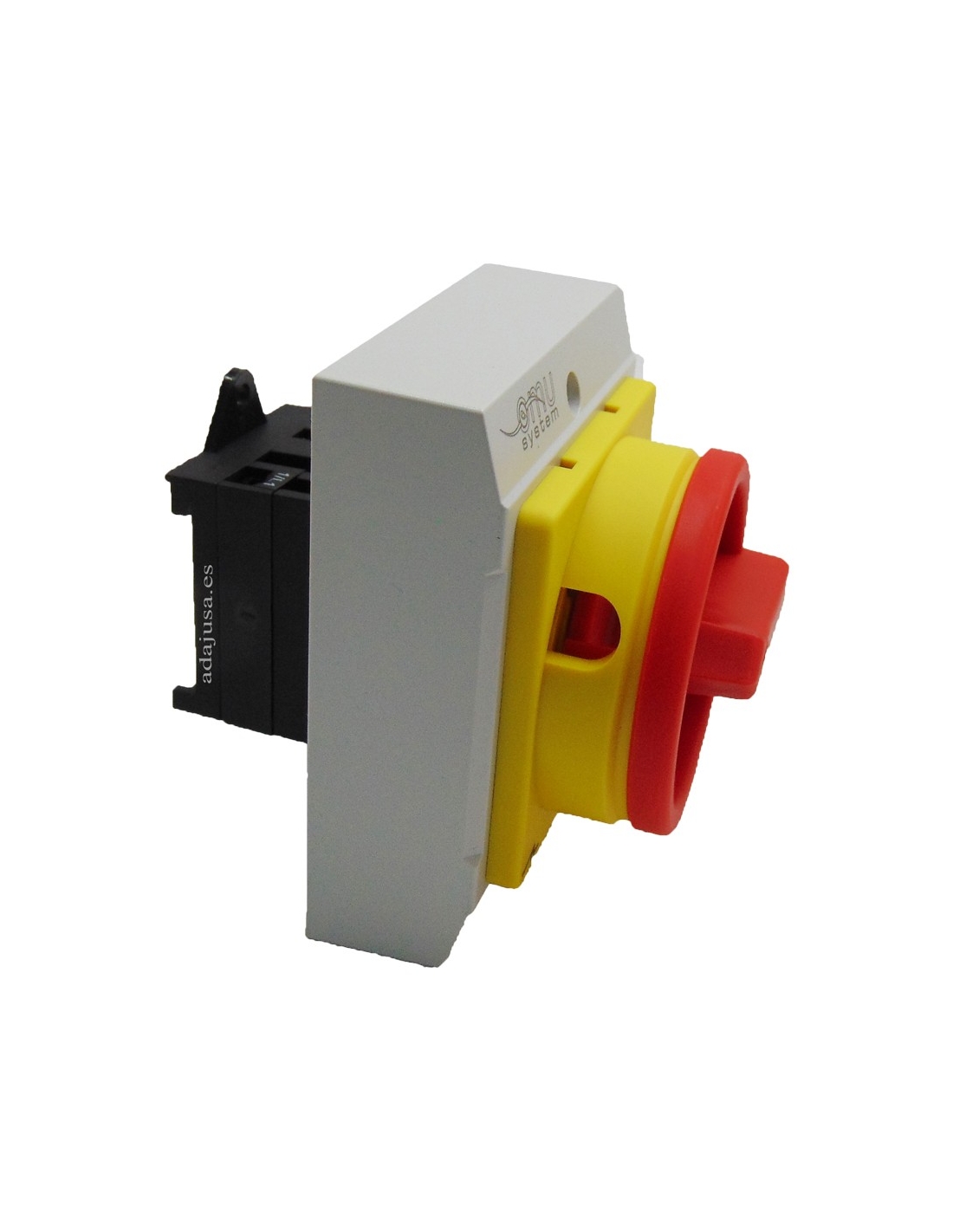

Three-phase switch box 25A (4 poles) yellow-red control

€24.78 Tax included

€20.48 tax excl.

Rotary switch, main disconnector 4 poles four-pole 25A . Mounted in polycarbonate box, with yellow-red drive lockable in "O" position. IP65 protection grade.

Suitable for interrupting electrical circuits, as well as direct starting of motors and main switches in machines.


Reference: MX-425PY



Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

Out of stock

No queries yet, leave the first!
Privacy
Shipments
Returns


Box with rotary switch, 25A four-pole 4-pole disconnector for inductive loads (electric motors) and general control. Yellow-red drive, lockable in "O" position.

Continuity terminals for ground and neutral. The box can only be opened with the switch in position "O".

The supply includes:

  • polycarbonate box
  • Three phase switch


Characteristics:

  • Manufacturer/Supplier: OMU/Mixvil
  • Reference: MX-425PY
  • Number of poles: 4
  • Charging current: 25A
  • Power: 7.5 kW
  • Locking possibility with 3 padlocks when off
  • Front protection grade: IP65
  • Dimensions: 125 x 100 x 120mm
  • Cable gland size: M20-25
  • Regulations: EN 60947-1, EN-60947-3, EN 60947-5-1, EN 60204-1





Material for professional use, install in compliance with the regulations in force at the installation site.
