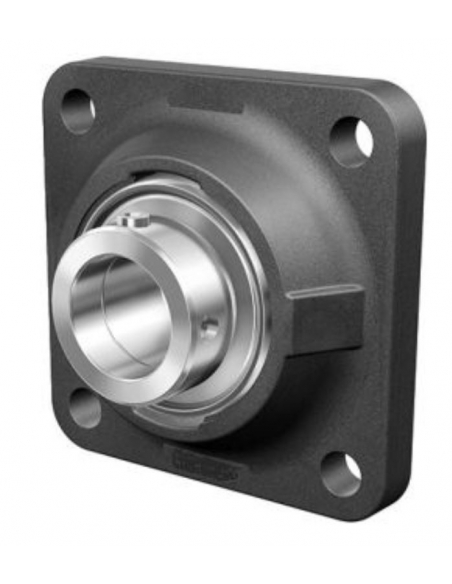

Square bracket with shaft bearing 20mm PCJY20-XL-N INA
Square bracket with shaft bearing 20mm PCJY20-XL-N INA

Square support with 20mm shaft bearing PCJY20-XL-N - INA

€32.67 Tax included

€27.00 tax excl.

Square cast iron support with PCJY20 inserted bearing for 20mm diameter shaft, self-aligning support support with ball bearing inserted with prisoners in the inner ring, sheet metal seal equipped with a nitrile rubber lip. Bearing with spherical outer rings for self-alignment and to compensate for alignment defects.



Manufacturer: INA

Reference: PCJY20-XL-N



LOGO-INA

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!


Square self-aligning support in gray cast iron with already assembled insert, PCJY20, for Ø20mm shaft.

The bearing support body in FG20 gray cast iron protected against corrosion. High load capacity.

The inserted ball bearing (insert) in steel. These bearings are grooved. Its outer rings have a spherical surface that is free to oscillate on the support track, this oscillation allows self-alignment in the support housing and compensates for any alignment defect and eliminates, as much as possible, unwanted stresses between the shaft and the support. The bearing is fixed to the shaft using two hexagonal allen screws offset by 120º. Easy assembly and disassembly.

The field of application of these supports with bearings are industrial and general applications with normal loads, weak to medium rotation speeds.

The sealing of the bearing is guaranteed by a gasket composed of a protective steel sheet plus a rubber seal. The bearing has a gasket on each side. This protection system prevents the escape of grease and any possible infiltration of contaminating agents, which is particularly indicated when there are very aggressive external agents, dust, liquids or when the machine works outdoors.

The bearings are suitable for all applications in a temperature range of -15ºC to +100º.

The supply includes (already assembled):

  • Support: GG.CJ04-N
  • Insert (bearing): GAY20-NPP-B

Main dimensions:



INA PCJY square supports dimensions

  • d: 20mm
  • L: 86mm
  • A1: 10mm
  • N: 11.5mm
  • B: 25mm
  • J: 63.5mm
  • A2: 19mm
  • Q: Rp1/8
  • A: 29mm
  • U: 37mm
  • V: 68mm
  • Cr(N): 12800
  • C₀ᵣ (N): 6600
  • Weight: 0.5Kg.

For other references or models consult.

Material for professional use, install in compliance with the regulations in force at the installation site.
