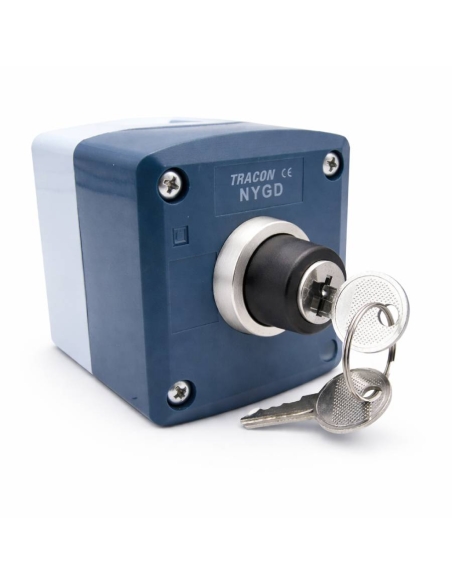

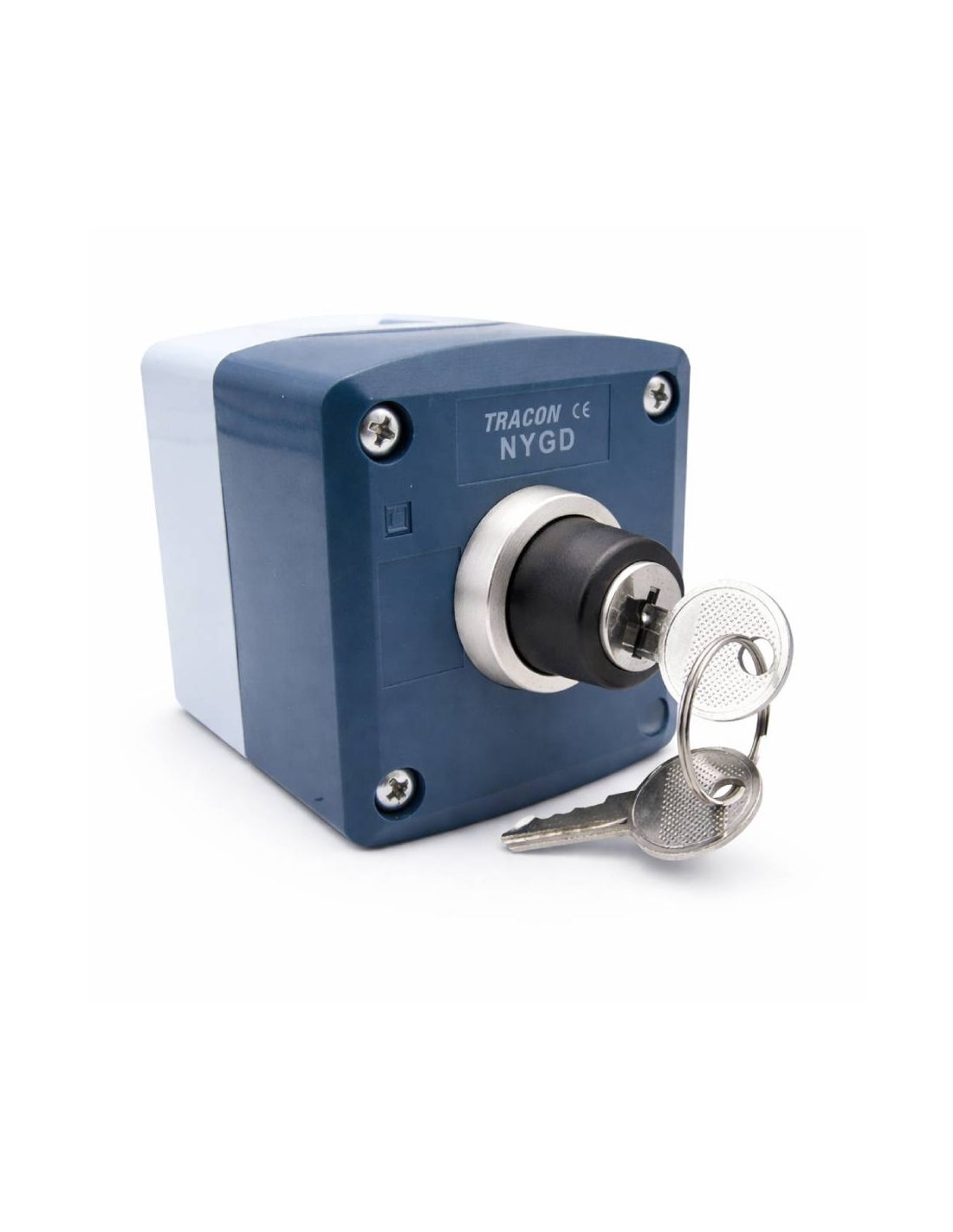

Button box with 2-position key selector switch with return NYK3-K24| ADAJUSA | price
Button box with 2-position key selector switch with return NYK3-K24| ADAJUSA | price

Box with 2-position key selector with full return - NYG Series

€11.96 Tax included

9.97 tax excl.

PK-NYK3-K24

Box with 2-position key-operated selector switch with full return. Two-position plastic selector with key-operated return with one contact open and one contact closed (NO + NC), case made of high resistance plastic in grey color and front in dark grey color.


Part number: PK-NYK3-K24


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns


Box with two-position key selector with full return. Two-position plastic key-operated selector switch with return with one contact open and one contact closed (NO + NC), the key can be inserted or extracted in both positions. Box made of high resistance gray plastic and dark gray front. Degree of protection IP65 from the front side.

The dimensions of the box are: 73x71x65,5mm



The supply does not include the assembly, the box and the push button are supplied loose.



Features:

  • Manufacturer/Supplier: Tracon
  • Part number: PK-NYK3-K24
  • Pushbutton type: 2 position selector with return
  • Push button color: Black
  • Inscription: None
  • Contacts1 open (NO), 1 closed (1NC)
  • Box in light grey/dark grey plastic
  • Bore diameter: 22mm
  • Rated working current (AC 1, 230V): 6A
  • Rated working current (AC 15, 230V): 3A
  • Rated working current (DC 13, 250V): 0.27A
  • Rated insulation voltage: 660V
  • Working temperature: -25ºC to +40ºC
  • Degree of protection: IP65 (from front side)
  • Standards: EN 60947-1; EN 60947-5-1










Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

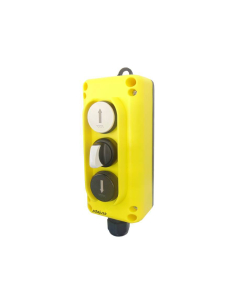

TLP3 type button. D - Giovenzana adajusa
Lifting elements - crane bridges - hostas

Keypad TLP3 type D - Giovenzana

Giovenzana Internacional B.V.
GI-TLP3.D
€32.38 (€26.98 tax excl.)
Push button box mounted for elevator pit and inspection, escalators and general use. Wall or bracket mounting. Complies with the specific regulations for elevators and machines, allows to satisfy all safety requirements. The supply includes: Box for 3 elements Up push button 1NA Down push button 1NO. Drive selector 1 NO. Cable gland M20 Part...

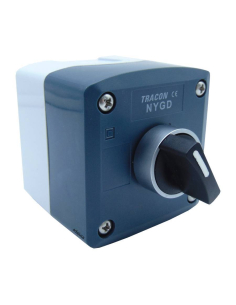

Button box with 2-position selector NYBD21KSTT| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with 2-position metal selector complete - NYG Series

TRACON
PK-NYBD21KSTT
€9.30 (€7.75 tax excl.)
Box with complete 2-position selector. Short lever metal selector with 2 maintained positions and 1 open contact (NO), box made of high-resistance gray plastic and dark gray front. IP44 protection grade.Reference: NYBD21KSTT Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.
Button box with 3-position key selector switch with return NYK3-K41| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with 3-position key selector with full return - NYG Series

TRACON
PK-NYK3-K34
€11.82 (€9.85 tax excl.)
Box with 3-position key-operated selector switch with full return. Three-position plastic selector with key-operated return with one contact open and one contact closed (NO + NC), case made of high resistance plastic in grey color and front in dark grey color. Part number: PK-NYK3-K34 Representative image for illustrative purposes, the item supplied...
Button box with 2-position Off-On key selector NYBG41KKT| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with metal selector key 2 positions Off-On complete - NYG Series

TRACON
PK-NYBG41KKT
€10.48 (€8.73 tax excl.)
Box with 2-position selector activated by a complete key. Metal selector with 2 maintained position key and 1 open contact (NO), box made of high-resistance gray plastic and dark gray front. IP44 protection grade.The key can be inserted or removed in both positions.Reference: NYBG41KKT Representative image for illustrative purposes, the item supplied...
Button box with 3-position key selector switch Off NYBG53KKT| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with metal selector key 3 positions complete - NYG Series

TRACON
PK-NYBG53KKT
€10.84 (€9.03 tax excl.)
Box with 3-position selector operated by complete key. Metal selector switch with 3-position key maintained and 2 open contacts (2NO), case made of high resistance plastic in grey color and front in dark grey color. Degree of protection IP44.The key can be inserted or extracted in any of the three positions. Part number: NYBG53KKT Representative image...
PLN07 Giovenzana series 7-element adajusa
Lifting elements - crane bridges - hostas

Emergency button PLN07 bridge crane or hoste - Giovenzana

Giovenzana Internacional B.V.
GI-PLN07
€119.60 (€99.67 tax excl.)
Hanging button mounted for bridge crane or hoist, and use in general. It has an emergency stop button Ø30 with interlocking, and pushbuttons for up and down, behind and front and left right. It complies with the specific regulations for this type of elements that satisfy all safety requirements. Made in Europe. The supply includes: Box for 7 elements...
Button box with mushroom stop button Ø60 NYGBR42PT| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with metal stop mushroom push button Ø60 complete - NYG Series

TRACON
PK-NYGBR42PT
€10.07 (€8.39 tax excl.)
Box with non- interlocking mushroom stop button, diameter 60mm. Red metal pushbutton with a closed contact (1NC) and a box made of high-resistance gray plastic with a dark gray front. IP44 protection grade.Reference: NYGBR42PT Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.
Pendant control station emergency stop and 2 Harmony push buttons XAC SCHNEIDER | ADAJUSA | price Pendant control station emergency stop and 2 Harmony push buttons XAC SCHNEIDER | ADAJUSA | price 2
Lifting elements - crane bridges - hostas

Pendant emergency stop push Button box and 2 push buttons - SCHNEIDER

Schneider
XACA2913
€110.62 (€92.18 tax excl.)
Button box equipped with an emergency stop button and up and down buttons providing 2 speeds (low and high) for each movement. Pendant Box ideal for elevators and crane applications for the control of two-speed motors, made of yellow polypropylene with stepped rubber cable entry.In compliance with the safety requirements of IEC standards. Reference:...
Button box with start-stop push button NYG3-D2| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with complete ON-OFF push button - NYG Series

TRACON
PK-NYG3-D2
€10.87 (€9.06 tax excl.)
Box with full on-off push button. Double plastic ON-OFF plastic push button with ON-OFF inscription with one open and one closed contact (1NO + NC). Box made of high resistance plastic in grey color and front in dark grey color. Reference: PK-NYG3-D2 Representative image for illustrative purposes, the item supplied will correspond to the...
Button box with Ø40 mushroom stop button with interlocking NYG542P40T| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with metal mushroom stop button with interlocking complete - NYG Series

TRACON
PK-NYG542P40T
€10.01 (€8.34 tax excl.)
Box with 40mm diameter mushroom stop button with complete interlocking . Red metal pushbutton with a closed contact (1NC) and a box made of high-resistance gray plastic with a dark gray front. IP44 protection grade.Reference: NYG542P40T Representative image for illustrative purposes, the item supplied will correspond to the indicated...
5-element Ergos HP05 series button. D2 Giovenzana adajusa
Lifting elements - crane bridges - hostas

HP05 emergency button. D2 crane bridge or hosticch - Giovenzana

Giovenzana Internacional B.V.
GI-HP05.D2
€77.41 (€64.51 tax excl.)
Hanging button mounted for bridge crane or hoist, and use in general. It has an emergency stop button Ø30 with interlocking, and pushbuttons for up and down (double speed) and left right. It complies with the specific regulations for this type of elements that satisfy all safety requirements. Made in Europe. The supply includes: Box for 5 elements...
View

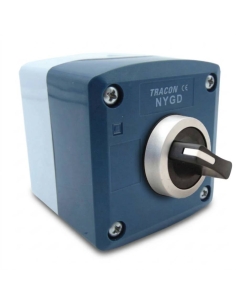

Button box with 2-stage selector with return NYK3-S24BK| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with 2-position selector with full return - NYG Series

TRACON
PK-NYK3-S24BK
€9.97 (€8.31 tax excl.)
Box with 2-position selector with full return. Plastic selector with two positions with return with one contact open and one contact closed (NO + NC), case made of high resistance plastic in grey color and front in dark grey color. Part number: PK-NYK3-S24BK Representative image for illustrative purposes, the item supplied will correspond to the...

Customers who bought this product also bought:

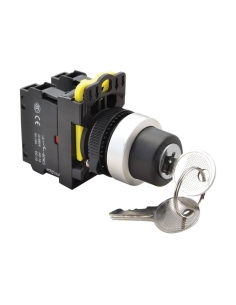

2-position key selector with 1NO+1NC return switch, 22mm NYK3-K24 | ADAJUSA | price
