Screw connection closed contact - EMS

€1.34 Tax included

€1.11 tax excl.

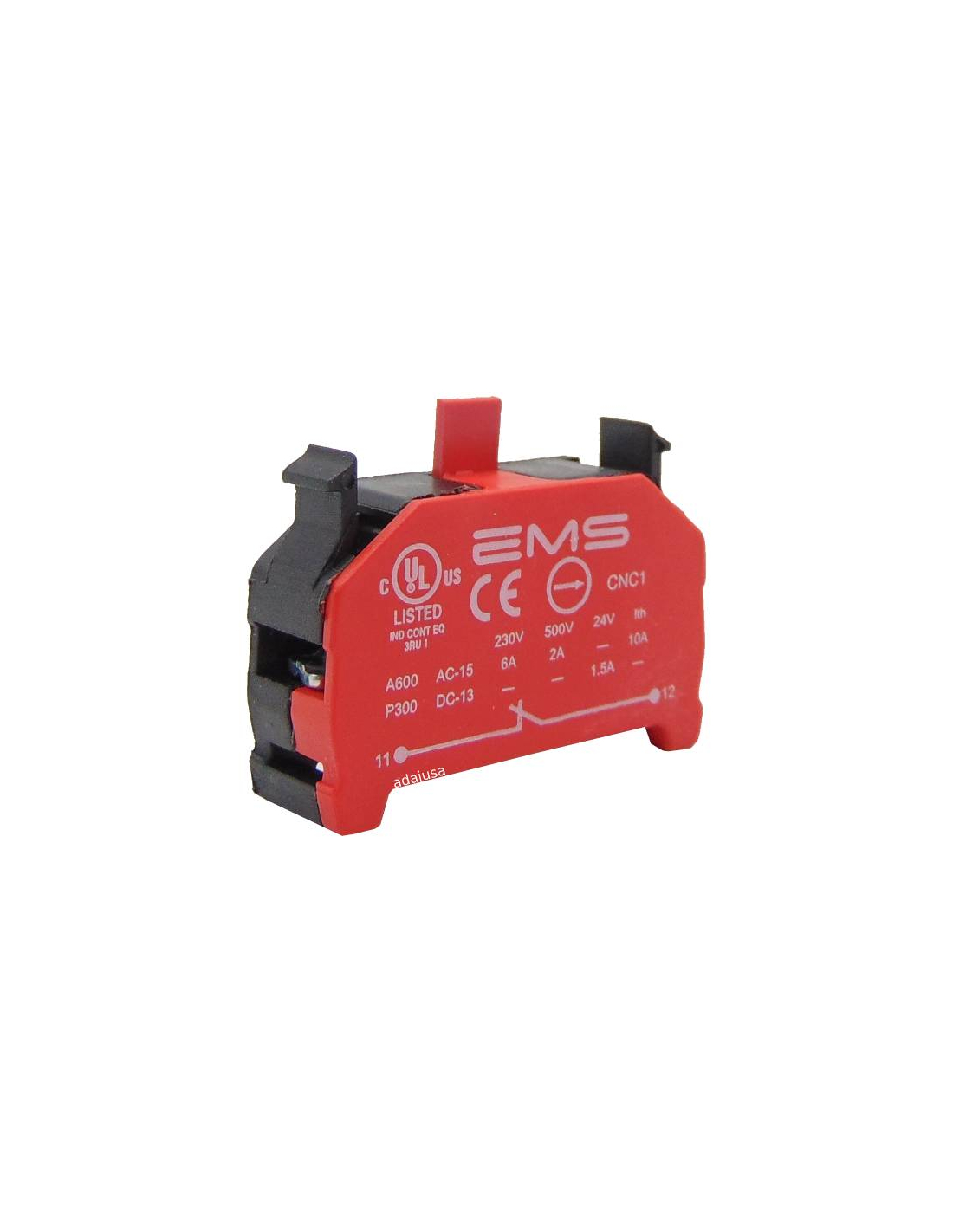

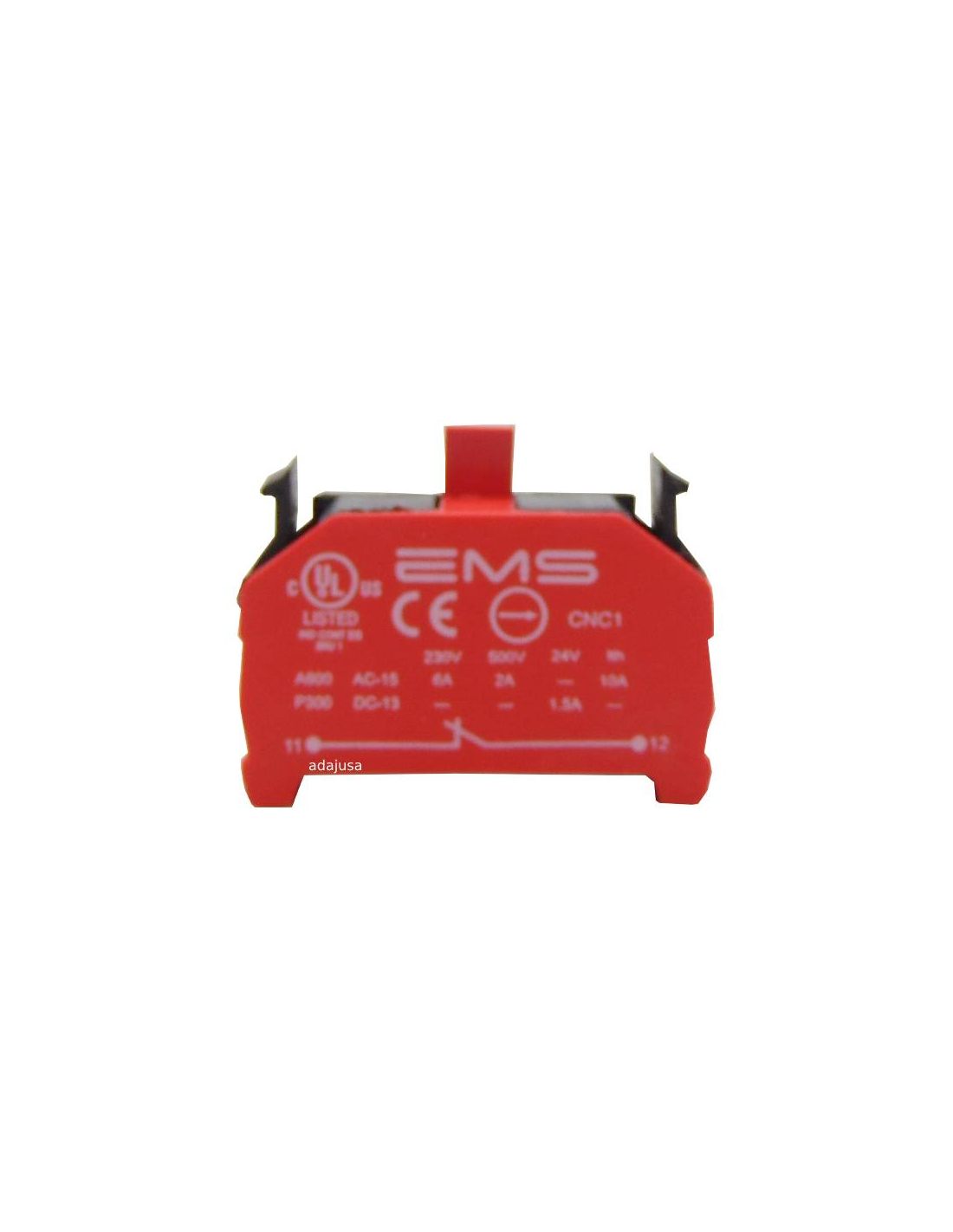

Closed contact block (NC) for installation in EMS pushbuttons. Connection by screw, red color.

Product manufactured in Europe


Part number: CNC1





Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Closed contact block (NC) for EMS control units. Screw connection, easy installation and strong clamping on the control element. Product manufactured in Europe.



Characteristics:

  • Manufacturer: EMS
  • Part number: CNC1
  • Maximum rated voltage: 230Vac
  • Thermal current: 10A
  • Rated current at 24Vac: 1,5A
  • Rated current at 120Vac: 6A
  • Rated current at 230Vac: 6A
  • Frequency: 50-60Hz
  • Rated voltage from isolation: 600Vac
  • Resistance of isolation at 500Vdc: 50Mohms
  • Contact resistance: 20Mohms
  • Contact electrical life: 500,000 cycles
  • Terminals: Suitable for flexible or solid conductors from 2x1mm2 to 2x2.5mm2
  • Contact material: AgNi
  • Degree of protection: IP65 on panel / IP20 on Nema terminals
  • Usage category: AC-15, DC-13
  • Standard: IEC-60947-5-1


Note: This contact block is only valid for elements manufactured by EMS



Contact arrangement:



Dimensions:





Mounting:





Material for professional use, install in compliance with the regulations in force at the place of installation
