Two open contact blocks (2 NO) with clamping collar for mounting on 22mm diameter HARMONY XB4 metal series pushbutton and selector heads.
This contact block allows quick and easy replacement and configuration of pushbuttons and selectors. It is easily installed or replaced on Harmony XB4 series units by clip and connects to control circuits via simple screw terminals. It protects operators from inadvertent contact with energized circuits thanks to its IP20 protection rating. Its high resistance reduces maintenance and installation damage. Features a clear color scheme. Screw connection terminals ensure high resistance to vibrations, making it suitable for installation in machines exposed to high impacts.

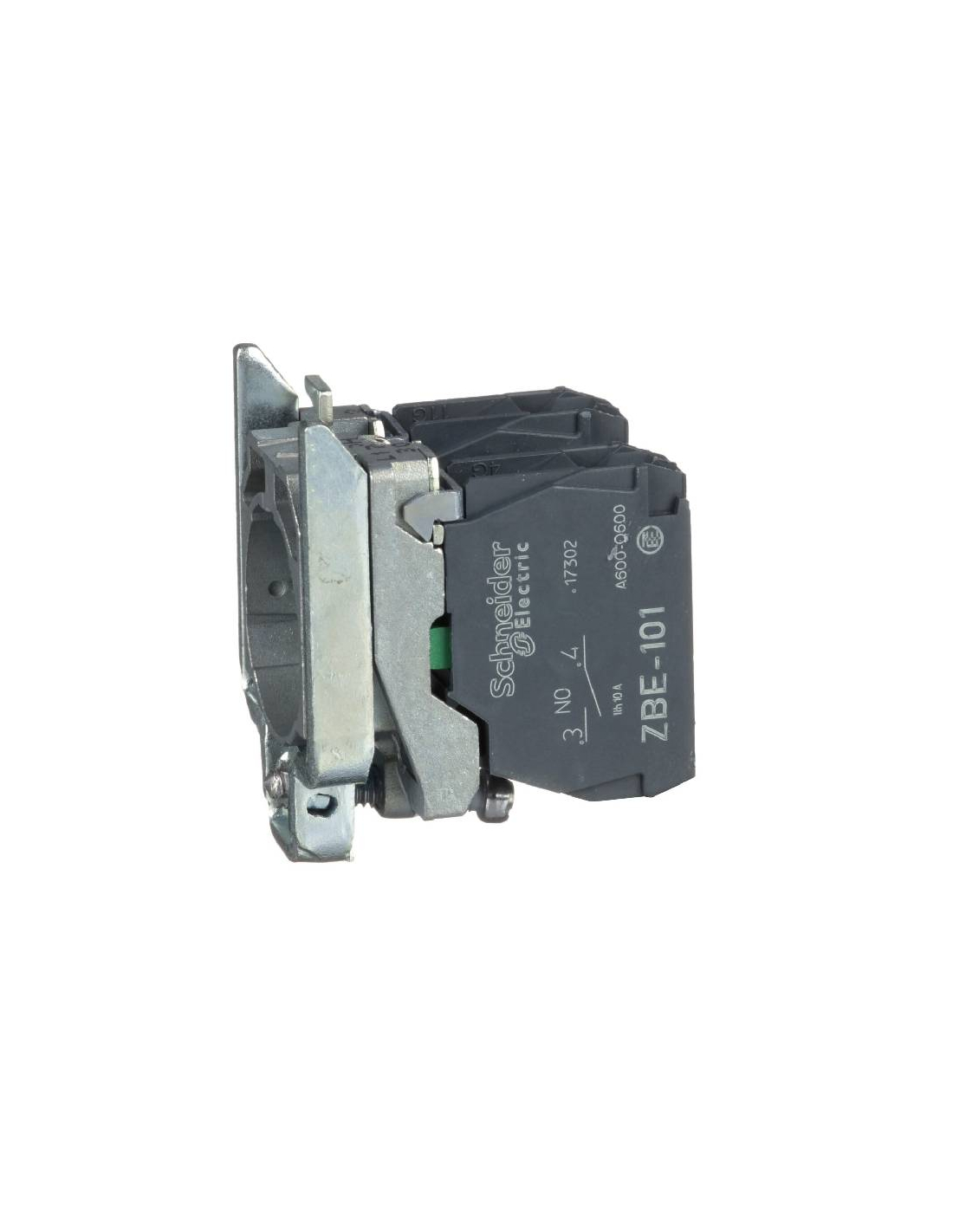

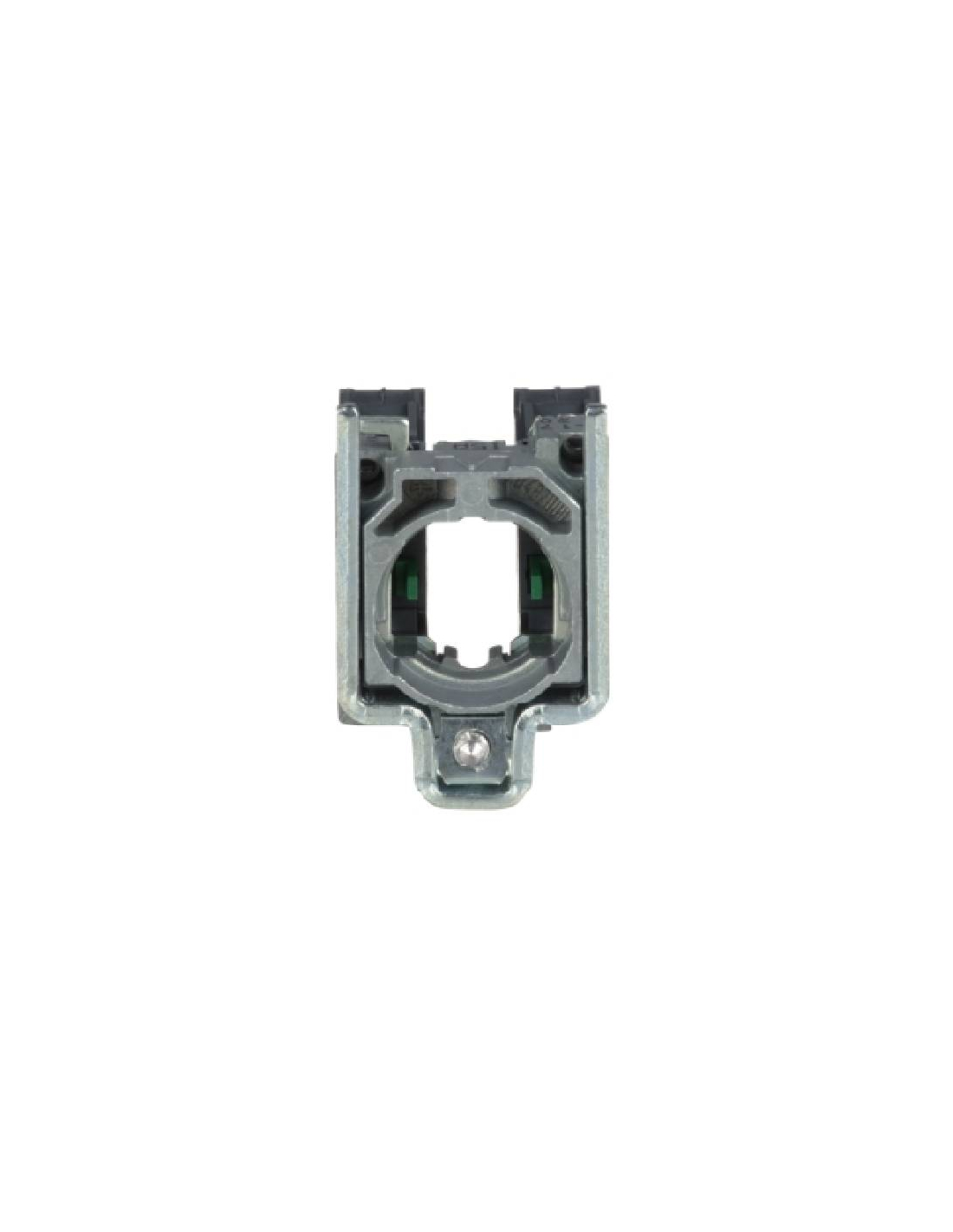

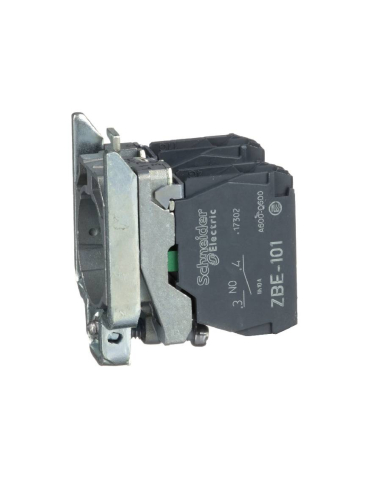

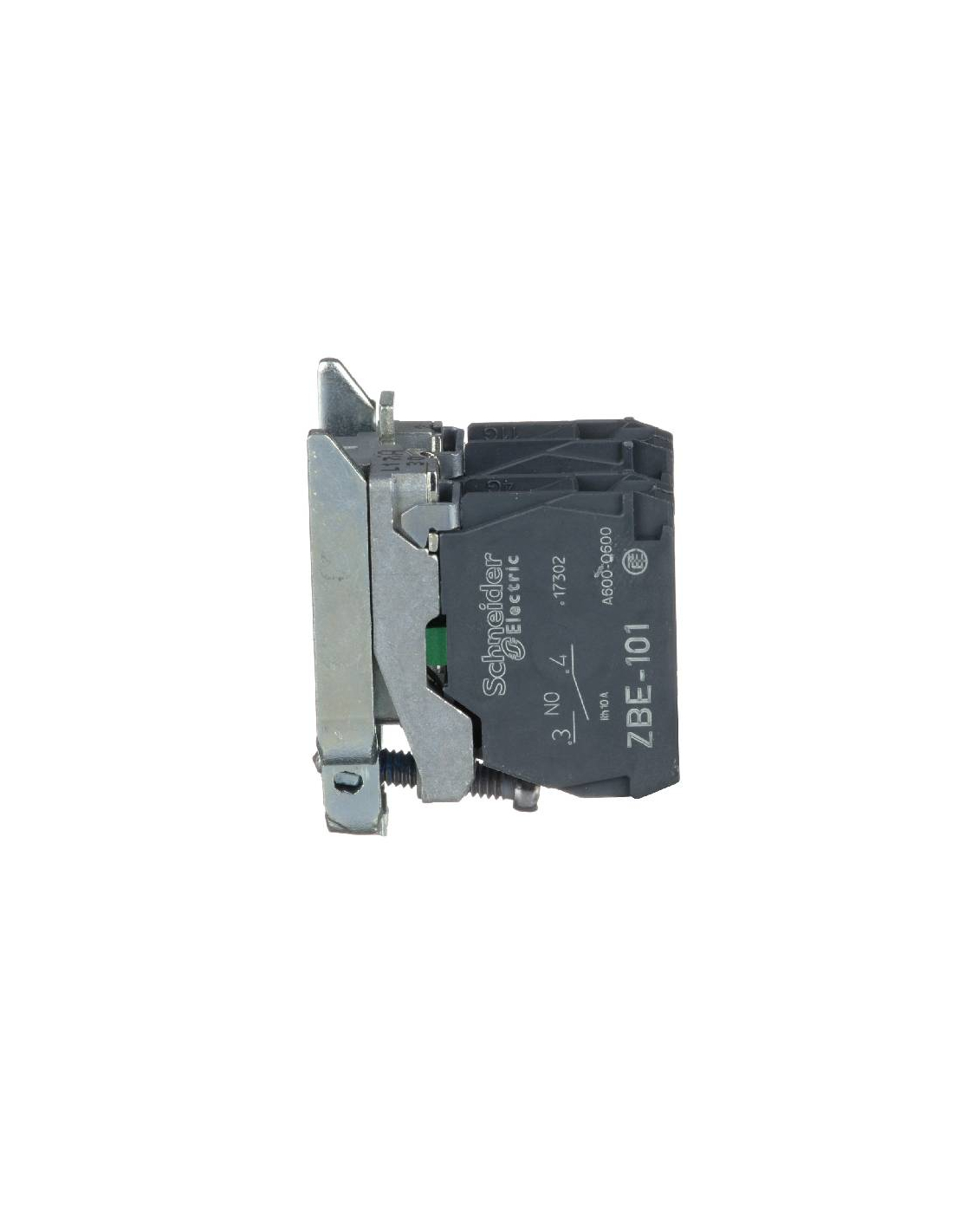

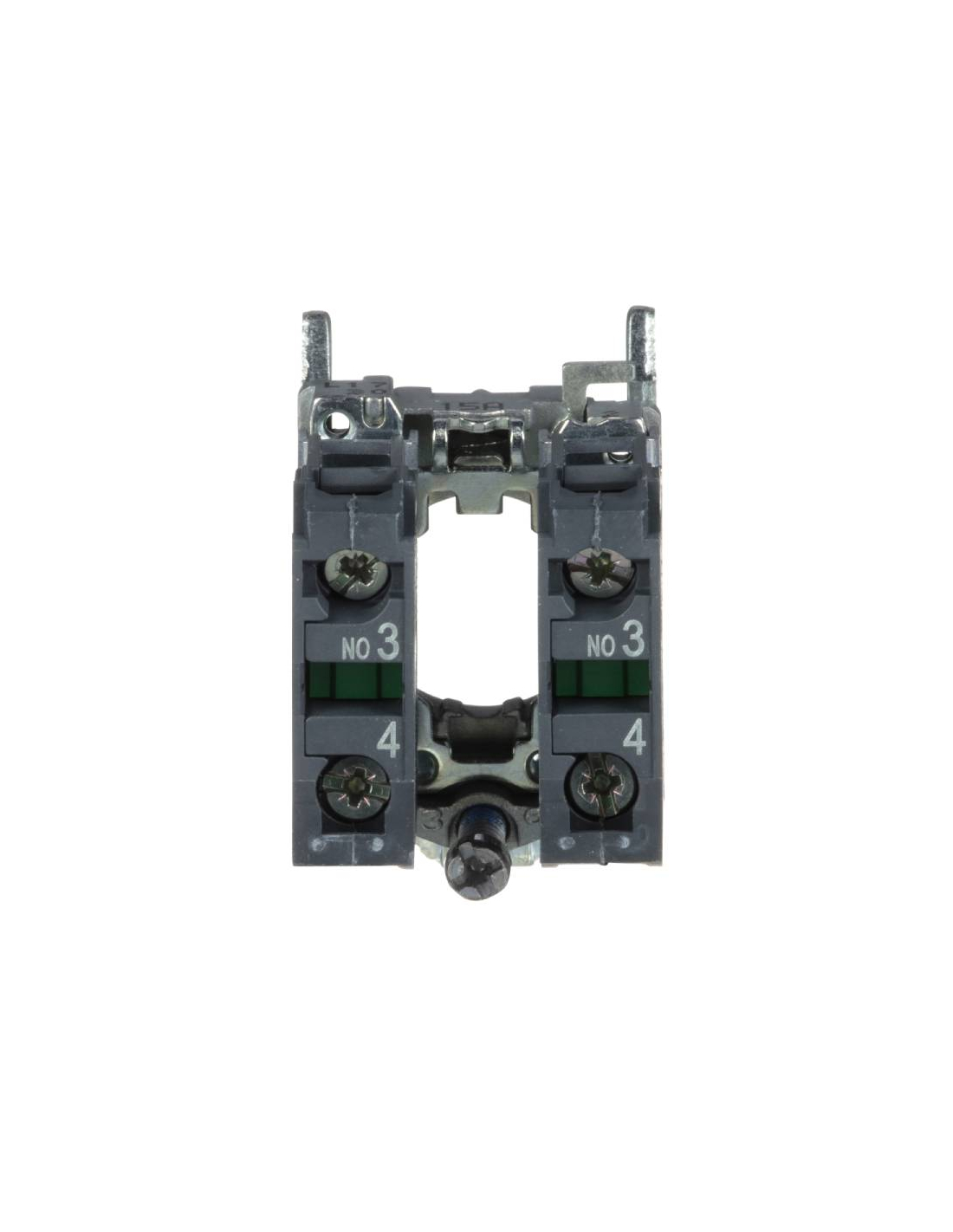

The delivery includes the complete body: 2 open contact blocks (ZBE101) and plastic base or fixing ring (ZB4BZ009) that allows connecting the XB4 heads with the contact blocks.
Features:
- Manufacturer: SCHNEIDER
- Part number: ZB4BZ103
- Type of contact: Open (2NO)
- Contact operation: Slow breaking
- Short-circuit protection: 10A Cartridge fuse type gG
- Conventional thermal current: 10A
- Rated insulation voltage: 600V
- Peak voltage withstand: 6kV
- Rated operating current: 3A at 240V, AC-15 / 6A at 120V, AC-15 / 0,1A at 600V, DC-13 / 0,27A at 250V, DC-13 / 0,55A at 125V, DC-13 / 1,2A at 600V, AC-15
- Mechanical durability: 5000000 cycles
- Operating temperature: -40...70C
- Degrees of protection: IP20
- Terminals: Screw
- Weight: 0.062kg
Dimensions:
For further information, you can download the data sheet by clicking on the "Attachments" tab.
Material for professional use, it must be installed by qualified personnel in compliance with the regulations in force at the place of installation.
