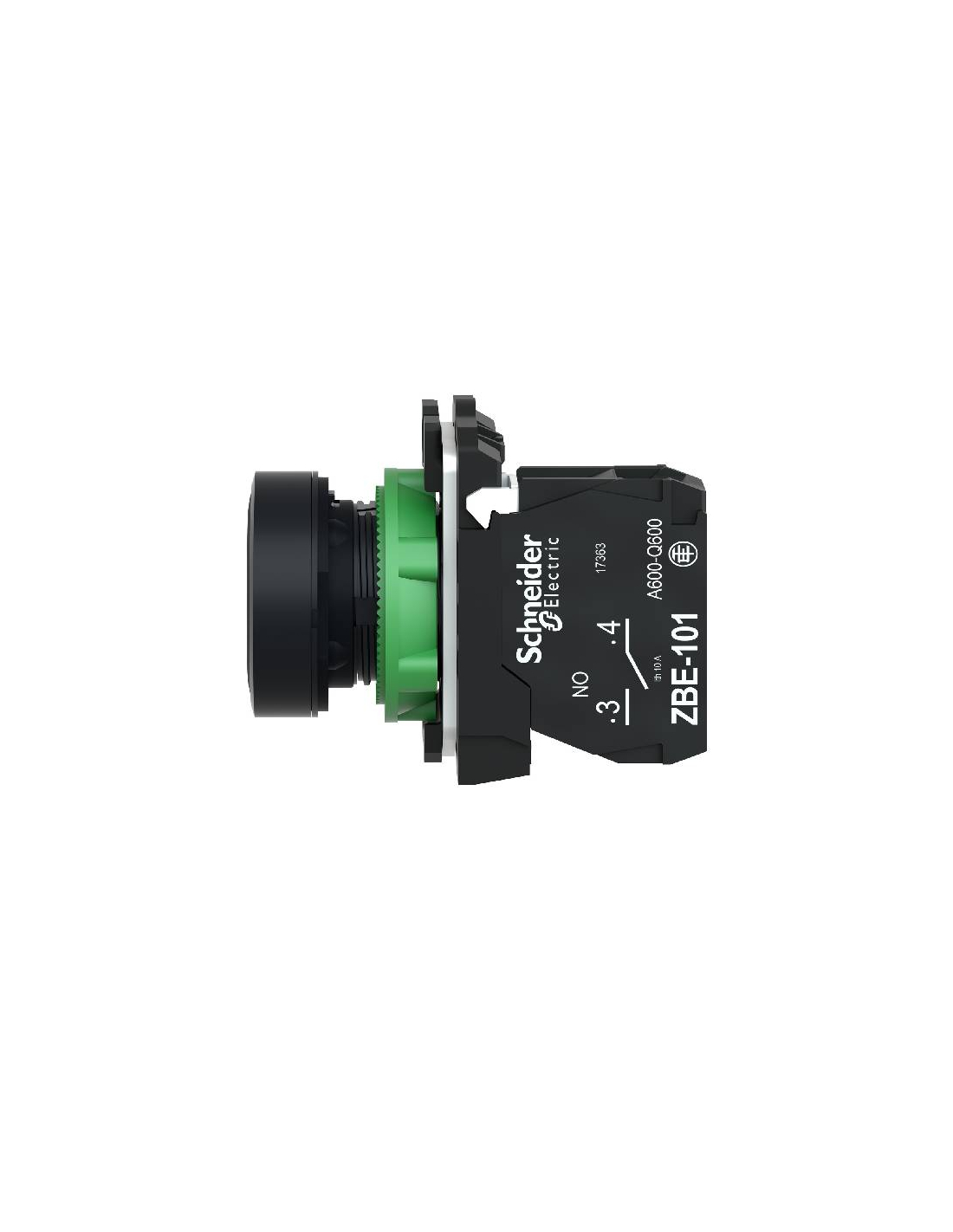

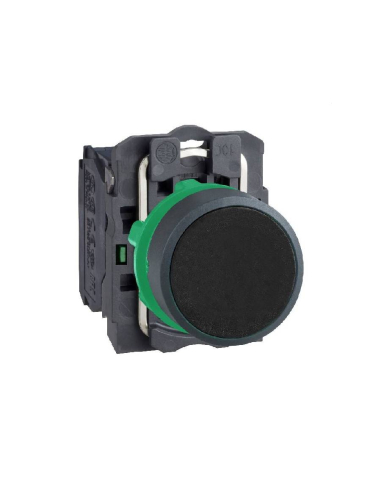

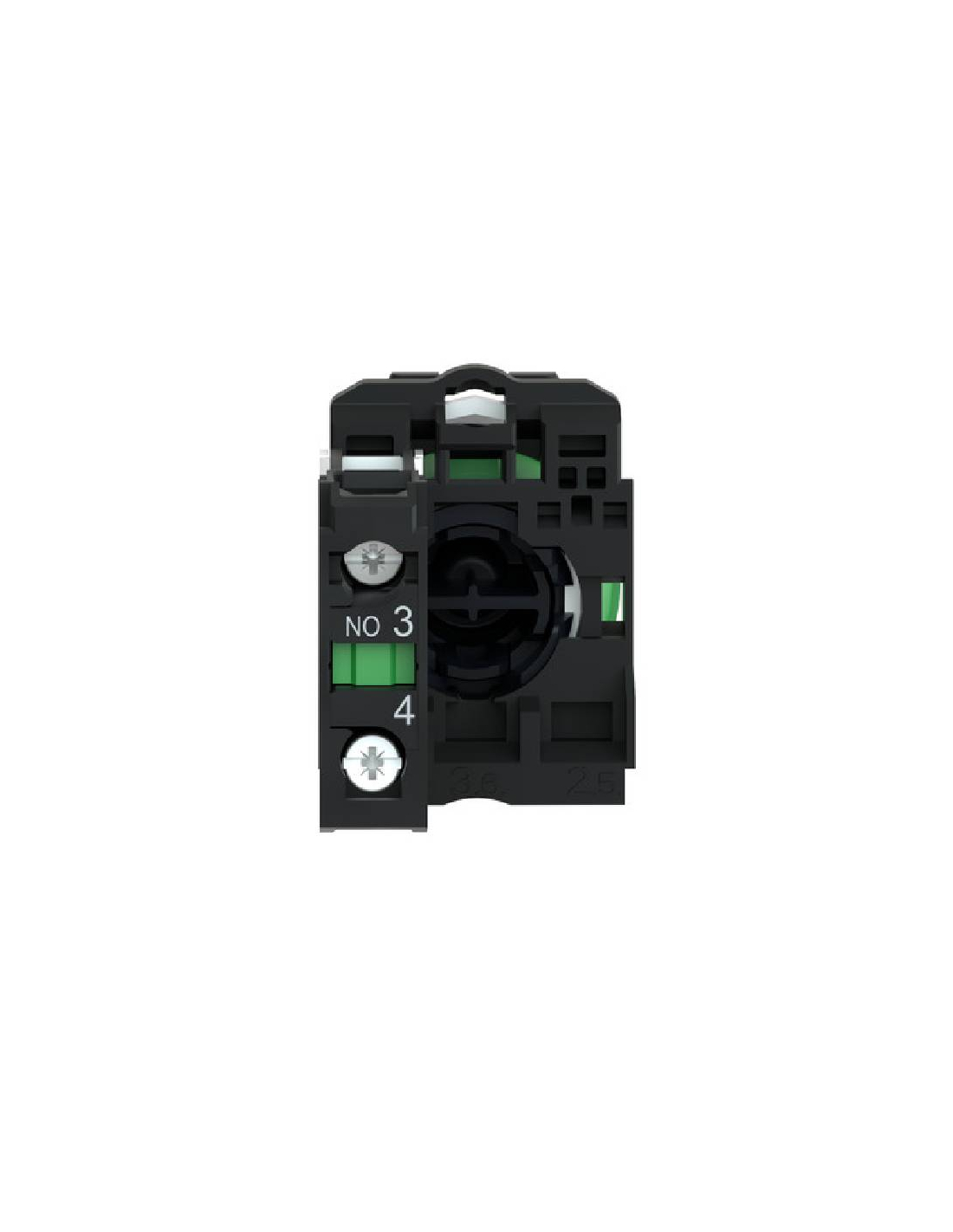

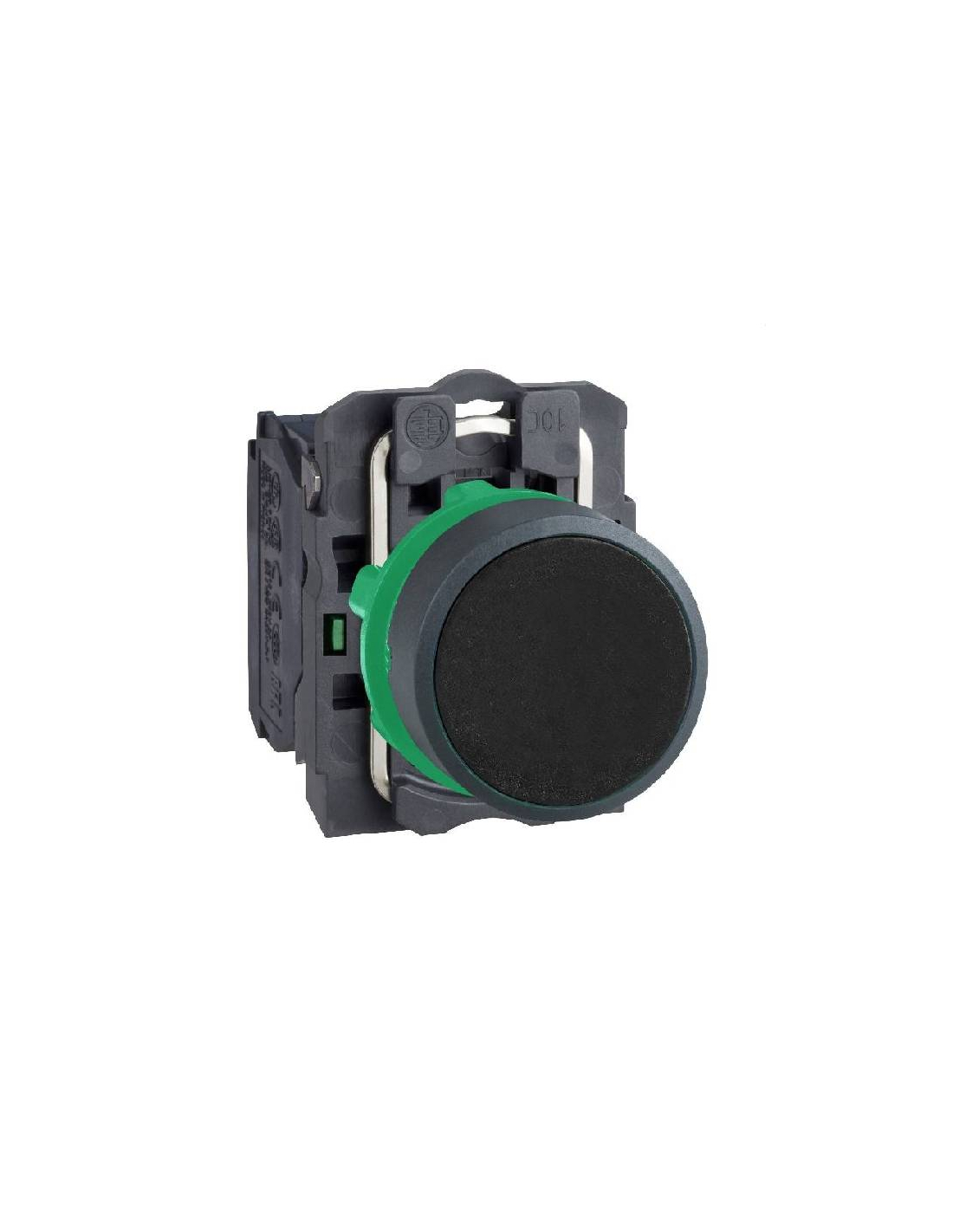

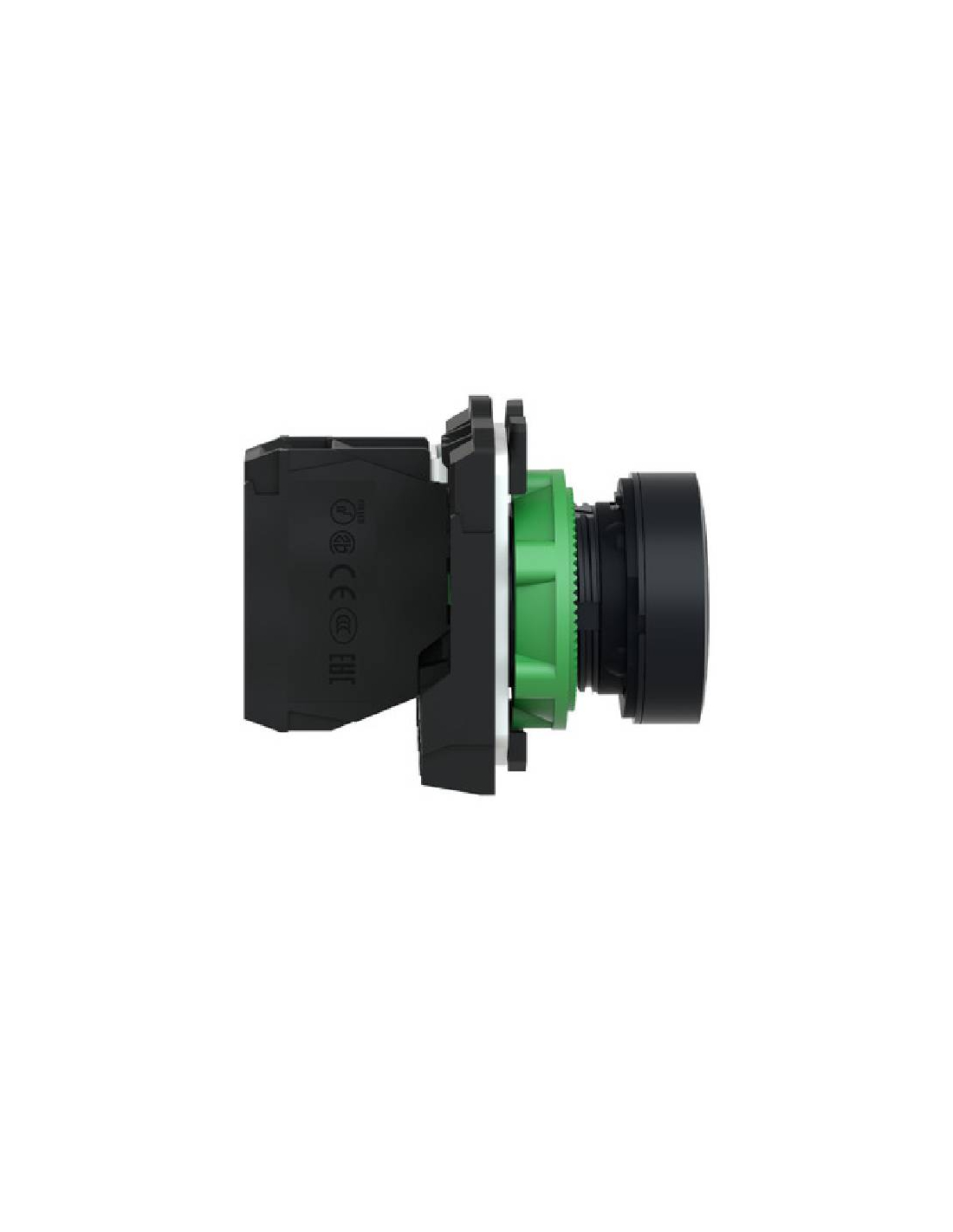

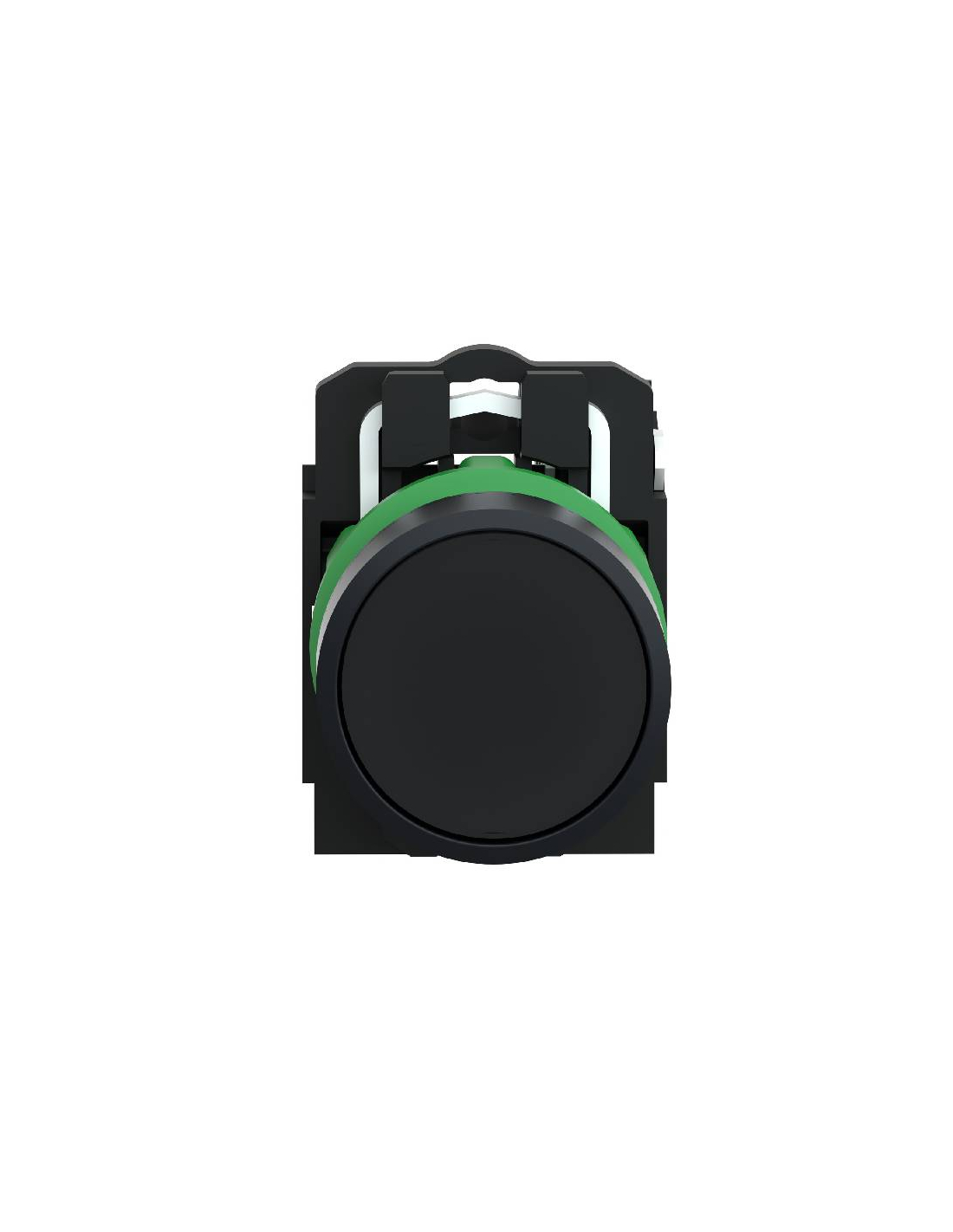

Push button black open contact (NO) Harmony XB5 - SCHNEIDER

Black flush plastic push button with one open contact (NO), diameter 22 mm. Based on a spring-loaded pulse/return mechanism, it features an ergonomic interface for machine and process control. It is easily installed in standard 22 mm diameter knockouts and is connected via simple screw terminals.

Its design is highly resistant to shock, dust, water and vibration thanks to its IP66 degree of protection, making it suitable for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good chemical resistance or double electrical isolation.

The supply includes the complete pushbutton with an open contact. Additional contacts can be added

Characteristics:

• Manufacturer: SCHNEIDER
• Ref. No.: XB5AA21
• HARMONY XB5 SERIES
• Operator profile: Flush black, without marking
• Operator type: Spring return
• Contact1 NO
• Contact operation: Slow break
• Push button diameter: 22mm
• Mounting diameter: 22.5mm
• Short-circuit protection: 10A Cartridge fuse type gG
• Conventional thermal current: 10A
• Rated insulation voltage: 600V
• Surge withstand voltage: 6kV
• Rated operating current: 3A at 240V, AC-15 / 6A at 120V, AC-15 / 0.1A at 600V, DC-13 / 0.27A at 250V, DC-13 / 0.55A at 125V, DC-13 / 1.2A at 600V, AC-15
• Bezel material: plastic
• Contact material: Ag/Ni
• Electrical durability: 10000000 cycles
• Mechanical durability: 10000000 cycles
• Operating temperature: -40...70C
• IP degree of protection: IP66
• IK protection degree: IK03

e: clamping thickness: from 1 to 6 mm
(1) Additional row of contacts or double contact

For further information, you can download the data sheet by clicking on the "Attachments" tab.

Material for professional use, it must be installed by qualified personnel in compliance with the regulations in force at the place of installation.
