M50 threaded fitting for flexible spiral tube diameter 46.2mm
M50 threaded fitting for flexible spiral tube diameter 46.2mm

M50 threaded fitting for flexible spiral tube diameter 46.2mm

€2.13 Tax included

€1.76 tax excl.

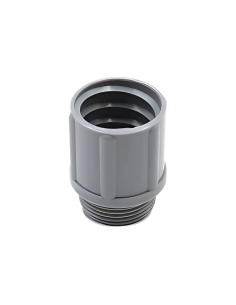

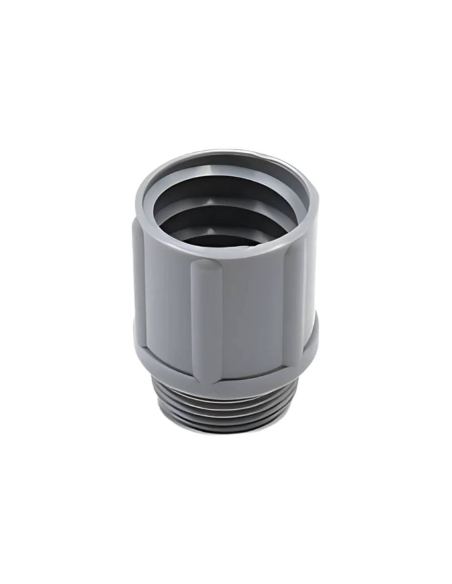

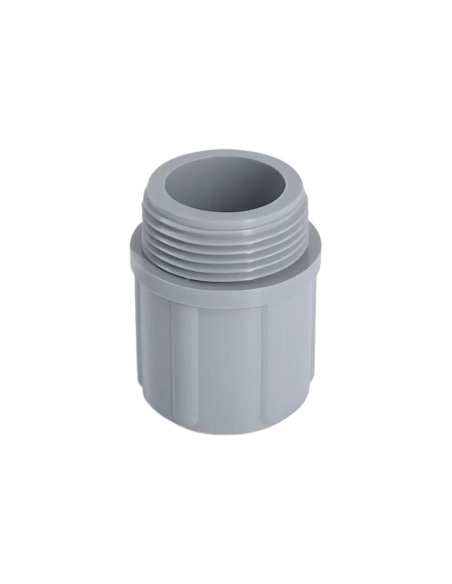

Fitting with M50 thread, made of halogen-free polyamide PA6 in dark gray color (RAL 7001). Fitting with internal thread for coupling to a spiral flexible tube with an external diameter of 46.2mm (PG36). IP54 protection grade.

Recommended fitting for coupling to Electroflex-SP flexible PVC pipe.


Reference: 240.5036.0


Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!


Threaded fitting measuring M50, made of halogen-free polyamide PA6 in dark gray color (RAL 7001). Fitting designed with an internal thread for coupling to a flexible spiral PVC tube with an external diameter of 46.2mm (PG36), guaranteeing a safe and airtight connection with the tube.

These fittings have excellent resistance to bleaches, acids and oils; In case of fire they do not emit toxic fumes. IP54 protection grade.

These fittings are recommended for coupling to Electroflex-SP flexible PVC pipe.


Note: Locknut not included in the supply, it must be purchased separately.


Technical characteristics:

  • Manufacturer/Supplier: Gaestopas
  • Reference: 240.5036.0
  • Thread: M50 x 1.5
  • Color: Dark gray (RAL 7001)
  • Material: Halogen-free PA6 polyamide
  • Temperature range: -20ºC to +80ºC
  • Dust/water protection degree: IP54
  • Certificates and regulations: CE, EN 60423:2008











Material for professional use, install in compliance with the regulations in force at the installation site.
