Safety On-Off push button with 230V coil

€14.01 Tax included

€11.58 tax excl.

Electromagnetic safety pushbutton with undervoltage coil, run-stop function. Used for the control of single-phase industrial machinery, the coil allows the disconnection in case of power cuts or failures, thus protecting the machinery and avoiding the automatic restart when the power supply is restored.


Part number: SSTM-02



Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Electromagnetic safety switch with undervoltage coil, start-stop function. The coil allows the disconnection in case of power cuts or failures, thus protecting the machinery and avoiding the automatic restart when the power supply is re-established.

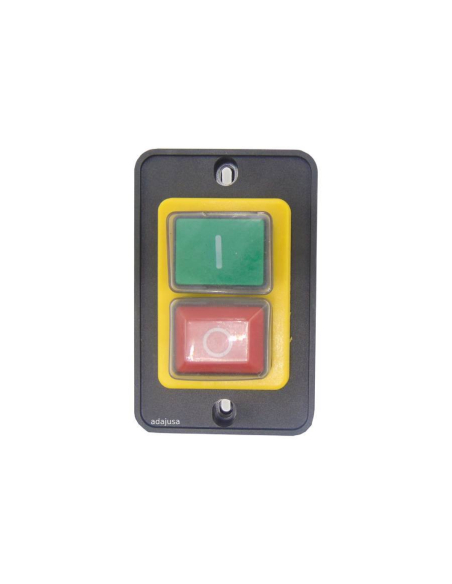

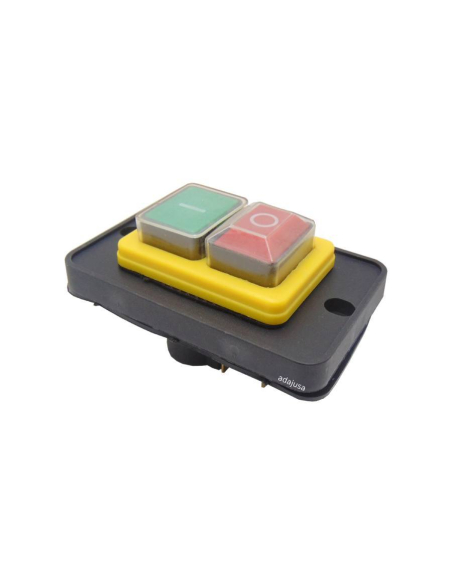

Green and red flush start-stop pushbutton with I - O inscription, incorporating a waterproof cover ideal for use in environments with a certain degree of dust or dirt. Incorporates mounting frame for easy and convenient installation.


Ideal for safe switching of machinery, motors, single-phase machine tools especially in industrial environments, since the restart of the same is only possible by manual operation of the button, thus avoiding accidental and unwanted starts.

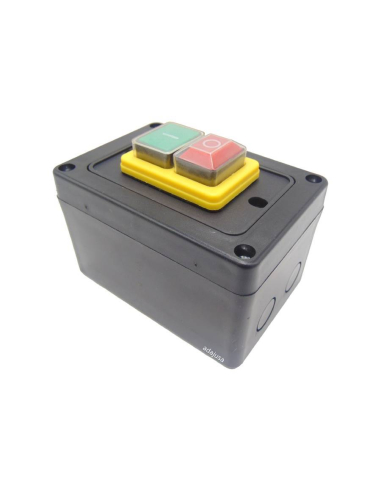

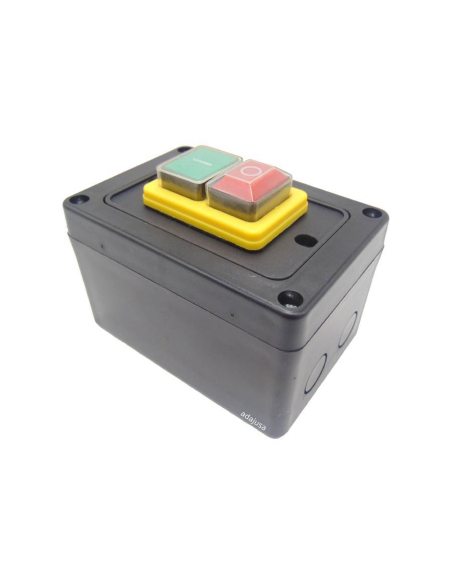

Note: Only the pushbutton with the frame is included in the scope of delivery. The mounting box is not included and must be purchased separately (reference SSTM-BOX)


Technical Characteristics:
  • Manufacturer/Supplier: Tracon
  • Part number: SSTM-02
  • Rated voltage: 230Vac
  • Frequency: 50/60Hz
  • Rated current: 12A
  • Actuation: Push button
  • Number of pins: 4
  • Operating Temperature: -25ºC to +80ºC
  • Relative humidity: 95% RH
  • Mounting type: Surface mounted
  • Mounting: By screws
  • Quick connect terminals: 6,3x0,8mm
  • Degree of protection: IP54


Dimensions:





Material for professional use, install in compliance with the regulations in force at the place of installation
