Single-phase concrete mixer motor 2HP 1.5Kw 1500 rpm 230Vac

Name: Single-phase concrete mixer motor 2HP 1.5Kw 1500 rpm 230Vac
Brand: Generico-GAR
SKU: 993MOT-200MH
Price: 242.1 EUR
Availability: OutOfStock

€242.10 Tax included

€201.75 tax excl.

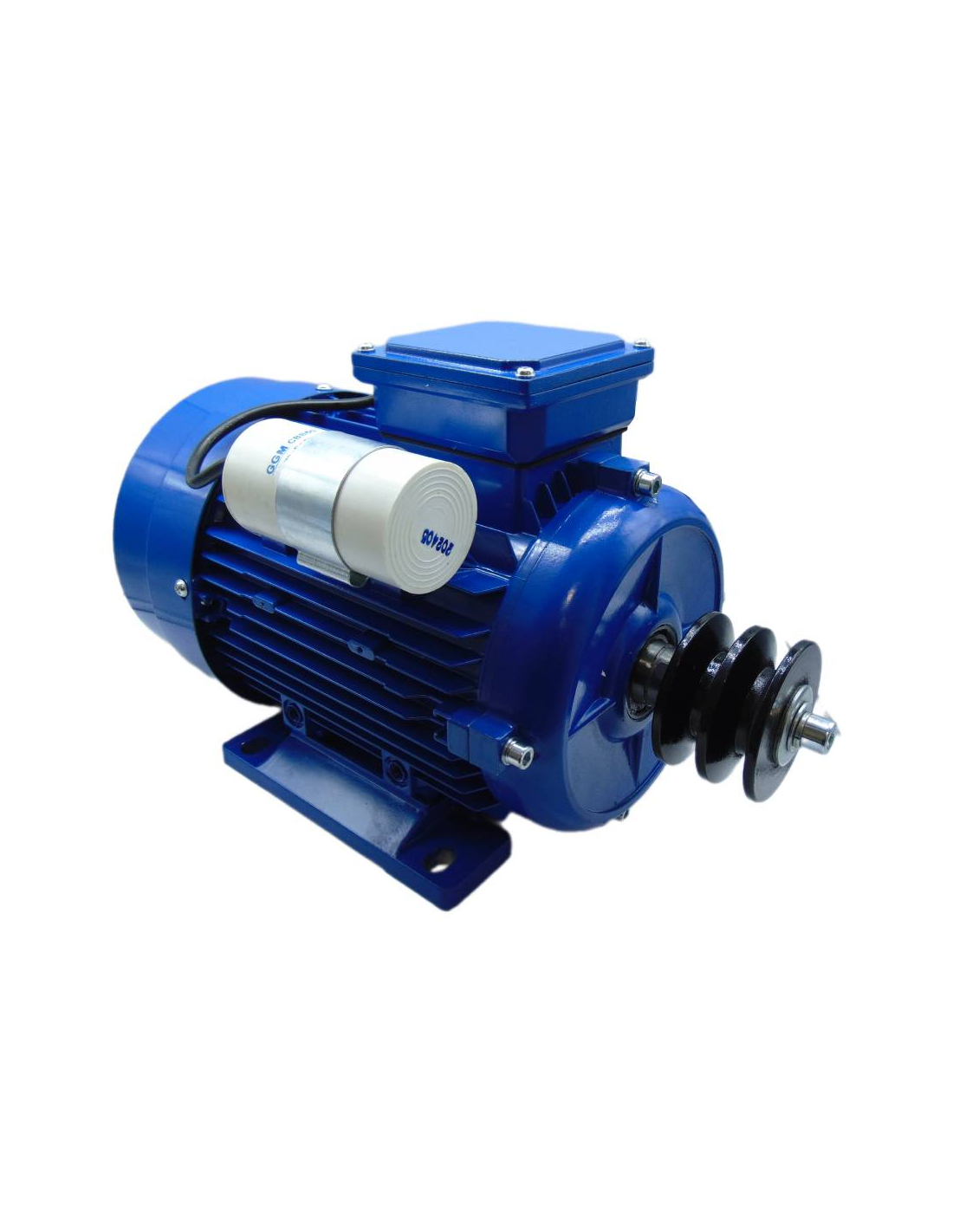

Single-phase 2HP 1.5Kw 1500rpm 230Vac concrete mixer motor, with type 2a pulley (Ø58mm), switch and power cable with Schuko plug.

Valid for most models on the market.

The supply includes:

2CV 1500 single-phase motor
Pulley
Switch
Cable with plug

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Out of stock

No queries yet, leave the first!

Privacy

Shipments

Returns

Single-phase 2HP 1.5Kw 1500rpm 230Vac concrete mixer motor, includes type 2a pulley (Ø58mm), switch in the terminal box and power cable with Schuko plug.

Valid for most models on the market. Possibility of changing the direction of rotation of the motor by accessing the motor terminals.

The supply includes:

2CV 1.5Kw 1400 rpm single-phase 230Vac motor
Pulley Type 2a (Ø58)
Switch
Cable with schuko type plug

Technical characteristics:

Voltage: Single-phase 230Vac
Power: 2HP (1.5Kw)
Revolutions: 1400 rpm
Construction form: B3 Legs
Size: 90LA
Isolation : Class F
Protection: IP44
Pulley: Type 2a (Ø58mm)
Power cable included

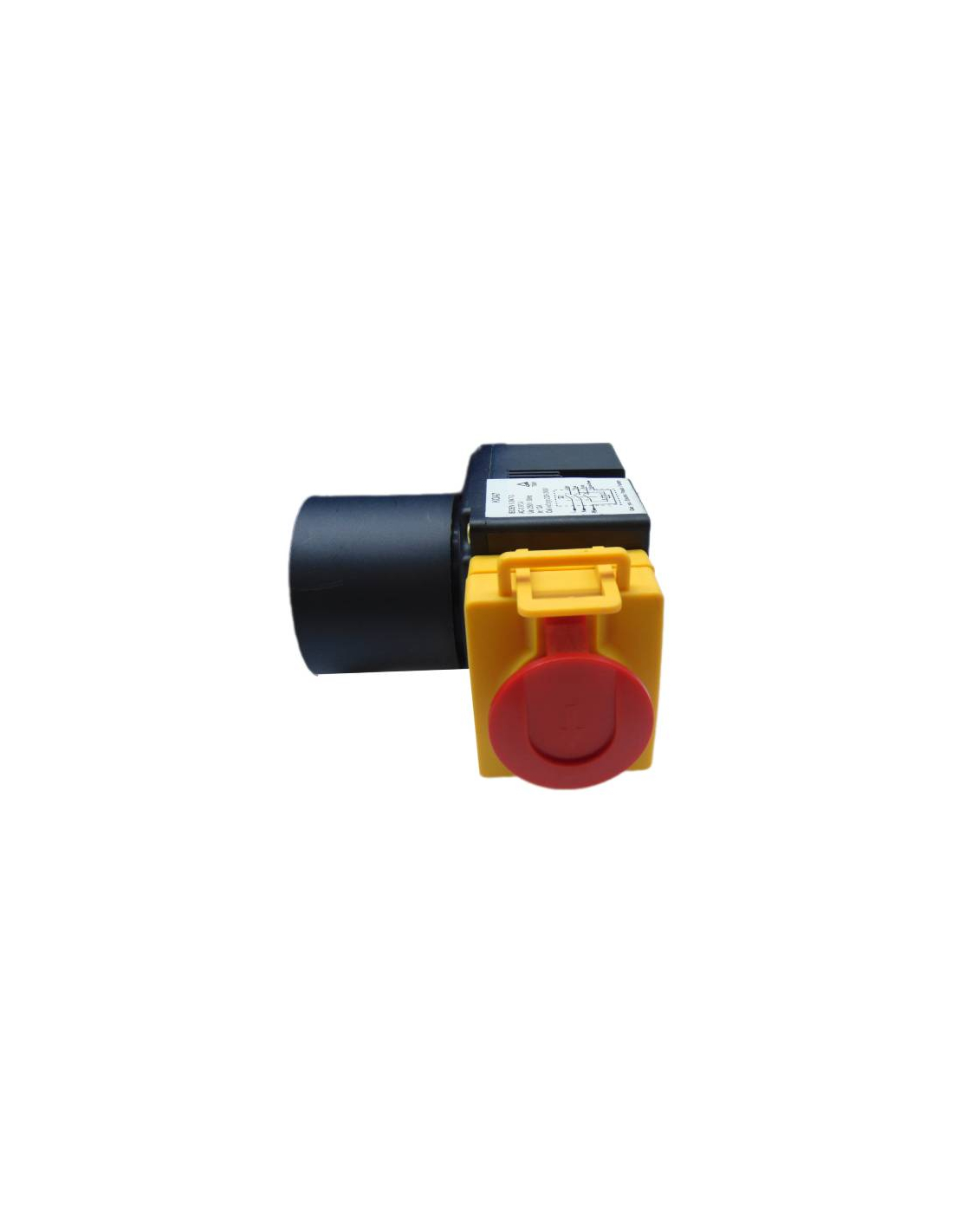

Switch in the terminal box
Schuko type plug
CE marking

Professional use material, install in compliance with the regulations in force at the place of installation.
