Motor for single-phase concrete mixer 3CV 2,2Kw 1500 rpm 230Vac

€321.32 Tax included

€267.77 tax excl.

993MOT-300MH

Motor for single-phase concrete mixer 3CV 2,2Kw 1500rpm 230Vac, with pulley type 2a (Ø58mm), switch and power cable with Schuko plug.

Valid for most models on the market.


The supply includes:

  • 3CV 1500 single-phase motor
  • Pulley
  • Switch
  • Cable with plug

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

2 questions about the product
Privacy
Shipments
Returns

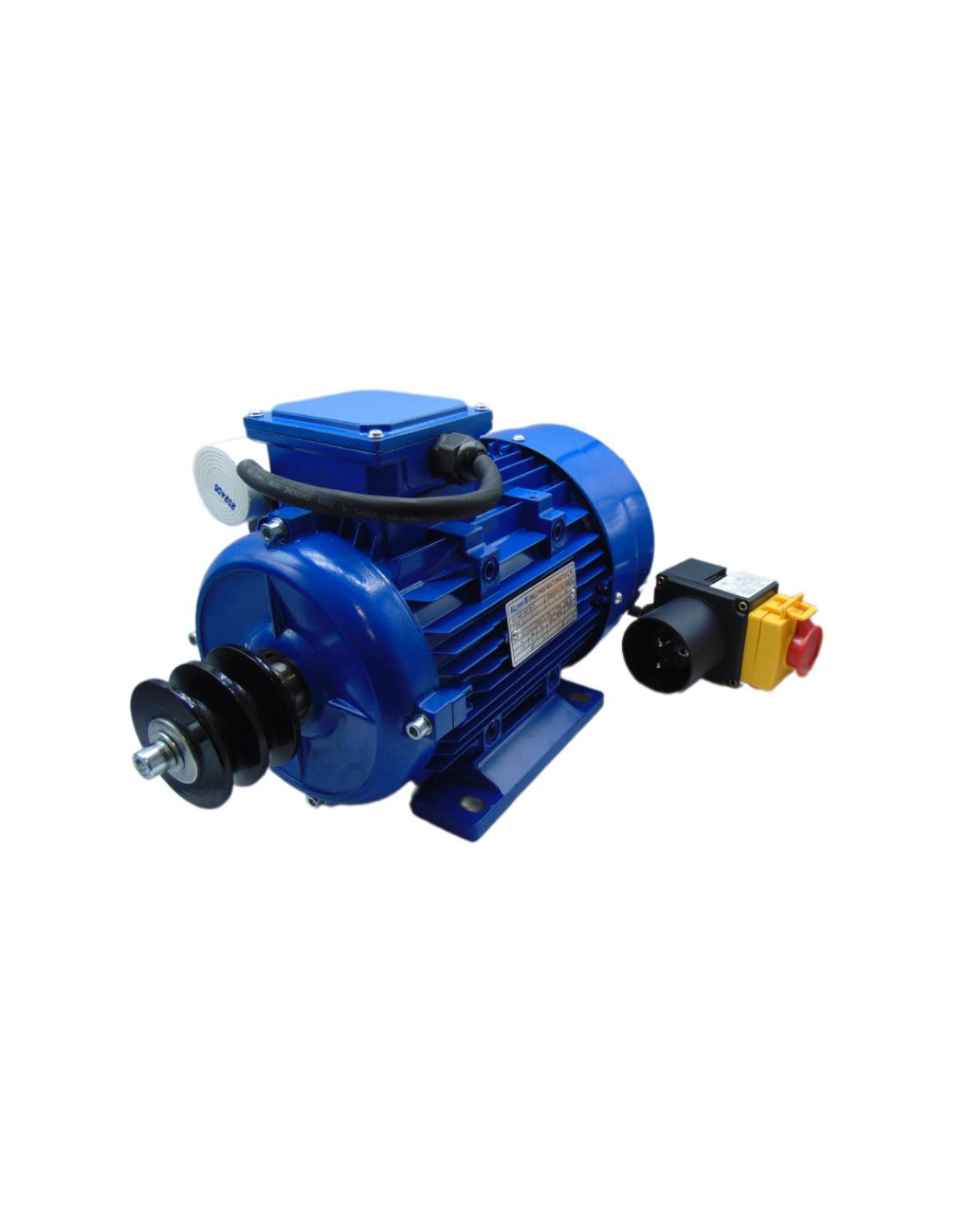

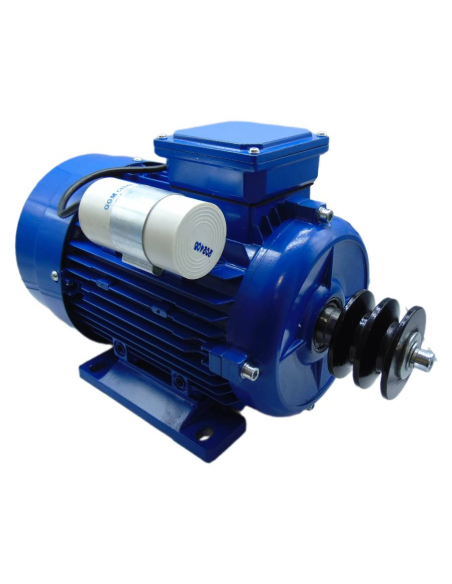

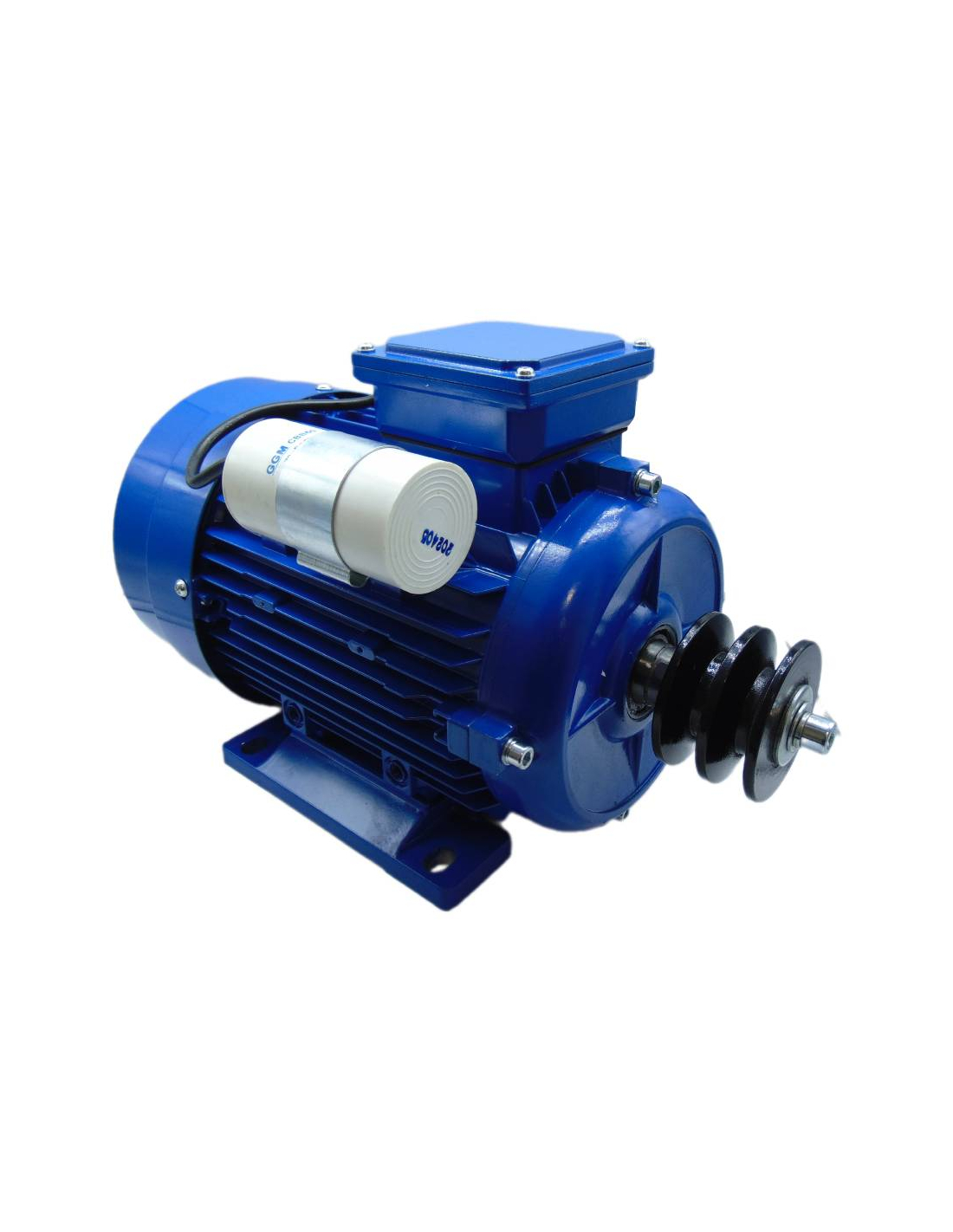

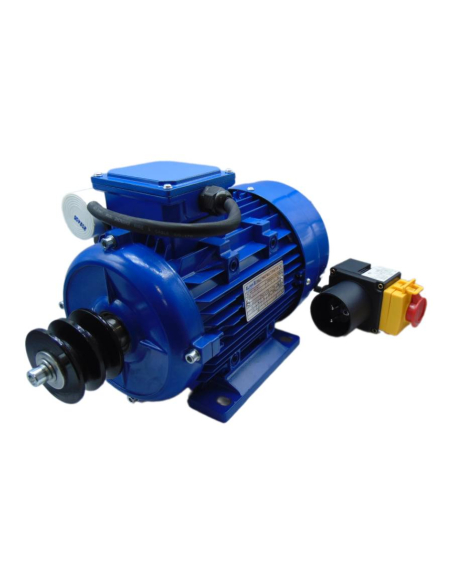

Motor for single-phase concrete mixer 3CV 2,2Kw 1500rpm 230Vac, incorporates pulley type 2a (Ø58mm), switch in the terminal box and power cable with Schuko plug.

Valid for most of the models in the market. Possibility of changing the direction of rotation of the motor by accessing the terminals of the same.

The supply includes:

  • Motor 3CV 2.2Kw 1400 rpm single phase 230Vac
  • Pulley Type 2a (Ø58)

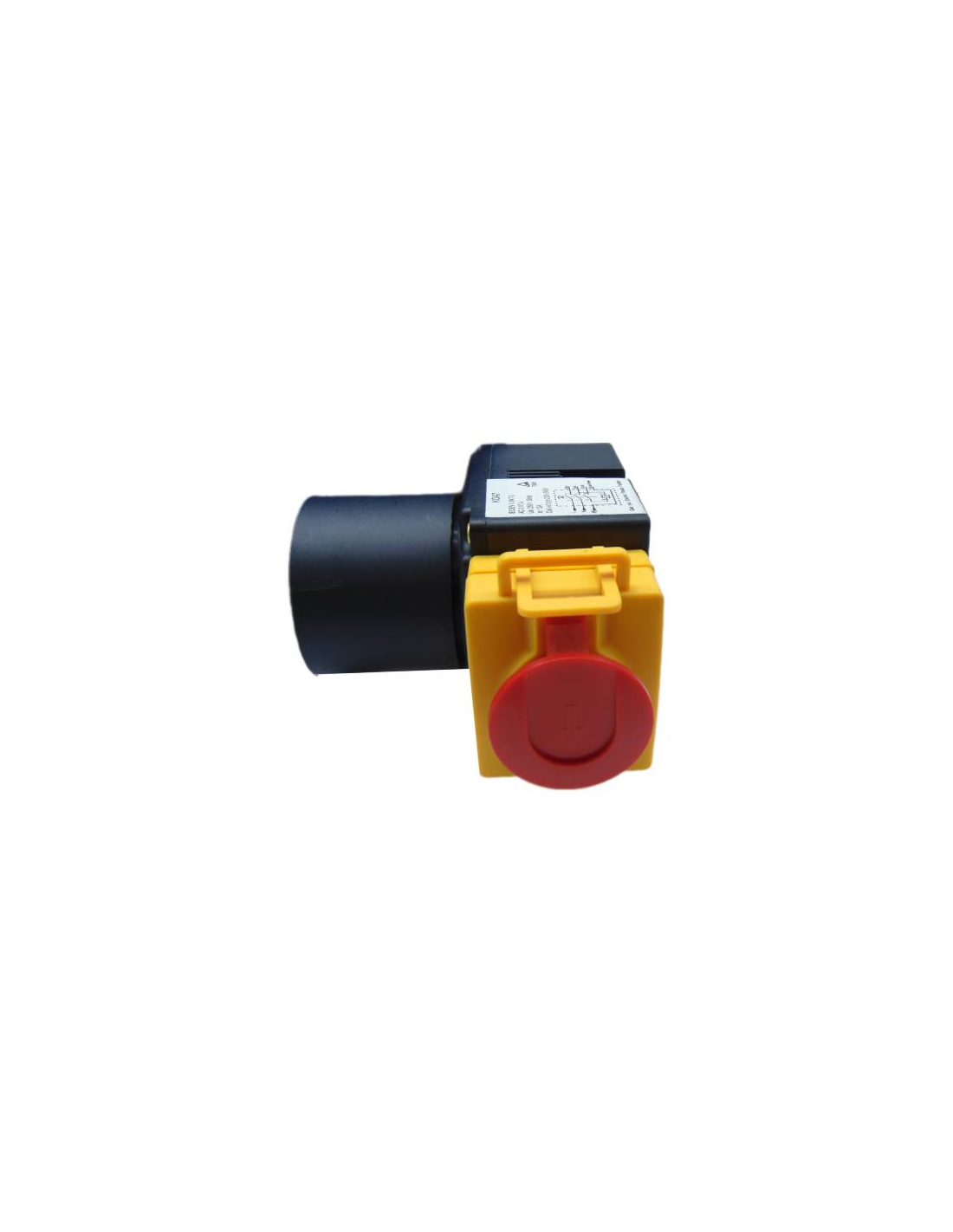

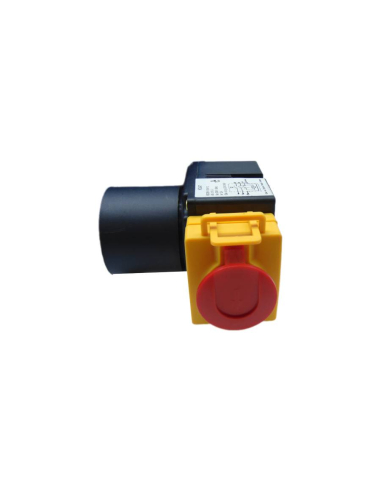

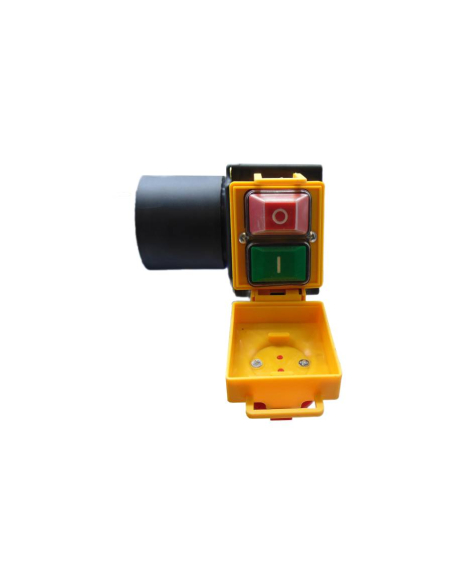

  • Switch
  • Cable with schuko plug

Technical characteristics:

  • Voltage: Single-phase 230Vac
  • Power: 3CV (2,2Kw)
  • Revolutions: 1400 rpm
  • Constructive form: B3 Legs
  • Size: 100L4
  • Isolationclass F
  • Protection: IP44
  • Pulley: Type 2a (Ø58mm)
  • Power cable included

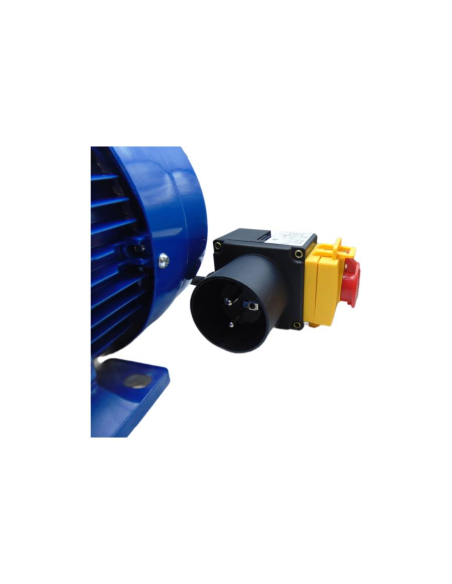

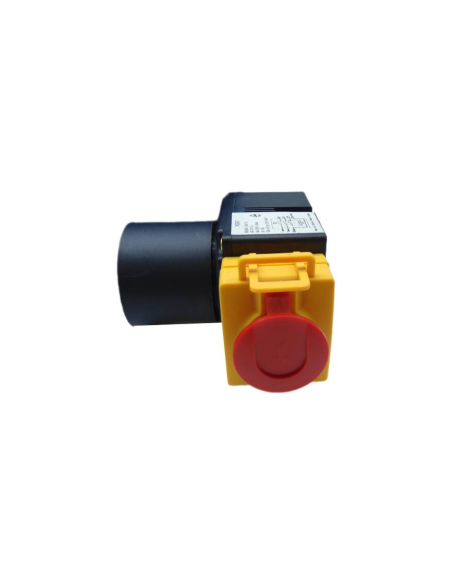

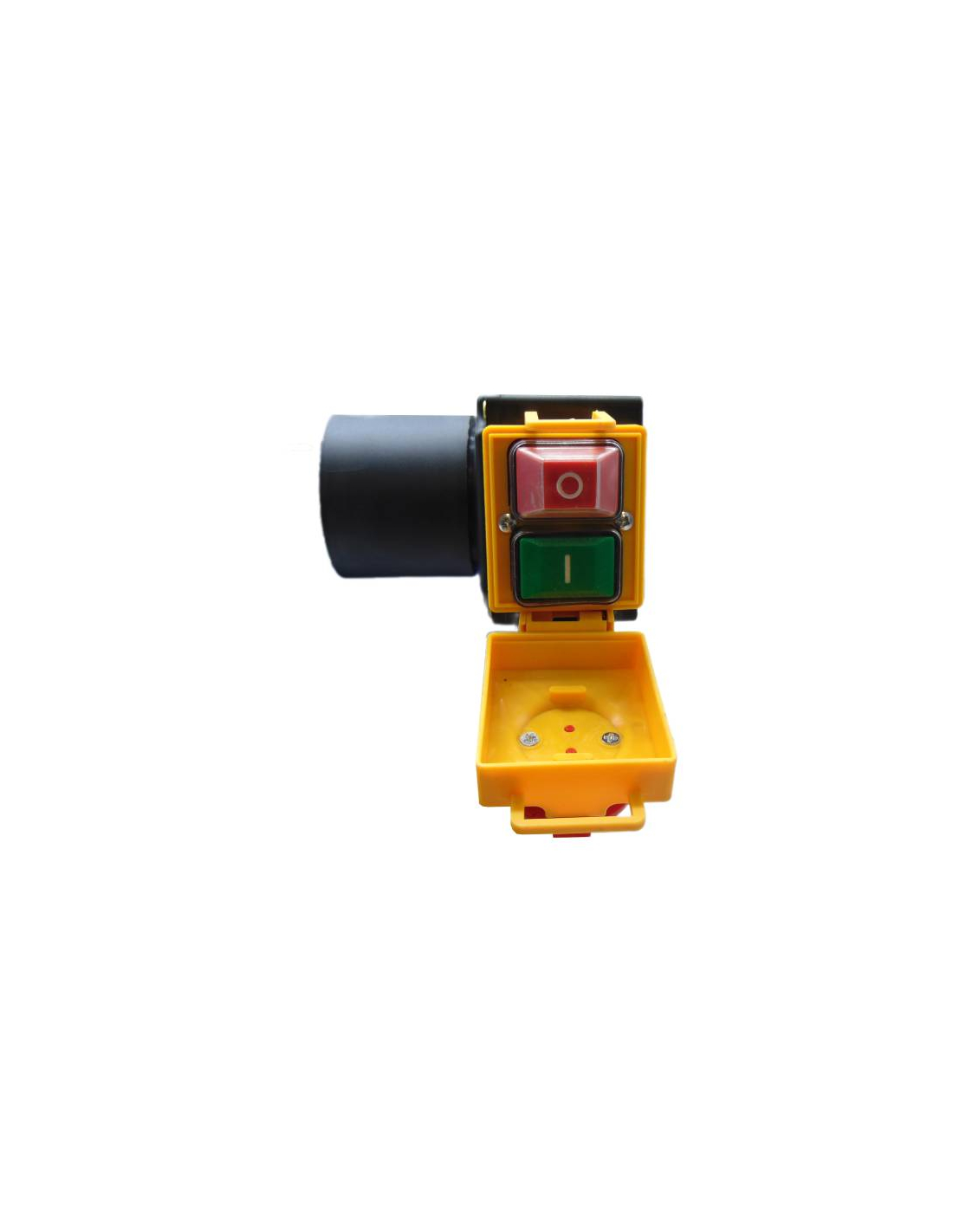

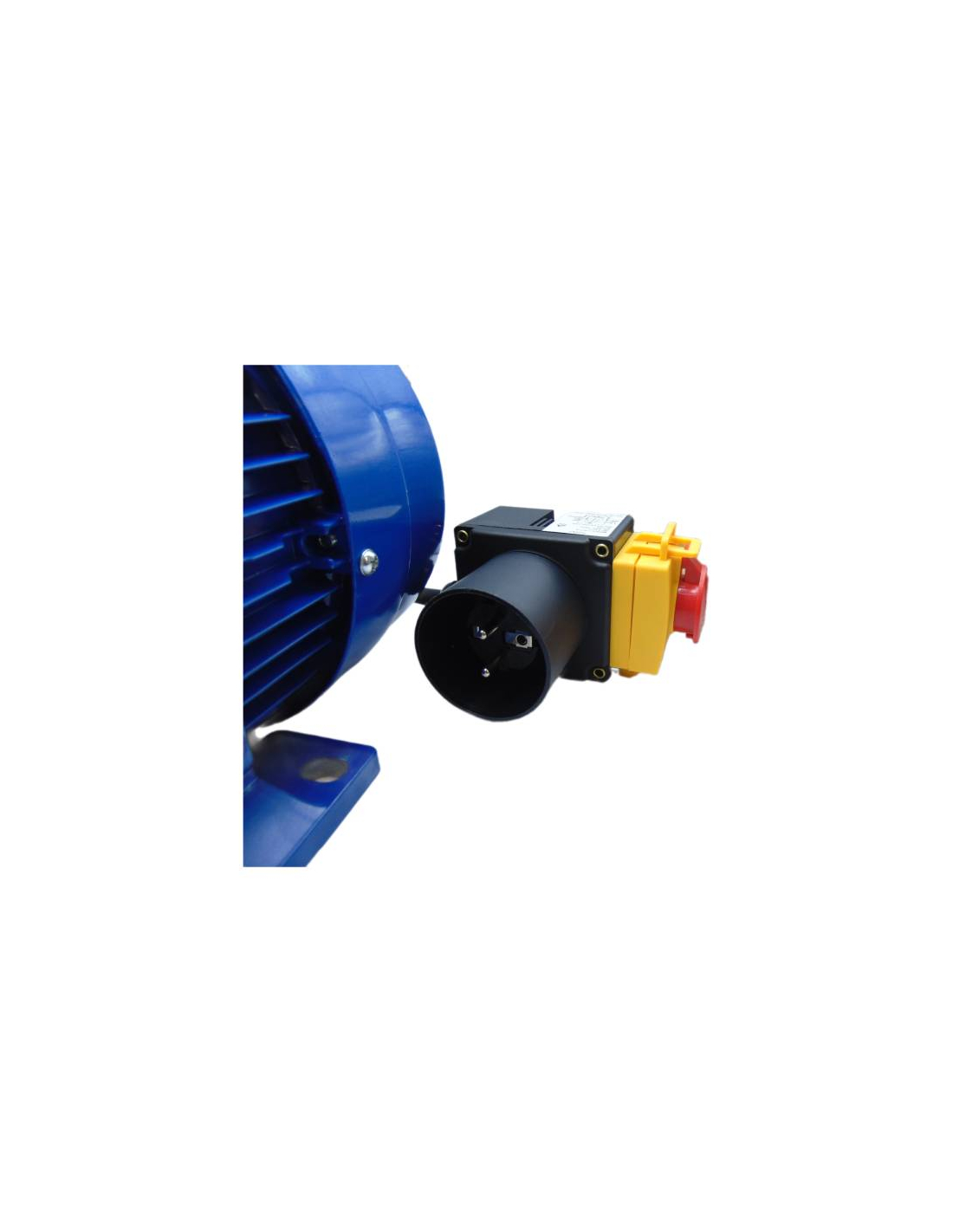

  • Switch on terminal box
  • Schuko type plug
  • CE marked




Equipment for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Question
El Interruptor ¿ lleva protección magneto térmica o similar?,
Podrian sustituir la polea por una 2-a-70, ya que el desarrollo del modelo es así
Answer
Buenas tardes.
El motor no tiene protección incorporada, hay que instalar un disyuntor guardamotor ajustado a la intensidad nominal. La polea que incorpora, tiene el diámetro estandart, en el caso de  necesitar otro diámetro, tiene que seleccionar la polea que le interese y después  elegir un taper que se ajuste al eje del motor.
No obstante, verifique que cumpla con sus especificaciones.
Saludos
Adajusa
Javier Ayude on 11/12/2024 11:33:10
Question
¿El motor de hormigonera es de alto o medio par de arranque? Gracias
Answer

Buenas tardes,

Los motores para hormigoneras que suministramos son de medio par de arranque.

Saludos

José Egido on 05/16/2018 10:33:19
