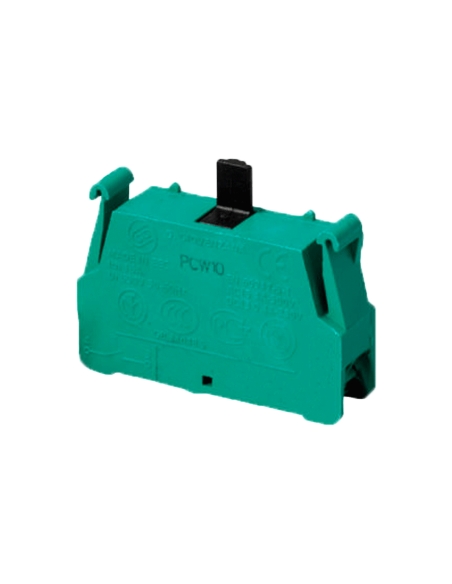

Open contact spring connection - Giovenzana
Open contact spring connection - Giovenzana

Open contact NA spring connection - Giovenzana

€2.26 Tax included

€1.87 tax excl.

Block of no (NA) to be installed in pushbuttons and control of the Giovenzana brand.

Contact connection by spring, green color.

Reference: PCW10

esquema contacto abiertoLogotipo normativa botoneras serie HP resumido

Logotipo Giovenzana Adajusa

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Block of no (NA) for command assistants of the Giovenzana brand. narrow profile, easy and strong support on the control element.

Connection of the electrical cable by spring, Contact of high current capacity (16a).

specifications:

  • Manufacturer: Giovenzana.
  • Reference: PCW10.
  • Type of action: Normally open contact (NA).
  • Color: Green.
  • Isolation nomila voltage (Ui): 690V.
  • Working frequency: 50/60Hz.
  • Rated thermal current (Ith): 16a.
  • Rated current of use (In) category AC15 (alternating current):
    • 24Vac: 10A.
    • 60Vca: 8A.
    • 110Vac: 6A.
    • 240Vac: 5A.
    • 400Vac: 4A.
    • 500Vac: 4A.
    • 690Vac: 2A.
  • Rated current of use (In) category DC13 (direct current):
    • 24Vcc: 2A.
    • 48Vcc: 2A.
    • 60Vcc: 1A.
    • 110Vcc: 0.4A.
    • 250Vcc: 0.4A.
  • Contact resistance:
  • Contact operation: Slow double contact rupture.
  • Drive force: 4N.
  • Electrical duration:
    • 1A: 1500000 cycles.
    • 2A: 500000 cycles.
    • 3A. 250000 cycles.
  • Standard: IEC/EN60947-5-1.

dimensions:

Diagrama de tiempos contacto PCW10 Giovenzana

Diagrama de tiempos contacto abierto Giovenzana

Connection mode:

modo conexionado contacto abierto Giovenzana Adajusa

Imagen conexionado contacto abierto PSC01 Giovenzana adajusa

Modo de montaje bloques de contactos Giovenzana Adajusa

Note: This contact block is only valid for elements manufactured by Giovenzana.

For more information you can download the technical data sheet by clicking on the "Attachments" tab.
Material for professional use, install respecting the regulations in force at the place of installation.
