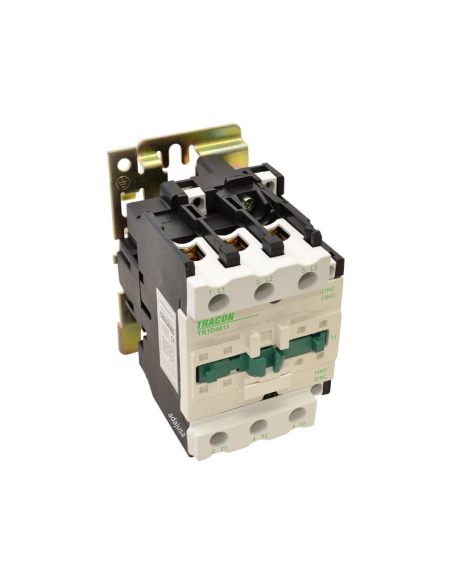

Three-phase contactor 80A 230Vac auxiliary contact NO NC Series TR1D

Three-phase contactor 80A 230Vac auxiliary contact NO NC Series TR1D

€46.40 Tax included

€38.35 tax excl.

Three-phase electric contactor equipped with high-capacity contacts, with 85% silver, for controlling electric motors, heating, lighting, ventilation, or general uses, 3 poles with a current capacity of 80A category AC3 or 125A category AC1, With 230Vac coil, the contactor is equipped with 2 auxiliary contacts, one open (NO) and one closed (NC).


Reference: TR1D8011

SCHEMANC

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!


Three-phase contactor (3 poles) of 80A in category AC3 or 125A in category AC1, the contactor is equipped with highly robust main contacts, manufactured with 85% silver, which makes it suitable for demanding applications for controlling electric motors , heating, lighting, ventilation and general use systems. The contactor is equipped with 2 auxiliary contacts, one open (NO) and one closed (NC). The contactor can be fixed using screws or by DIN rail.




Characteristics:

  • Manufacturer/Supplier: Tracon
  • Reference: TR1D8011
  • Number of poles: 3
  • Coil voltage: 230Vac 50/60Hz
  • Contactor rated current in AC1: 125A
  • Contactor rated current in AC3: 80A
  • Contactor rated current in AC4: 37A
  • Rated impulse voltage (Ui): 690V
  • Contactor maximum power: 3~AC3 220/230V: 22kW
  • Contactor maximum power: 3~AC3 380/400V: 37kW
  • Contactor maximum power: 3~AC4 380/400: 10kW
  • Maximum power contactor 3~AC3 415V: 45kW
  • Contactor maximum power: 3~AC3 500V: 55kW
  • Contactor maximum power: 3~AC3 660/690V: 45kW
  • Contactor maximum power: 3~AC3 1000V: 45kW
  • Auxiliary Contact integrated into the contactor: 1 Open (NO) and 1 Closed (NC)
  • Mechanical life expectancy: > 3.000.000 cycles
  • Electrical life expectancy: > 1.000.000 cycles
  • Driver section: 50mm 2
  • Working temperature range: -25ºC to +55ºC
  • Protection grade: IP20
  • Mounting conditions: The maximum inclination must not exceed ±30%



Dimensions:

TR1DNANCDIMENSIONS

Material for professional use, install in compliance with the regulations in force at the installation site.
