Condenser contactor 54kVar coil 230Vac
Condenser contactor 54kVar coil 230Vac

Condenser contactor 54kVar coil 400Vac

€185.81 Tax included

€153.56 tax excl.

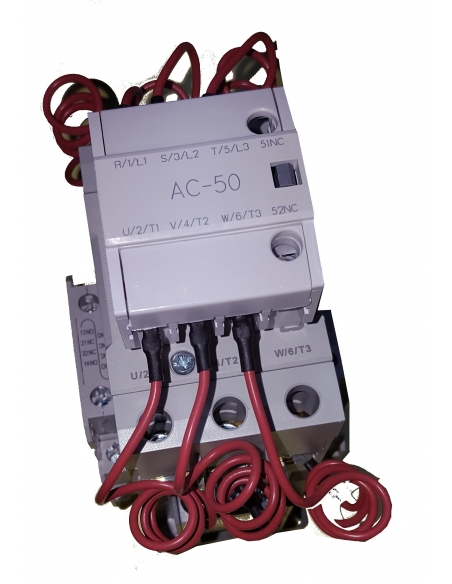

Three-phase contactor for 54kVar capacitor (400Vac) with 400Vac coil., used for capacitor control in power factor correction units. Composed of three-phase contactor and preload unit.

Reference: 97MC54A400AC5

Esquema eléctrico contactor batería de condensadores

Logotipo LS LG industrial Systems

This pack contains

No queries yet, leave the first!


Three-phase contactor for capacitor control for a maximum power of 54kVar (400Vac) with coil at 230vas used in power factor correction systems. The contactor mounts a preload unit on the front of the contactor. it also has 4 auxiliary contacts, with 2 open NA contacts and two closed NCs.

This preload unit contactor prevents the destruction of contactor contacts due to the transient overcurrent produced by the capacitors.

Technical details:

  • Manufacturer: LS (LG Industrial Systems).
  • Contactor Reference: MC-75a AC230Vac 50/60Hz 2a2b 3P
  • Preload unit reference: AC-50.
  • Maximum operating voltage: 400-440Vac.
  • Coil voltage: 230Vac.
  • Number of contactor poles: 3.
  • Assigned current for contactor in AC3: 75A.
  • Current assigned for contactor in AC1 (Ith): 110A.
  • Maximum current per set: 78A.
  • Maximum peak current: 3040A.
  • Maximum power (kVar) 380-400Vac: 54.
  • Maximum power (kVar) 220-230Vac: 29.7.
  • Maximum residual voltage in the contacts: ≤50V.
  • Maximum number of maneuvers per hour: 100.
  • Electrical power: 100,000 maneuvers.
  • Auxiliary contacts: 4 sides (2 open and 2 closed)
