3/8 female 2- way shut-off valve with T handle...
3/8 female 2- way shut-off valve with T handle - Aignep

3/8 female 2- way shut-off valve with T handle - Aignep

€6.61 Tax included

€5.46 tax excl.

Shut-off valve or G3/8 female ball valve (ISO 228 compliant), 2 way , actuated by T-shaped handle. Body made of nickel-plated brass and aluminum handle. Valve for pneumatic, hydraulic, heating and air conditioning applications.


Series: GHILUX
Reference: 6071 3/8

aignep
mini-regulation

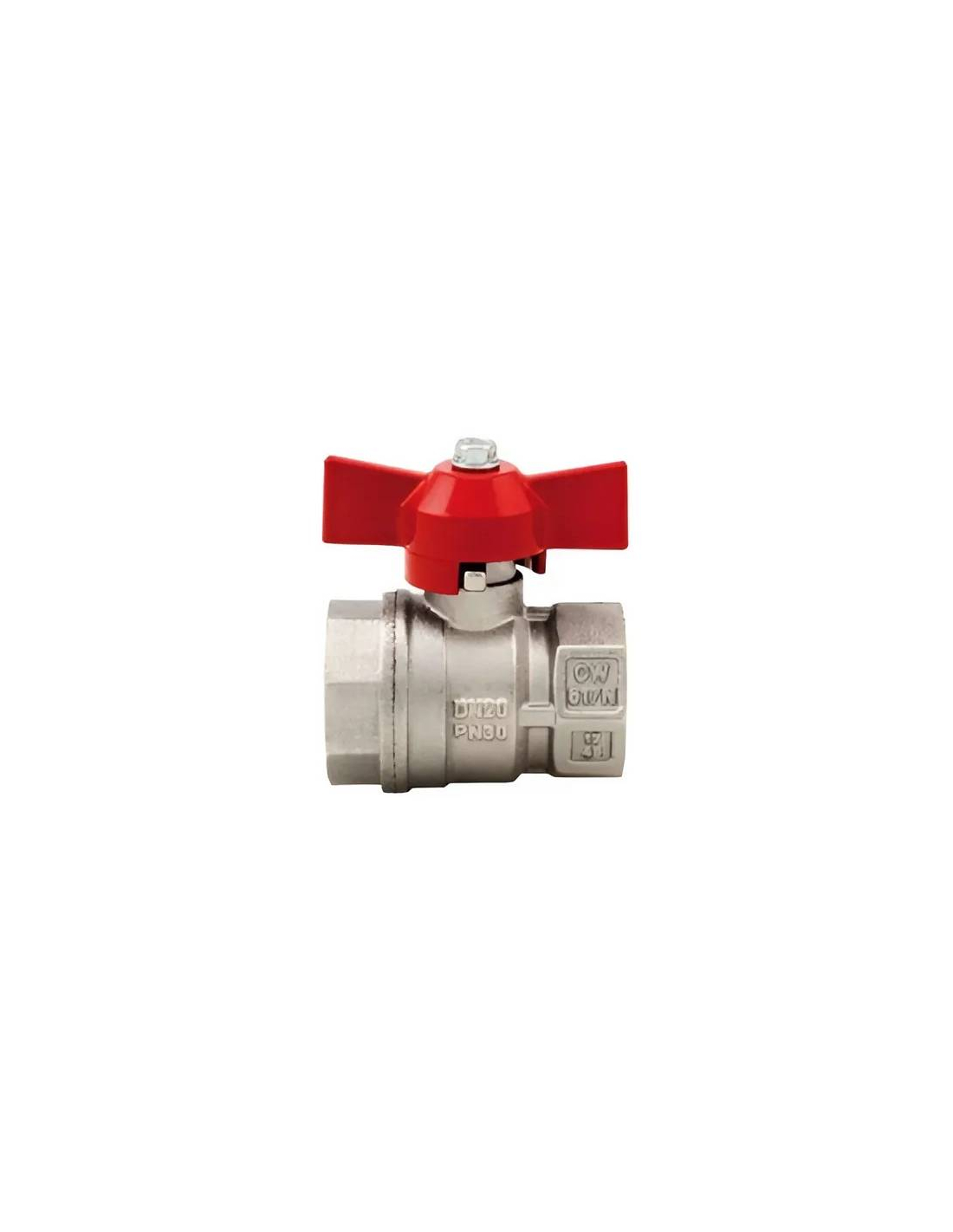

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!


Two way G3/8 female ball valve (ISO 228 compliant) and actuation by T-shaped handle. Body made of nickel-plated brass, painted aluminum handle and PTFE ball seat gasket. These excellent performance valves ensure a reliable seal and secure connection between components. They are used to close the air passage in various pneumatic applications such as tools and compressed air, hydraulic and air conditioning installations.

These on-off type valves have two possible positions, open or closed . In the ON position, the fluid from the circuit passes through the valve and when it is in the OFF position, it completely blocks the flow of fluid.


6071materials


Technical characteristics:

  • Manufacturer: Aignep
  • Reference: 6071 3/8
  • Thread: Female 3/8 (Gas cylindrical thread conforming to ISO 228)
  • Body material: Nickel-plated brass
  • Application fluids: Compressed air / Water
  • Pressure (DN 10): 50 bar
  • Thread regulations:
    • Cylindrical gas conforming to ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228)



Dimensions:


6071dimensions





For more information you can download the technical sheet by clicking on the "Attachments" tab
.

Material for professional use, install in compliance with the regulations in force at the installation site.
