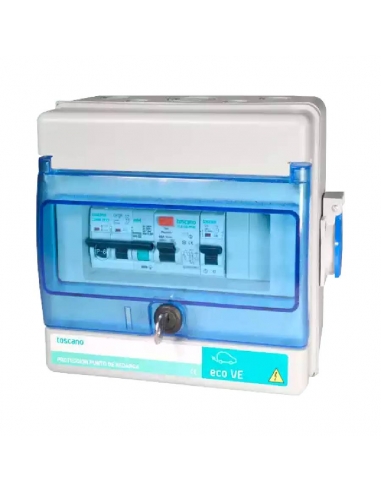

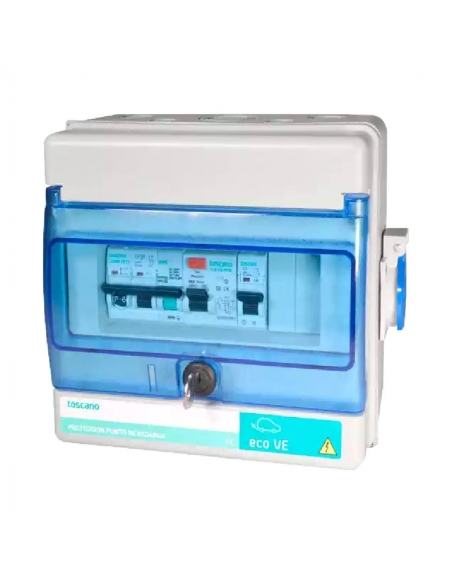

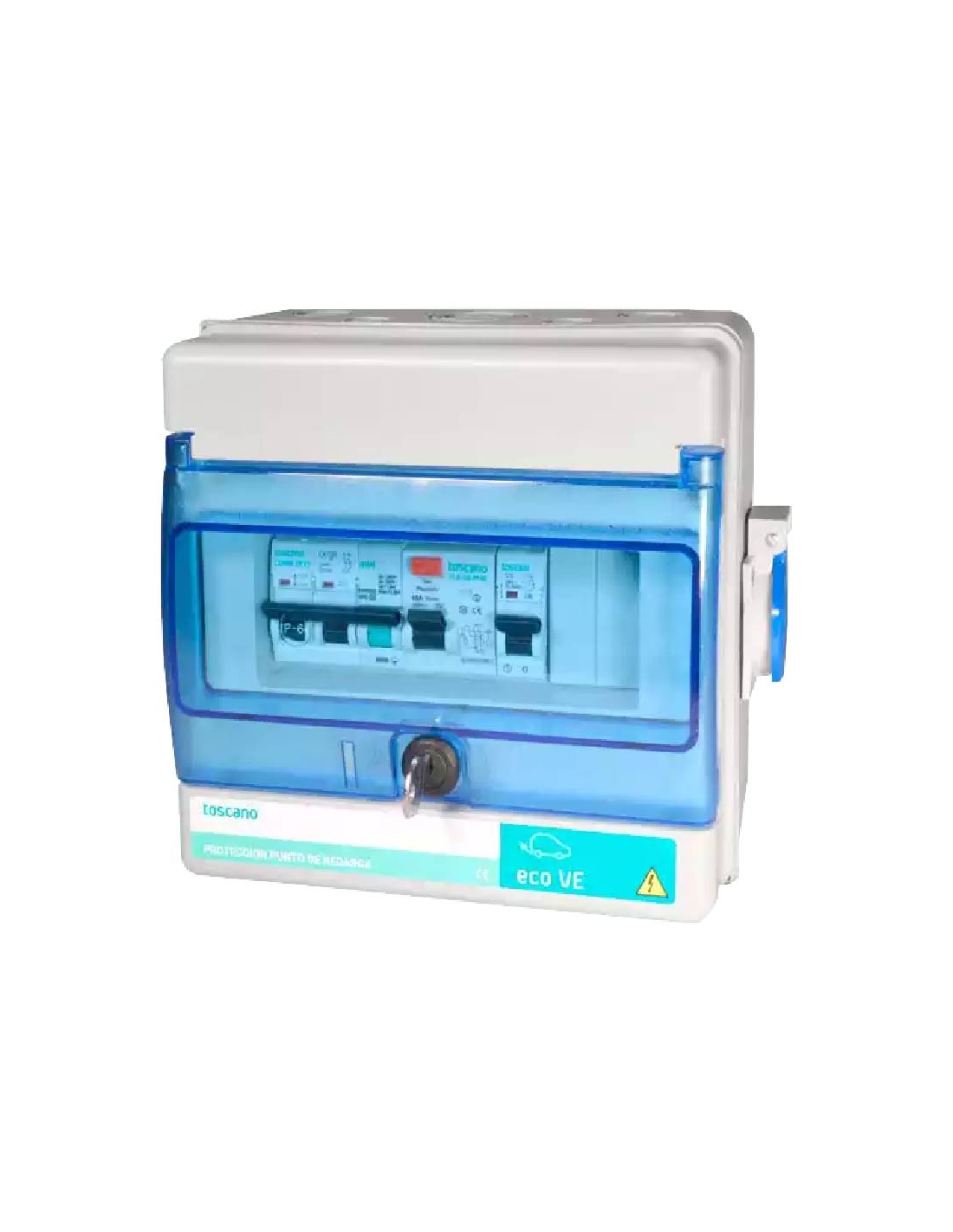

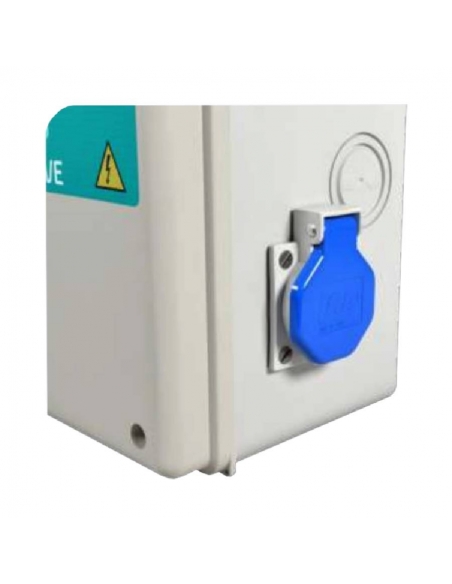

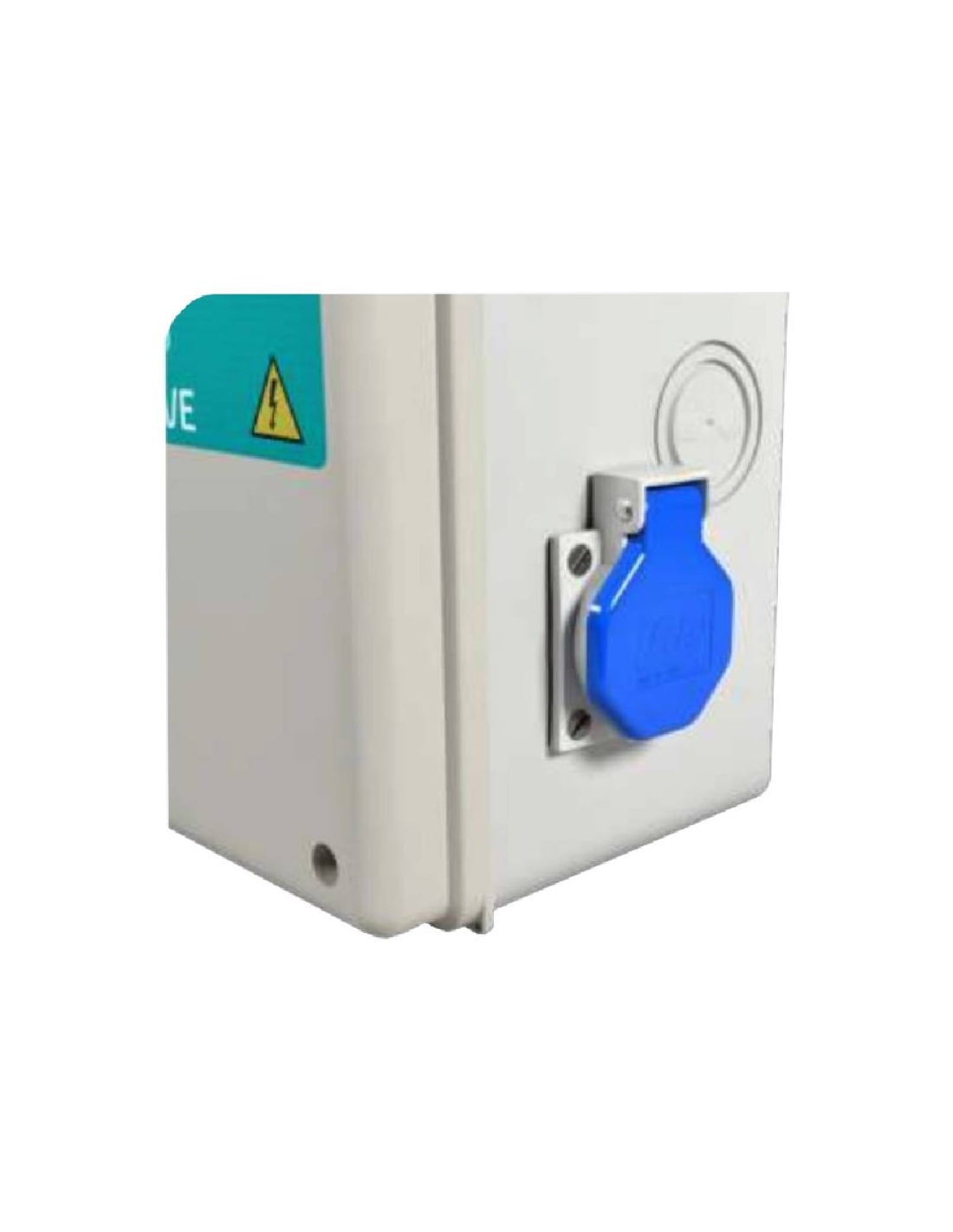

Control panel and protection 4x40A electric vehicle charging automatic reset and Schuko outlet ECO-VE-PRO-4P40T15S - Toscano

ECO VE PRO control and protection panels are designed to protect electric vehicle charging stations in accordance with the ITC-BT-52 directive.

The protection panel is equipped with both permanent and transient overvoltage protection in the electrical network and equipped with automatic reset and infinite impedance.

The transient overvoltage protector protects the charging station against disturbances in the electrical network due to electrical storms and lightning strikes, as well as connection and disconnection of electrical transformers that supply the network. The permanent protection against voltage surges in the electrical network prevents the equipment from operating when the input voltage is higher than 275V, according to EN 50550 standards.

COMBI-PRO equipment continuously monitors the current status, supplying power to the charging station whenever conditions are optimal for the power supply. Thus a momentary disturbance in the network will not interrupt the power supply. The COMBI PRO system detects the absence of power by disconnecting the charging station from the mains. If the power failure is due to the power consumption being exceeded in the installation and the meter of the house or installation requires a total disconnection maneuver, it is not necessary to manually disconnect the COMBI PRO, it will only be necessary to disconnect the IGA in the house or main electrical installation, the automatic reconnection system that equips COMBI PRO will reconnect the charging station.

If the disconnection has been due to an overcurrent or short-circuit problem in the charging station, the equipment will not automatically reconnect. It can also be configured as overvoltage and undervoltage protection (undervoltage), in this case the equipment will cut off the voltage when it drops below 180V and will reconnect when it rises above 210V and is maintained for at least 10 seconds.

The distribution panel is supplied already pre-wired and with all the elements already mounted.


Summary of technical characteristics:

• Manufacturer: Toscano
• Referencia: ECO-VE-PRO-4P40T15-S
• Amperage: 4x40A
• Power rating: 27.71kW
• Rated voltage: 230Vac (L/N) 50/60Hz
• Rated voltage: 400Vac (L/L) 50/60Hz
• Trip curve: C
• Breaking capacity: 6kA
• Differential: Class A
• Leakage current: 30mA
• Overvoltage tripping voltage: >270Vac
• Overvoltage response time: according to norm EN 50550
• Resetting time: 10 seconds.
• Reclosing voltage:
• Undervoltage tripping voltage:
• Undervoltage response time: 10 seconds
• Reclosing time: 10 seconds
• Maximum transient voltage Uc: 320Vac (L/N)
• Protection level Up (L/N)(N/PE):
• Maximum discharge current (8/20us): 15kA
• Transient protection class: Class II
• Consumption of Vigivolt protections: 0,3VA
• Maximum terminal cross-section: 25mm²
• Environmental ranges: -5º..+40ºC / 80º RH
• Degree of protection: IP65
• Dimensions (mm): 362x362x160
• Lock: Metal key lock.
• Standards: IEC61643-11 / EN61643-11 / IEC61439-123 / ITC-BT-52 / EN 50539-11:2013/A1:2014 / EN60269-6:2011 / IEC60364-7-712:2017 RLV / EN 60947-3:2009/A2:2015 / EN31439-1:2012 / EN 61439-2:2012/A11:2018

Connection:

For further information you can download the data sheet by clicking on the "Attachments" tab.
Material for professional use, install respecting the regulations in force at the place of installation.
