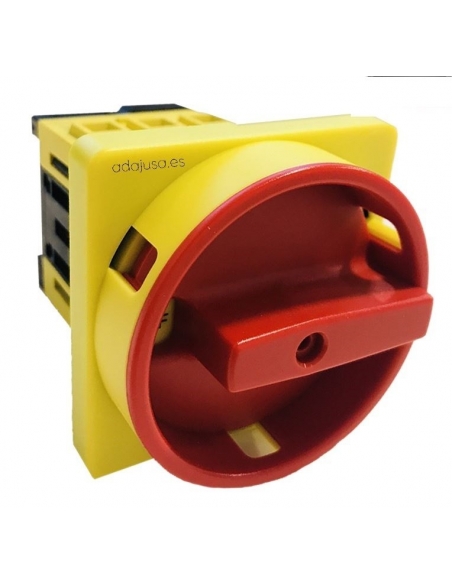

Disconnector switch 4 poles 32A full 67x67mm SE series - Giovenzana
Disconnector switch 4 poles 32A full 67x67mm SE series - Giovenzana

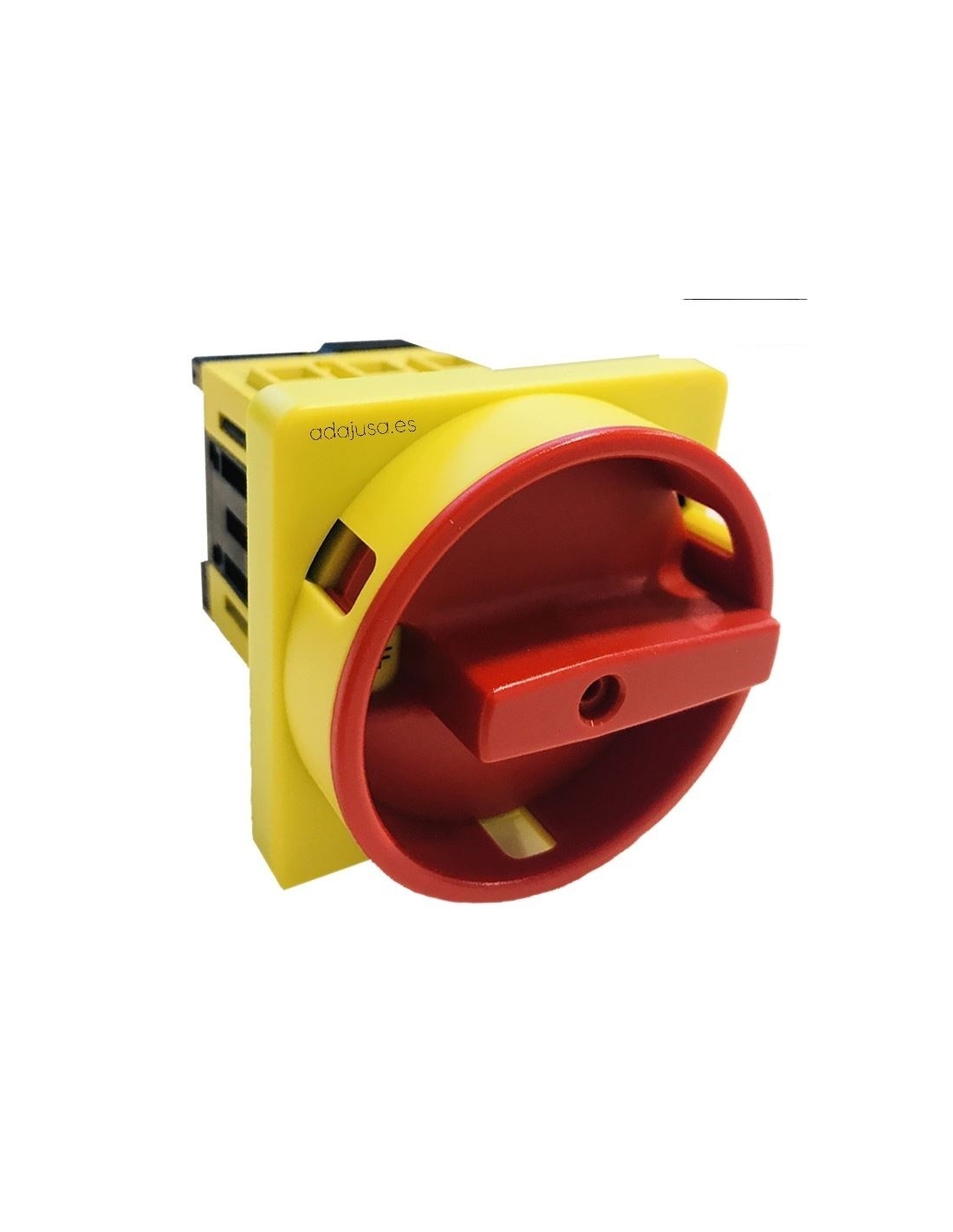

Disconnecting switch 4 poles 63A series SE 67x67 yellow red handle - Giovenzana

€51.43 Tax included

€42.50 tax excl.

Disconnecting switch 4 poles (four-pole) 63A. yellow front knob and red handle, possibility of locking by padlock, made in accordance with the strictest European standards, which allow to comply with the requirements in terms of safety.
Suitable for interruption, connection and switching of electrical circuits as well as direct starting of motors and main switch on machines. Suitable up to 22kw. 400Vac.

Part number: GISE630467R

Esquema interruptor 4 polos
Giovenzana

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.



4-pole (four-pole) 63A disconnecting switch

for inductive loads (electric motors) and general control. 90º rotary knob with two 0-1 positions, yellow front plate and red handle. Possibility of locking by padlock.

This series of rotary switches has been manufactured according to the strictest European and international standards (IEC/EN 60947-3, UL508), which allows them to meet all safety requirements.

Panel mounting (back-panel mounting), IP-20 protection degree on terminals, self-cleaning contacts and indelible laser marking. Body made of UL94 VO self-extinguishing material.

This three-phase switch is suitable for machinery, motors and installations up to 11kw connected to 230Vac or 22kw connected to 400Vac.

Delivery includes:

  • 4-pole switch: SE633004R
  • Front plate: 010/0001

Padlock not included in the scope of supply.

Features:

  • Brand: Giovenzana
  • Switch reference: SE032004R
  • Faceplate reference: 010/0001
  • number of poles: 4.
  • Rated voltage Ue: 690V.
  • Rated thermal current ith: 63A.
  • Rated current Ie (AC21A): 63A.
  • Rated current Ie (AC22A): 63A.
  • Rated current Ie (AC23A): 50A.
  • Rated current Ie (AC3): 32A.
  • Rated interrupting capacity: 10kA.
  • Contacts: Double interrupting slow opening.
  • Number of operations / hours: 120.
  • Mechanical durability: 100.000 operations.
  • Switching angle: 90º.
  • Flush mounting.
  • Protection degree:
    • 1-4-4-4X type controls: IP-65.
    • Terminals: IP-20.
  • Standards: CE; IEC60947; IEC60204; UL508 CSA 22.2 Nº14

Table of intensities and powers of use:

  • Category of use AC-21A: 63A.
  • Category of use AC-22A: 63A.
  • Use category AC-23A:
    • Standard three-phase 230Vac motors: 50A - 15kW.
    • Standard three-phase 400Vac motors: 50A - 30kW.
  • Use category AC-3:
    • 230Vac three-phase standard motors: 40A - 11kW.
    • Standard three-phase 400VAc motors: 40A - 22kW.

    Dimensions:

    Dimensiones interruptor SE1632

    Mounting:

    Monaje interruptores serie SE

    As additional elements we can add the following references:

    • Auxiliary contact closed: GIPL004001
    • Auxiliary contact open: GIPL004002
    • Auxiliary contact fixing plate: GI1184021
    Material for professional use, it has to be installed respecting the regulations in force at the place of installation.
