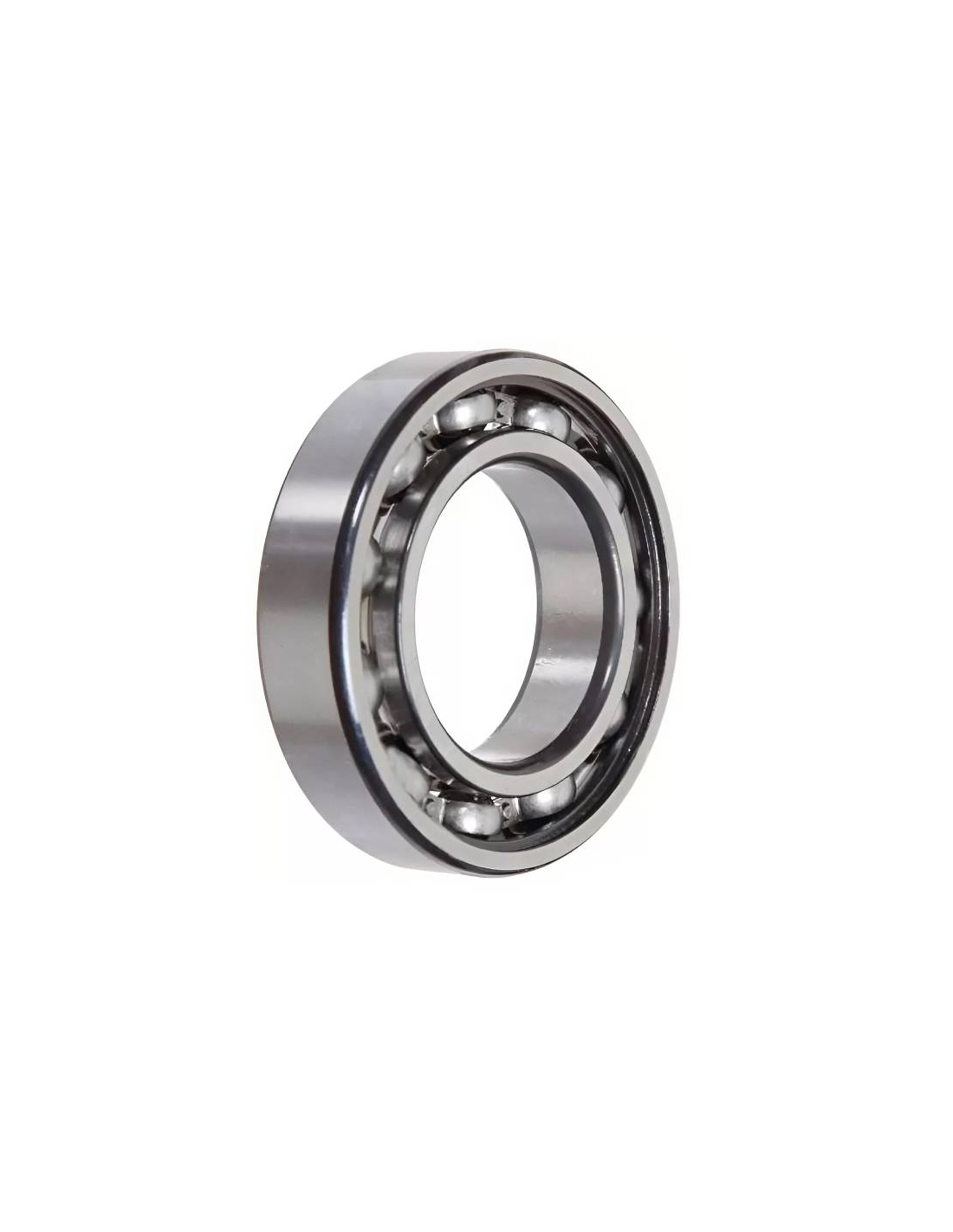

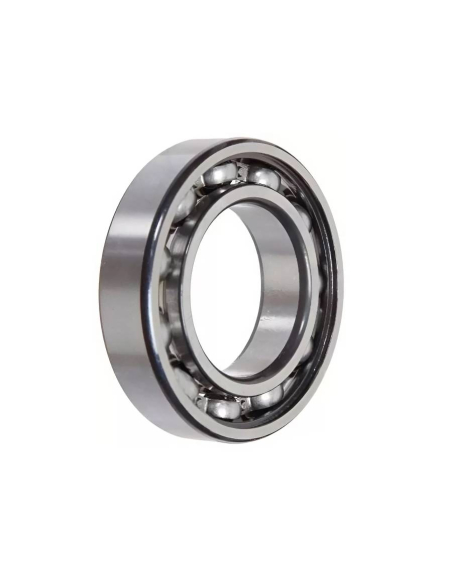

Bearing 3200 BTVH 10x30x14mm - FAG

€31.08 Tax included

€25.69 tax excl.

Ball bearing 3200 double row angular contact,dimensions 10x30x14mm. Double row angular contact bearing, made of steel and with polymid cage.

Brand FAG.

Ref: 3200-BB-TVH.

Logo-FAG

No queries yet, leave the first!


Angular contact ball bearing, double row, 3200 series according to DIN 628-3, two rows of balls, without any type of opturation (open) and with cage in polyamide.

Double row angular contact ball bearings support high radial loads and axial forces in both directions, the contact angle of this series is 25o.

This type of bearings are suitable for operating temperatures from -30oC to +110oC.

Dimensions: .10x.30x14.

For other references or measures consult.

Dimensiones doble hilera contacto angular

Features:

  • Manufacturer FAG - INA.
  • Reference: 3200-BB-TVH.
  • Material: Tempered steel.
  • Dimension d: 10mm.
  • Dimension D: 30mm.
  • Dimension B: 14mm.
  • Shutter: No, bearing open on both sides.
  • Dynamo load capacity Cr (N): 7800.
  • Static load capacity C₀r (N): 4550.
  • Contact Angle: ἀ-25o
  • Limit speed ng (min⁻1): 19300.
  • Weight: 0.05Kg.
