Limit switch long roller lever (microswitch microswitch) LS15 Series

€4.99 Tax included

€4.16 tax excl.

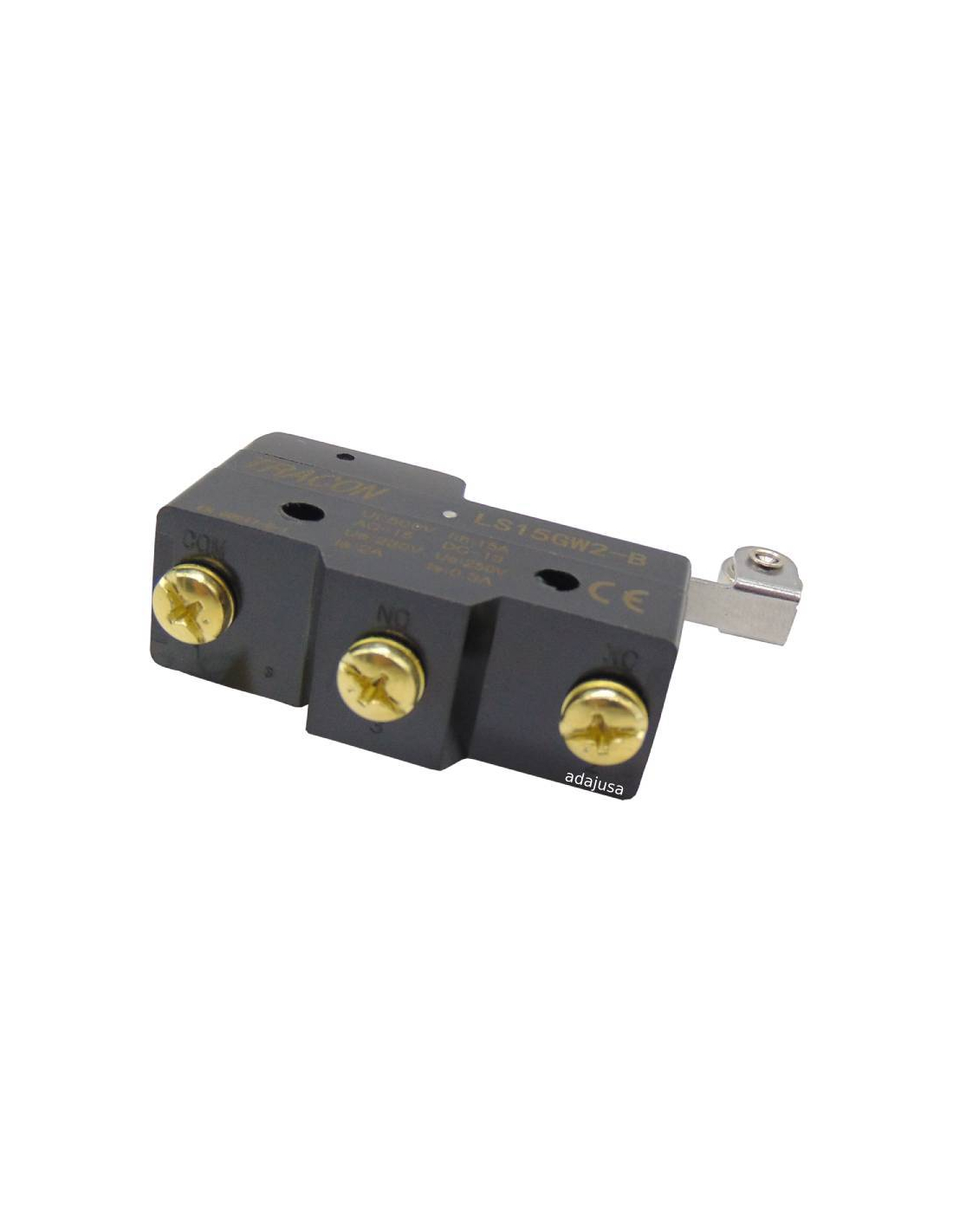

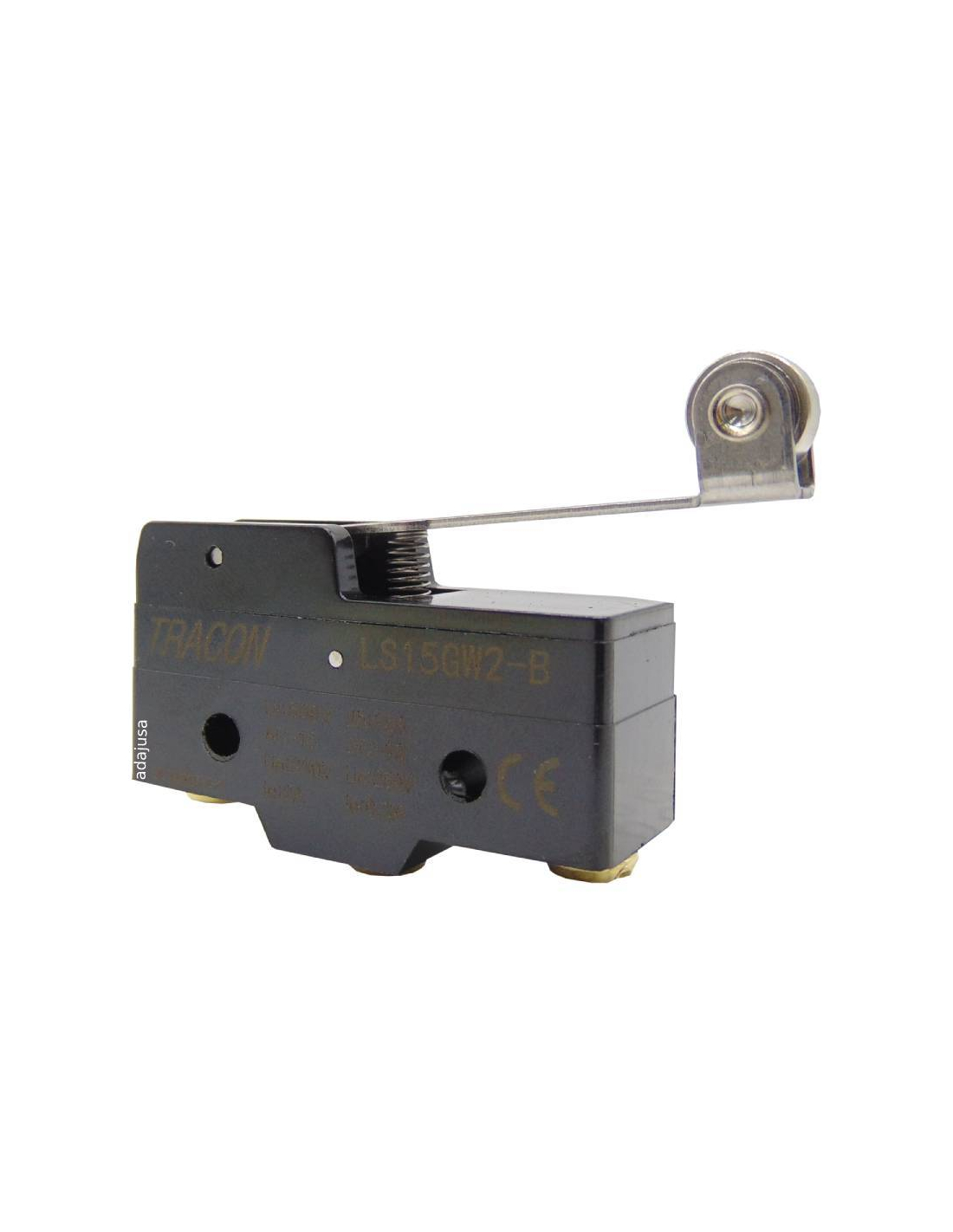

Long lever actuated limit switch with roller, (microswitch microswitch), 1 CO (NO/NC). High load capacity.


Part No.: LS15GW2-B

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Limit switch operated by long lever with metal roller, 1 change-over contact (NO/NC), high load capacity. Lateral fixing by means of screws, electrical connection by means of threaded nuts. Possibility of adding protection cover (not included).



Operating travel (mm)



Technical characteristics

  • Manufacturer/Supplier: TRACON
  • Part number: LS15GW2-B
  • Actuator type: Long lever with pulley
  • Rated thermal current: 15A
  • Rated current: 5A AC1 230V / 2A AC15 230V / 0.3A DC13 250V
  • Rated voltage of isolation: 500V
  • Electrical contact: 1 Switched (NO/NC)
  • Material: Plastic
  • Connection cable: 0.5 - 1.5mm2
  • Mechanical life: 1x106 cycles
  • Ambient operating temperature: -25oC to +55oC
  • Degree of protection: IP00
  • Standard: EN 60947-1, EN 60947-5-1




Dimensions:








Material for professional use, must be installed in compliance with the regulations in force at the place of installation.
