Direct mounting terminal 1.5-35mm2 plate thickness 5mm

€1.77 Tax included

€1.46 tax excl.

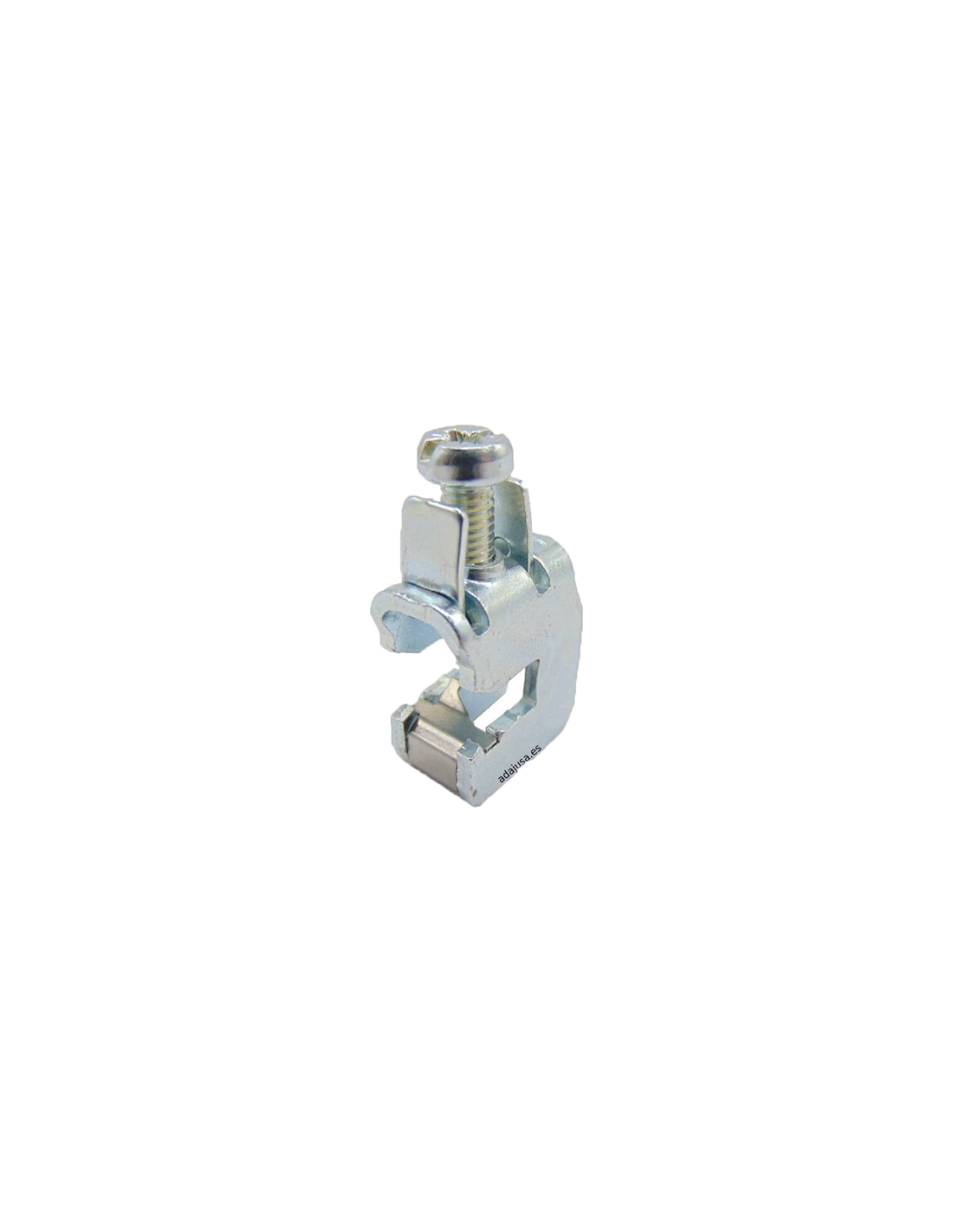

Direct mounting terminal on copper plate for cables with a section of 1.5-35mm 2 . Mounting plate thickness 5mm.

Reference: SZK35F5


Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!


Direct mounting terminal on 5mm thick copper plates, for flexible and rigid cables with a section between 1.5-35mm 2 . Mounting with quick clamp type coupling. Made of high quality steel, free of Chrome VI. Solution for a simple and robust installation.

Easy and safe mounting on the plate thanks to the great tightening force provided by the screw, avoiding torsion thanks to its patented "Twist-Stop" mechanism and guaranteeing a fixed assembly after installation.


Characteristic:

  • Manufacturer/Supplier: XBS /Mixvil
  • Reference: SZK35F5
  • Wire section: 1.5-35mm2
  • Allowable current: 158A
  • Mounting: 5mm thick plate
  • Standard: EN 60999
  • Material: High quality steel
  • Spring: Stainless steel


Material for professional use, it must be installed by qualified personnel in compliance with the regulations in force at the place of installation.
