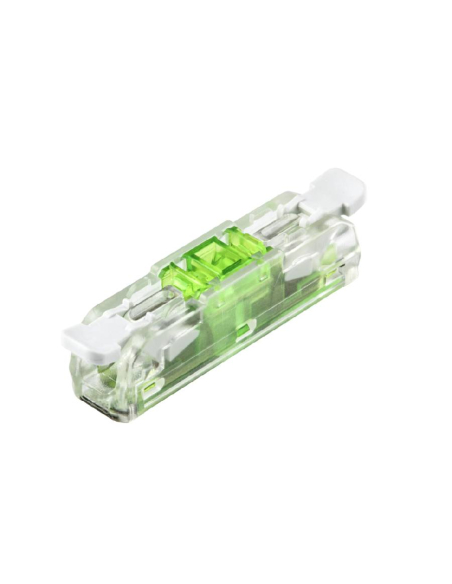

Double quick-connecting terminal 1 pole 0.5-4mm

€0.49 Tax included

€0.41 tax excl.

RVOGTT11

1 pole 32A, 400Vac double quick connection terminal for conductors from 0.5 to ^4mm2. Screwless quick connection that guarantees a simple and safe electrical connection. Reusable system.

Part number: RVOGTT11

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated

No queries yet, leave the first!

Description
Frequently questions

1 pole double quick connection terminal 32A 400Vac, for rigid and flexible conductors with cross-section between 0.5 - ^4mm2. Screwless quick connection by means of a push-in system that allows easy connection and disconnection of the conductor.

Its connection system allows the terminal to be reusable as many times as necessary. Ideal for secure electrical connections, they guarantee optimal termination without the need for tools while speeding up installation. Compact size.

Features

Manufacturer/Supplier: Tracon
Part number: RVOGTT11
Conductor cross-section: 0.5 - 4mm²
Rated current: 32A
Rated voltage: 400V
Number of poles: 1
Insulation material: PC (Polycarbonate)
Contact material: Tinned copper
Operating temperature: ^-40oCto ^+105oC
Dimensions: 39.3 x 10 x 8.3 mm (L x W x H)
Degree of protection: IP20

Material for professional use, install in compliance with the regulations in force at the place of installation.
