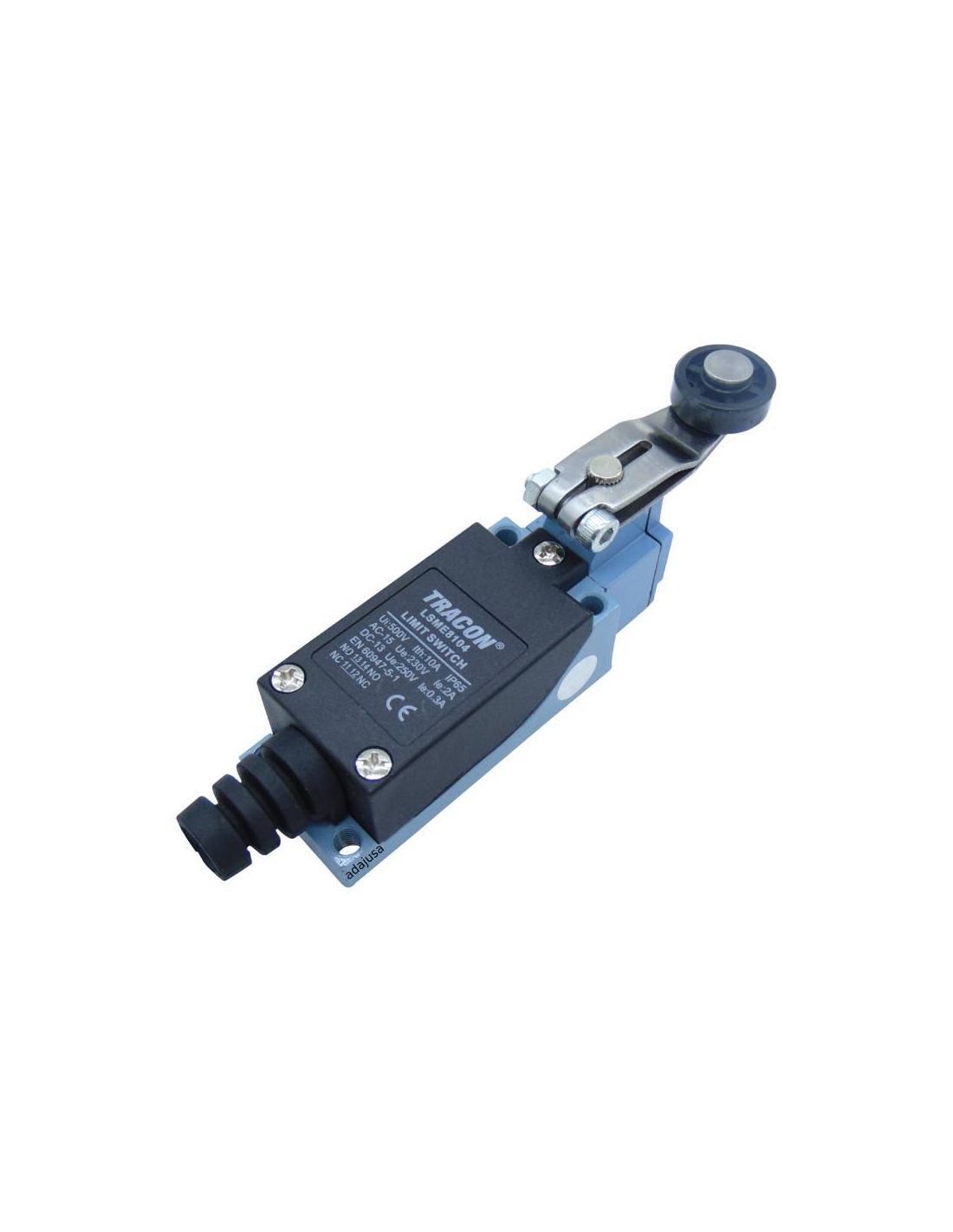

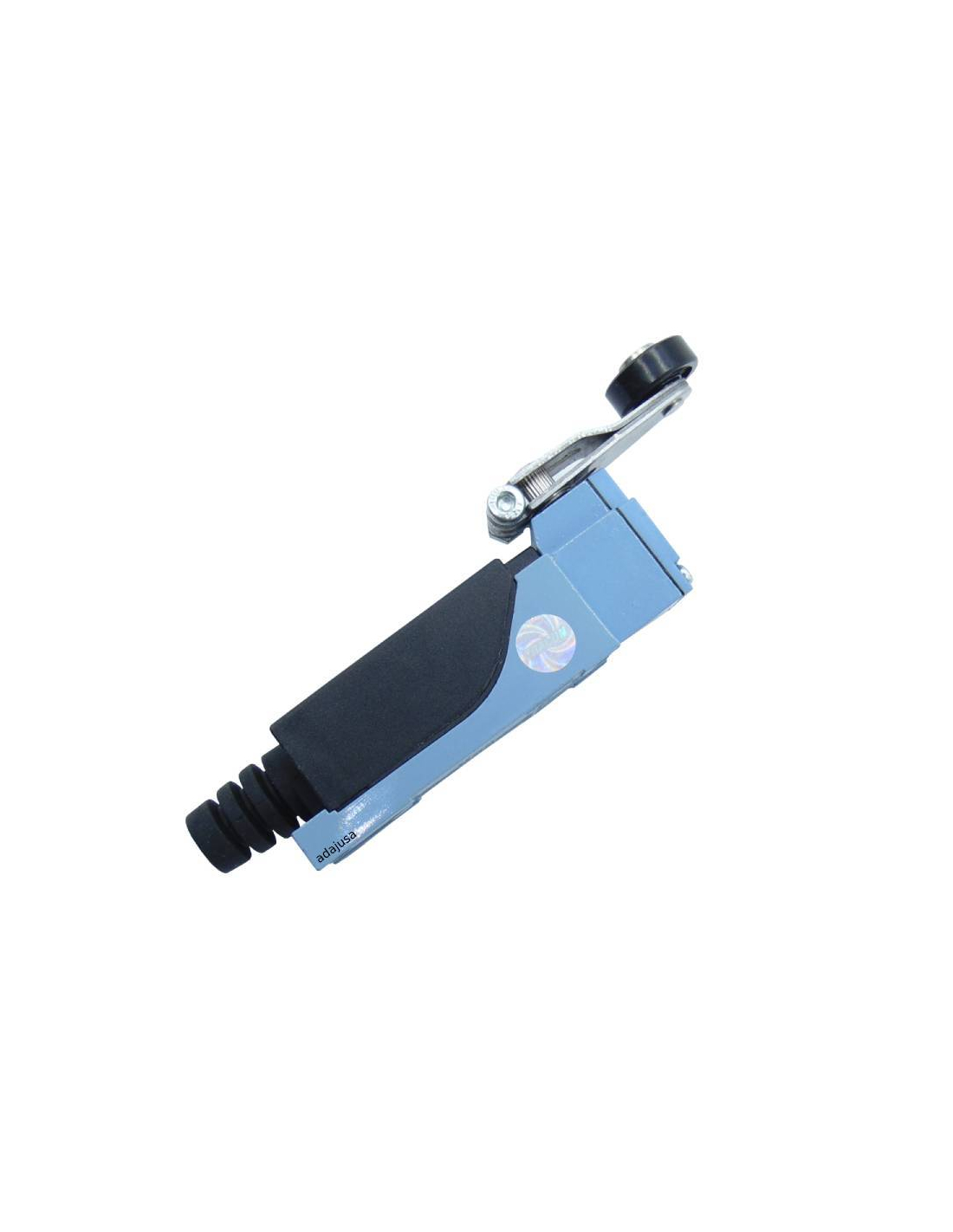

Race end lever with roller - LSME Series
Race end lever with roller - LSME Series
Race end lever with roller - LSME Series
Race end lever with roller - LSME Series

Race end lever with roller - LSME Series

€9.55 Tax included

€7.89 tax excl.

Limit switch electric, contacts 1NA+1NC, vertical lever operation with plastic sheave. Made with metal housing and plastic cover, very resistant to shocks. Diameter of the sheave 18mm.


Part number:
LSME8104

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated
.

No queries yet, leave the first!


Limit switch the end position detector is an electrical, mechanical position detector with metal housing, plastic cover and rubber inlet very resistant to shocks. The limit switch incorporates a chamber with 2 electrical contacts 1 open NO and 1 closed NC. The limit switch is operated by means of a vertical lever with plastic sheave. Diameter of the sheave 18mm.



Operating travel (mm):





Technical characteristics:

  • Manufacturer/Supplier: Tracon
  • Part number: LSME8104
  • Actuator: Lever with sheave
  • Contacts: 1NO + 1NC
  • Rated voltage: 230Vac
  • Rated current (In): 5A AC1 230V / 2A AC15 230V / 0,3A DC13 250V
  • Rated thermal current (Ith): 10A
  • Rated insulation voltage: 500Vac
  • Mechanical life: 1x106 cycles
  • Material: Metal housing, plastic cover, rubber inlet
  • Connection cable: 0.5 - 1.5mm2
  • Ambient operating temperature: -25oCto +55oC
  • Degree of protection: IP65
  • Standard: EN60947-5-1, EN60947-1

This limit switch is equivalent to or can replace these references from other manufacturers:

  • Honeywell: SZL-VL-A
  • Omron: D4D-1120N
  • Omron: D4D-2120N
  • Omron: D4D-3120N
  • SchneideroMRON: XCKD 2118 N12
  • Square D: XCKD 2118 N12
  • Telemecanique: XCK 2118 N12
  • Panasonic: AZ8104
  • Aromat / Nais: AZ8104
  • Allen Bradley: 440P-MDPS11E
  • Moujen: ME-8104

Dimensions


instalacion-final-carrera-electrico-roldana-plastico



Professional use material, install in compliance with the regulations in force at the place of installation.
This component should not be used for safety or hazardous applications.
