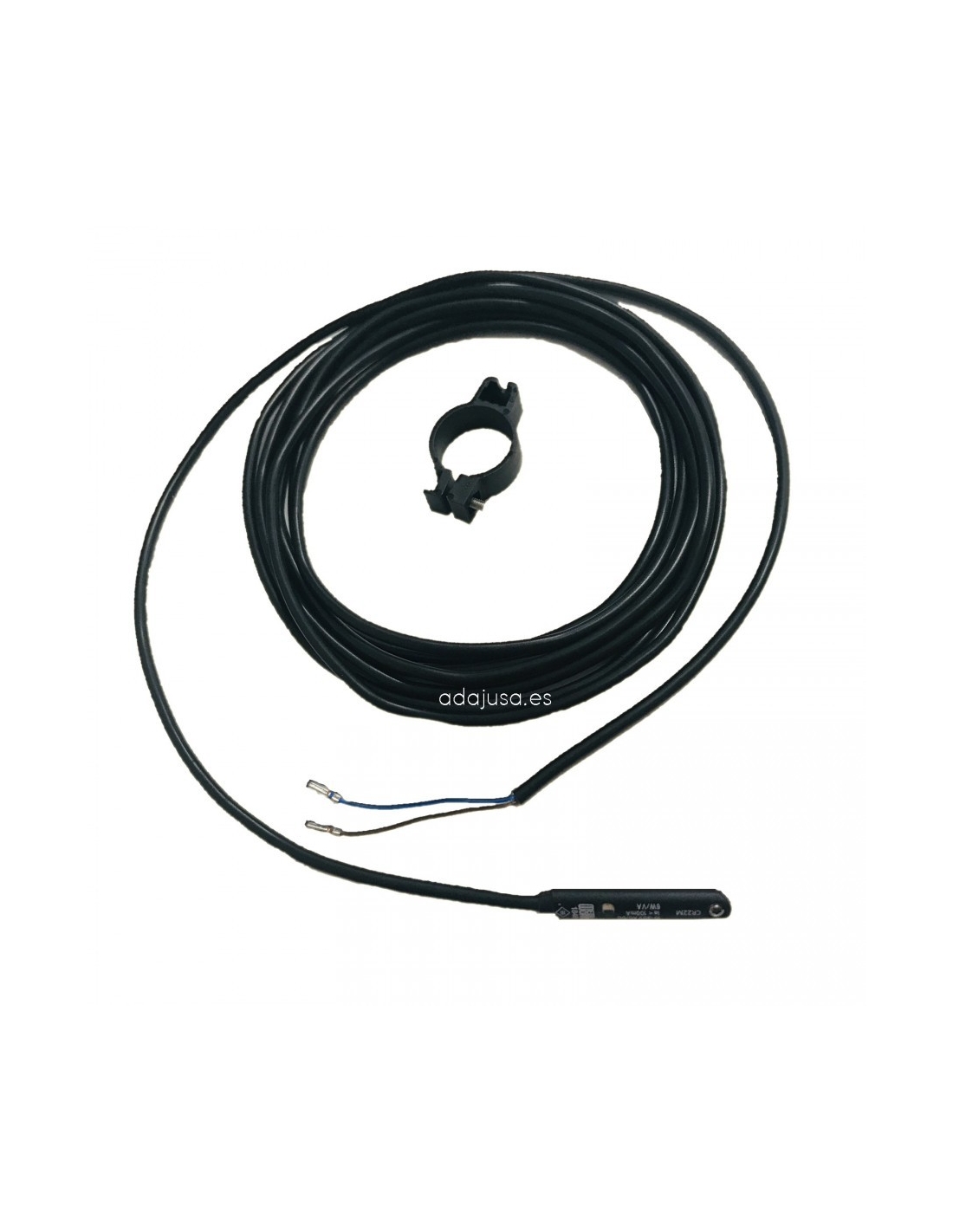

Magnetic detector with cable included and clamp for pneumatic cylinders of diameter 25 (ISO 6432).
Shipping includes:
- Magnetic hall sensor PNP 3 wire connector M8 ATEX. Reference: W0955A9
- Sensor clamp for cylinders Ø25. Reference: W0950000625
Magnetic sensor with M8 connector for mounting on pneumatic cylinders. Hall type 3 wires with PNP output. ATEX certification.
This sensor has the characteristic of being able to be mounted in the cylinder slot from above, that is, the cylinder head does not need a through opening.
It is fixed by a qaue screw pressed against the bottom of the T-slot, the fixing screw is for a 1.5mm allen wrench. The sensor can be installed in any cylinder or component with traditional T-slots.
Characteristics of the magnetic detector:
- Manufacturer: Metal Work
- Type of contact: Hall NO PNP (Normally open).
- Supply voltage (Ub): 10 ÷ 30 Vdc.
- Voltage variation: ≤10% ub.
- voltage drop: 2V ≤.
- Power (W): 3.
- Peak power (W): 6.
- Output current (mA): ≤ 100.
- Switching frequency (Hz): ≤ 400.
- Short circuit protection: Yes.
- Over-load protection: Yes.
- Investment protection: Yes.
- Regulations: EC, EN60947-5-2
- Color led status indicator: Yellow.
- Magnetic sensitivity: 2.8mT±25%.
- Frequency: ≤ 0.1mT.
- Degree of protection (according to EN60529): IP67.
- Working temperature (ºC): -25÷70.
- Sensor capsule material: PA66 + PA61/6T.
- Connector type: M8x1
- Type of connection cable with M8x1: Polyurethane; 2 x 0.14 mm2
- ATEX category: II 3G Ex nA IIC T4 Gc X
- II 3D Ex tc IIIC T135ºC Dc IP67 X
- Number of drivers: 3.
- measurement
Length 34 mm.
Width 7 mm.
Height 4 mm.
Material for professional use, install respecting the regulations in force at the place of installation.
For more information you can download the technical data sheet by clicking on the "Attachments" tab
