End of stroke flexible rod with spring - LSME series
End of stroke flexible rod with spring - LSME series

End of stroke flexible rod with spring - LSME series

€9.12 Tax included

€7.54 tax excl.

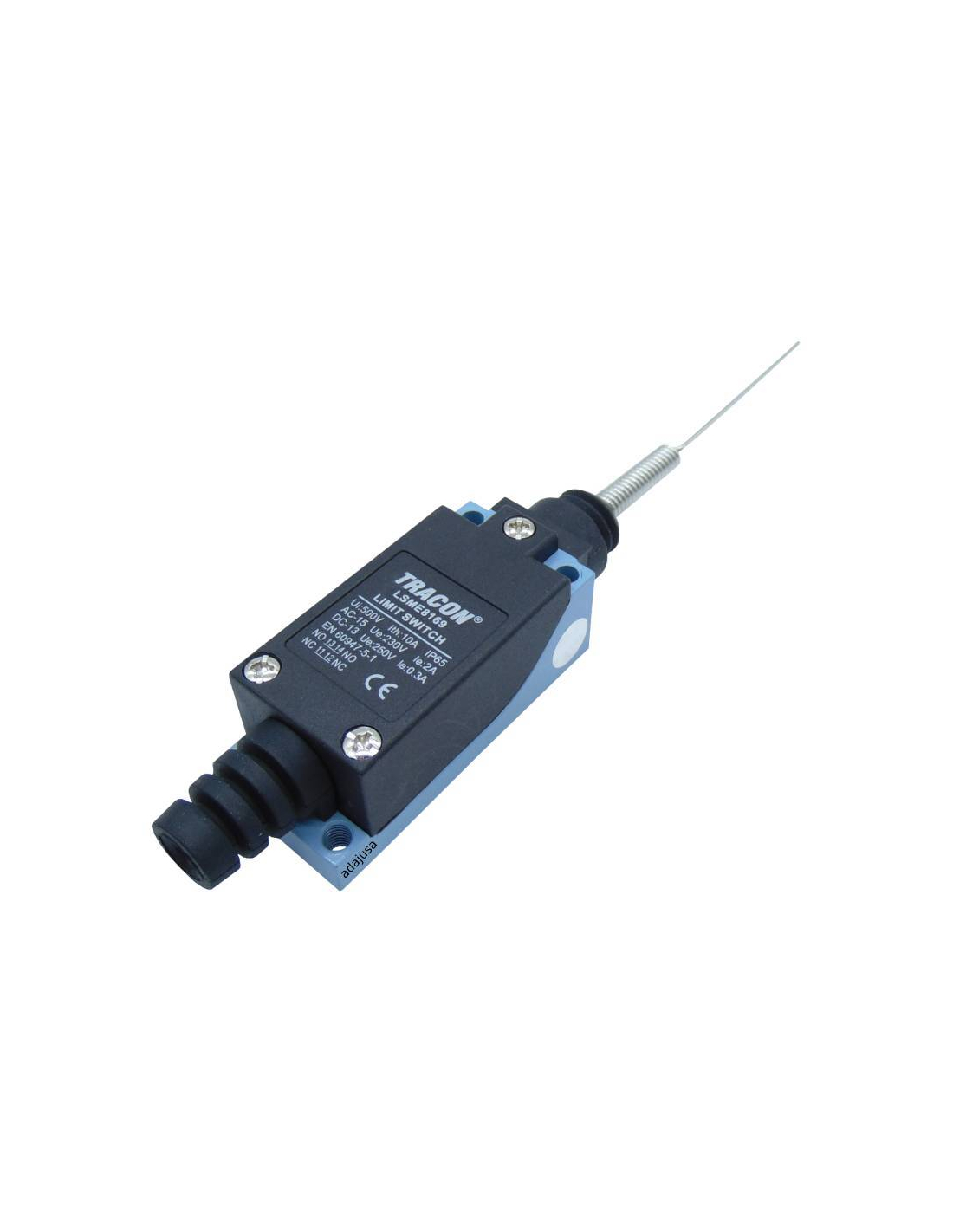

Limit switch electric, contacts 1NA+1NC, spring-loaded vertical steel rod drive. Manufactured with metal housing and plastic cover, very resistant to shocks.



Part number: LSME8169


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated .

No queries yet, leave the first!


Limit switch the end position detector is an electrical, mechanical position detector with metal housing, plastic cover and rubber inlet very resistant to shocks. The limit switch incorporates a chamber with 2 electrical contacts 1 open NO and 1 closed NC. The limit switch is operated by means of a spring-loaded vertical steel rod that can be actuated in any direction. Waterproof and oilproof, IP65 degree of protection.



Operating travel (mm):




Technical characteristics:

  • Manufacturer/Supplier: Tracon
  • Part number: LSME8169
  • Actuator: Spring-loaded vertical rod
  • Contacts: 1NO + 1NC
  • Rated voltage: 230Vac
  • Rated current (In): 5A AC1 230V / 2A AC15 230V / 0,3A DC13 250V
  • Rated thermal current (Ith): 10A
  • Rated insulation voltage: 500Vac
  • Mechanical life: 1x106 cycles
  • Material: Metal housing, plastic cover, rubber inlet
  • Connection cable: 0.5 - 1.5mm2
  • Ambient operating temperature: -25oCto +55oC
  • Degree of protection: IP65
  • Standard: EN60947-5-1, EN60947-1



This limit switch is equivalent to or can replace these references from other manufacturers:

  • Honeywell: SZL-VL-G
  • Omron: D4D-3180N
  • SchneiderxCKD 2106 N12
  • Square D: XCKD 2106 N12
  • Telemecanique: XCK 2106 N12
  • Panasonic: AZ8169
  • Aromat / Nais: AZ8169
  • Moujen: ME-8169


Dimensions





Material for professional use, install respecting the regulations in force at the place of installation.
This component should not be used safety applications or involving risk.
