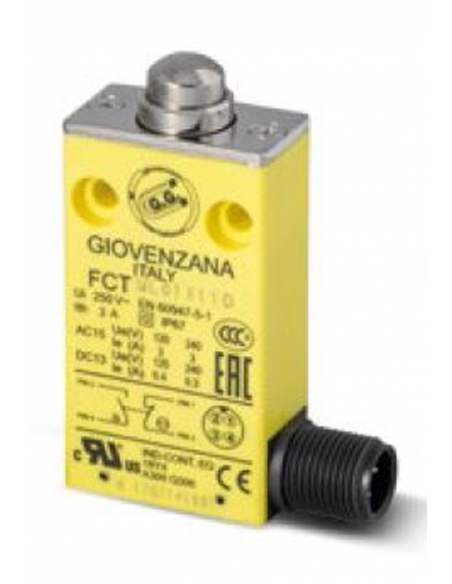

Limit Switch Short Piston series FCT with M12 Connector - Giovenzana

€24.22 Tax included

20.18 tax excl.

GIFCTML01Z11D

Short piston electric stroke end, FCT series, pushbutton drive, manufactured in thermoplastic material, positive opening contacts.

Output via M12 side connector.

2 contacts available (select from the side menu), with 2 types of performance, slow or abrupt.

Esquema contactos finales de carrera FCT

Giovenzana

Model
  • Slow break 1NC/1NO
  • Sudden rupture 1NC/1NO

No queries yet, leave the first!
Privacy
Shipments
Returns


End of stroke, FCT series, front short piston drive. The FCT series of position switches is made of thermoplastic material, with M12 side output. Designed for industrial automation, elevator and lifting applications, and general use. The installation is very simple, ensuring extreme ease of assembly.

The end of the stroke is connected by a side-mounted M12 connector.

High degree of protection, IP67, designed to be used even in the most rigid environmental situations, these end-of-run has passed the IP67 immersion test, in accordance with EN60529.

Esquemas y salidas FCT Giovenzana

Technical details:

  • Manufacturer: Giovenzana.
  • Series: FCT2L01.
  • Number of contacts: 2.
  • Positive opening contact: NC contact.
  • Employment category: AC15/600.
  • Nominal thermal current (Ith): 10A.
  • Nominal insulation voltage: 500Vac.
  • Minimum permissible current: 5mA to 5Vdc.
  • Insulation resistance: 100M min. (DC500V).
  • Contact resistance: 25m max. (Initial).
  • Drive travel for positive opening: Various.
  • Maximum switching frequency: 2 cycles/sec.
  • Housing material: Polybutene terephthalate with UL approved glass fibers.
  • Actuator material: Various.
  • Working temperature: -25oC.. 70oC.
  • Mechanical durability: 10,000,000 cycles min.
  • Electrical durability: 150,000 min cycles.
  • Fixing: 2xM4.
  • Output: M12 side connector.
  • Standards: EN60947-5-1, UL508, EN5004-7, EN1088
  • Degree of protection: IP-67.

Dimensiones final de carrera FCT 01 Giovenzana


Diagrama de accionamiento final de carrera piston corto

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

Straight Key Security Race End - Giovenzana
limit switch - position detectors - electric pedals - sensors

Straight Key Security Limit Switch - Giovenzana

Giovenzana Internacional B.V.
GISTNK02xxx
€25.20 (€21.00 tax excl.)
Safety limit switch with straight key interlock that can be inserted in 5 directions. Degree of protection IP-67. Possibility of 2-channel safety control. 2 contacts available (select from the side menu), with 2 types of actuation, slow or fast. Representative image for illustrative purposes, the item supplied will correspond to the specifications...

16 other products in the same category:

End of race lever with wheel FCT series with cable - Giovenzana End of race lever with wheel FCT series with cable - Giovenzana 2
limit switch - position detectors - electric pedals - sensors

Limit Switch lever with series FCT wheel with cable - Giovenzana

Giovenzana Internacional B.V.
GIFCT2x04xxxD
€38.42 (€32.02 tax excl.)
electric metal leverlimit switch with nylon wheel, FCT series, push button drive, made of thermoplastic material, positive opening contacts.Pre-wired with 2 m cable, side exit.2 contacts available (select from the side menu), with 2 types of action, slow or abrupt.Representative image for illustrative purposes, the article supplied will correspond to the...
MZS1303 Giovenzana Microswitch - adajusa
limit switch - position detectors - electric pedals - sensors

Pushbutton microswitch MZS1303 lever with wheel - Giovenzana

Giovenzana Internacional B.V.
GI-MFI1303
€7.22 (€6.02 tax excl.)
Lever actuated microswitch with wheel, 1 changeover contact (NO/NC). High load capacity and sudden rupture. Manufactured under strict European regulations. Equipped with a type of shot that ensure a high degree of precision. Fast and reliable standalone switching suitable for use in industrial and general purpose applications. Reference: MZS1303
Digital Vacuum switch 2 PNP outputs + analog output Aignep PR02P02P2 - Aignep Digital Vacuum switch 2 PNP outputs + analog output Aignep PR02P02P2 - Aignep 2
Pressure switches, vacuum switches and flowmeters

Digital Vacuum switch 2 PNP outputs + 1 analog output - Aignep

Aignep
PR02V02P2
€122.53 (€102.11 tax excl.)
Electronic Vacuum switch for digital measurement of the vacuum level, screen with display that shows the data in two possible colors (red or green) depending on the programmed conditions. It has two PNP type outputs and one analog output (4 ~ 20mA). Operating voltage 12-24Vdc. Large screen that allows easy reading of measurement units. IP65 protection...
Electric pedal - Giovenzana Electric pedal - Giovenzana 2
limit switch - position detectors - electric pedals - sensors

Electric pedal - Giovenzana

Giovenzana Internacional B.V.
GI-IP7006I
€51.47 (€42.89 tax excl.)
Electric pedal of instant action and without protective cover, made of thermoplastic. 1 no (NA) and another nc (NC). Pedal switches are used as control switches for machines and equipment when the operator needs to have a free hand. Color: red (RAL 3020) Reference: IP7006I Representative image for illustrative purposes, the item supplied will...
FTN Series Roller Lever Race End - Giovenzana
FTN Series Race Finals - Giovenzana

Roller Lever Race End series FTN - Giovenzana

Giovenzana Internacional B.V.
GIFTN138XXX
€13.04 (€10.87 tax excl.)
limit switch electric lever with roldana, FTN series, made of thermoplastic material, according to EN 50047, suitable for safety applications, positive opening contacts. 2 contacts available (select from the side menu), with 2 types of action, slow or abrupt. Representative image for illustrative purposes, the article supplied will correspond to the...

Customers who bought this product also bought:

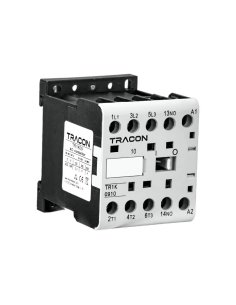

Three-phase 3-pole mini contactor with 9A coil 400Vac TR1K0910V7 | ADAJUSA | price
