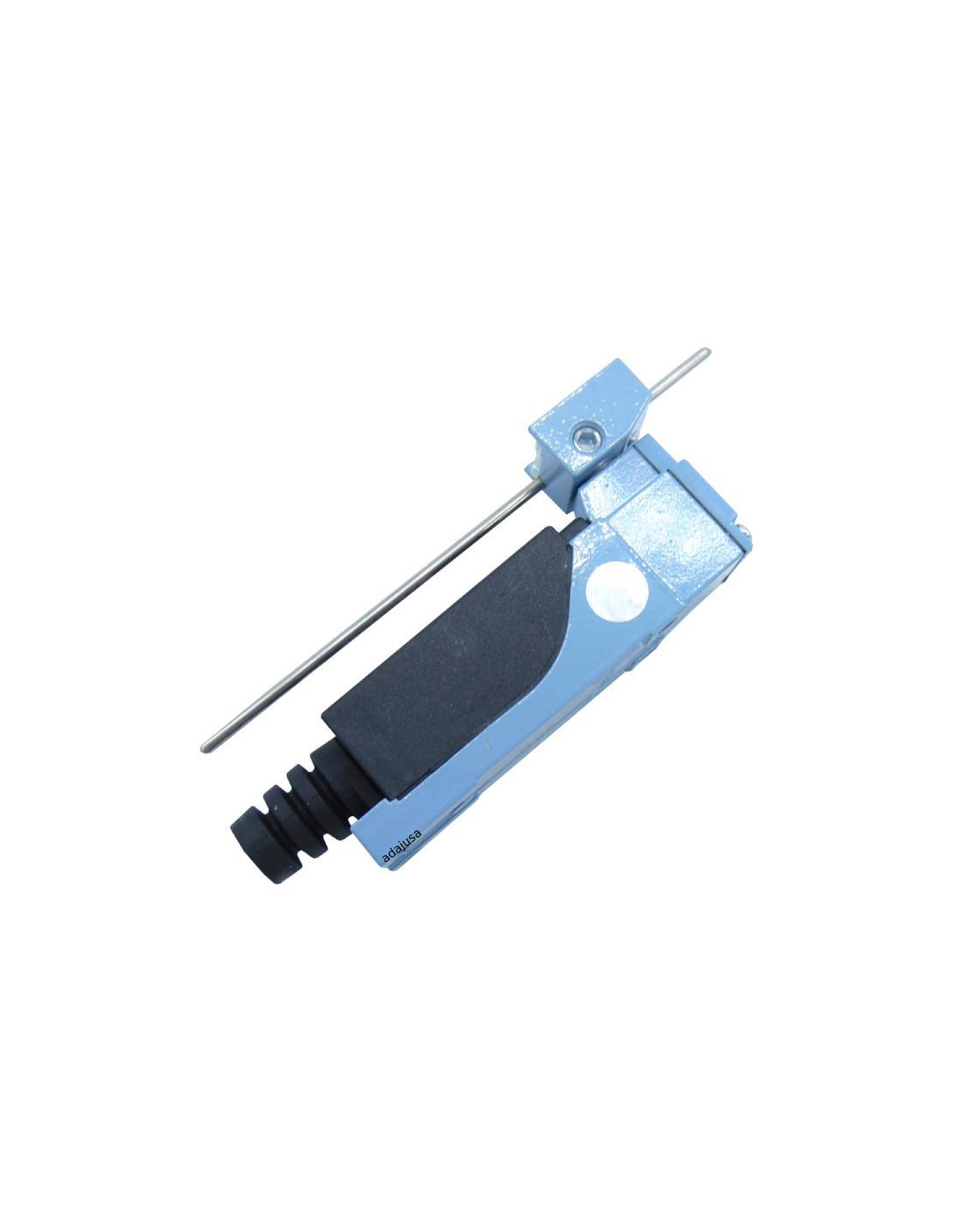

Limit switch electric, contacts 1NA+1NC, height-adjustable vertical metal lever drive. Manufactured with metal housing and plastic cover, very resistant to shocks.



Part number: LSME8107


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated .

No queries yet, leave the first!


Limit switch the end position detector is an electrical, mechanical position detector with metal housing, plastic cover and rubber inlet very resistant to shocks. The limit switch incorporates a chamber with 2 electrical contacts 1 open NO and 1 closed NC. The limit switch is operated by means of a height-adjustable vertical metal lever. Waterproof and oilproof, IP65 degree of protection.



Operating travel (mm):



Technical characteristics:

  • Manufacturer/Supplier: Tracon
  • Part number: LSME8107
  • Actuator: Vertical lever adjustable in height
  • Contacts: 1NO + 1NC
  • Rated voltage: 230Vac
  • Rated current (In): 5A AC1 230V / 2A AC15 230V / 0,3A DC13 250V
  • Rated thermal current (Ith): 10A
  • Rated insulation voltage: 500Vac
  • Mechanical life: 1x106 cycles
  • Material: Metal housing, plastic cover, rubber inlet
  • Connection cable: 0.5 - 1.5mm2
  • Ambient operating temperature: -25oCto +55oC
  • Degree of protection: IP65
  • Standard: EN60947-5-1, EN60947-1

This limit switch is equivalent or can replace these references from other manufacturers:

  • Honeywell: SZL-VL-C
  • Panasonic: AZ8107
  • Aromat / Nais: AZ8107
  • Moujen: ME-8107



Dimensions:



instalacion-final-carrera-electrico-roldana-plastico




Material for professional use, install respecting the regulations in force at the place of installation.
This component should not be used safety applications or involving risk.
