Emergency stop pushbutton diameter 40 mm
Emergency stop pushbutton 40 mm full
Emergency stop pushbutton diameter 40 mm
Emergency stop pushbutton 40 mm full

Full-size screen stop pushbutton 40 mm

€2.57 Tax included

€2.12 tax excl.

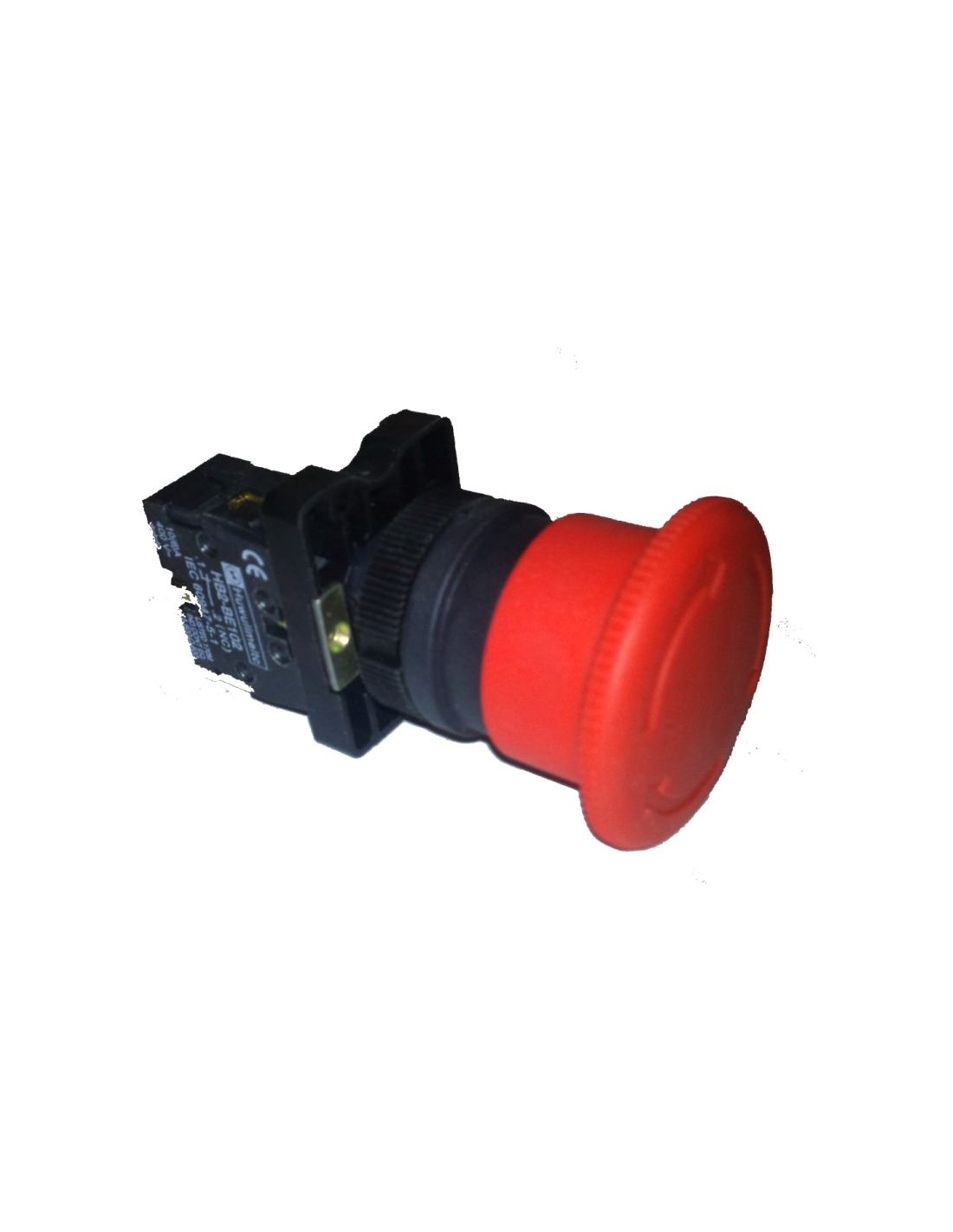

Stop pushbutton type mushroom-head, made of plastic material, diameter 40 mm and with interlocking, twist release, 1 closed contact (NC).

The supply includes the complete pushbutton with one closed contact.

Part number: NG22-ES542

Esquema electrico pulsador de emergencia

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Stop pushbutton type mushroom-head, 40mm diameter and with interlocking, unlocking by turning, 1 closed contact (NC). Possibility of adding additional contacts.

The supply includes the complete push button with one closed contact.

Characteristics:

  • Manufacturer/Supplier: Denor/Mixvill
  • Equivalent reference: XB2-ES542 / NG22-ES542
  • Diameter of the mushroom-head: 40mm
  • Unlocking mode: by twist
  • Material: Plastic
  • Contact: 1 positive break NC contact (possibility to mount additional contacts)
  • Bore diameter: 22mm
  • Rated working current (Ith): 10 A
  • Working current at 220 Vac: 4,5 A
  • Maximum working voltage: 415 V
  • Contact resistance: 50 mOhm
  • Degree of protection: IP65 (Front mounted)

This push button can receive additional contacts, a maximum of 4 contacts can be installed.

Dimensiones pulsador parada plastico ES542 Adajusa

Material for professional use, install in compliance with the regulations in force at the place of installation.
