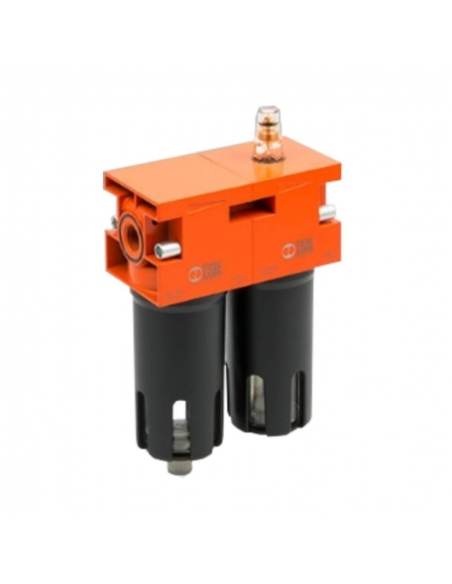

Metal filter group (Filter + Lubricator) New Deal Metal Work - ADAJUSA

Metal filter group (Filter + Lubricator) New Deal Metal Work - ADAJUSA

Pneumatic filtering and lubrication unit 1/4 degree filtering 20 semi-automatic purge New Deal series - Metal Work

€71.72 Tax included

€59.77 tax excl.

1233006

Pneumatic filtration and greasing unit with 1/4 New Deal series thread, with semi-automatic purge. Made of high-resistance technopolymer and threads on metal support

Reference: 1233006

Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!

Pneumatic filtration and greasing unit with 1/4 New Deal series thread, with semi-automatic purge. Made of high-resistance technopolymer and threads on metal support

Among the main characteristics of this filter group, it has a great flow performance compared to its size and reduced weight, satisfying the current demand for miniaturization and performance. The filter discharge system is by means of a semi-automatic purge of condensation, independent of pressure and flow.

Characteristics of the filtering group :

Manufacturer: Metal Work
Manufacturer reference: F+L 1/4 20 RMSA
Code: 1233006
Thread size: 1/4"
Lubrication: Fog.
Condensate drain type: RMSA (manual condensate drain and automatic drain when pressure is removed)
Metal glass with external viewer.
Filtration degree ( μm) : 20
Maximum inlet pressure (MPa / bar / psi): 1.8 / 18 / 261
Flow rate at 6.3 bar (0.63 MPa ÷ 91 psi) ∆P 0.5 bar (0.05 MPa ÷ 7 psi) ( Nl/min): 600
Flow rate at 6.3 bar (0.63 MPa ÷ 91 psi) ∆P 1 bar (0.1 MPa ÷ 14 psi) ( Nl/min): 1000
max temperature at 1 MPa; 10 bar; 145psi ( °C): 50
Wall fixing screws: M4x40
Fluid: compressed air

For other sizes or references: consult.

Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.

Newdeal group file

Download (3.12MB)
