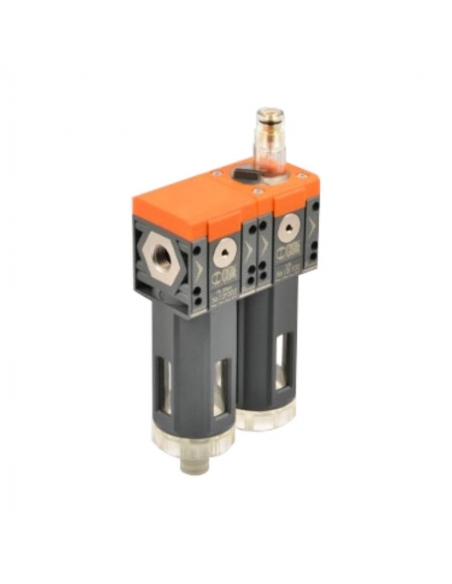

Pneumatic filtering and lubrication unit 1/4 filtering degree 20 automatic drain Syntesi series - Metal Work

Pneumatic filtration and greasing unit with 1/4 thread Syntesi series size SY1, with automatic drain. Made of high-resistance technopolymer and threads on metal support

Among the main characteristics of this filter group, it has a great flow performance compared to its size and reduced weight, satisfying the current demand for miniaturization and performance. The filter discharge system is through automatic condensation purge, independent of pressure and flow.

Characteristics of the filter group:

• Manufacturer: Metal Work
• Manufacturer reference: FIL+DEP SY1 1/4 20 RA
• Code: 5612F50L102
• Number of elements: 2 (F+L).
• Thread size: 1/4.
• Filtering degree: 20 μm.
• Condensation discharge: RA
• Maximum inlet pressure (bar/Mpa/psi): 15 / 1.5 / 217
• Flow rate at 6.3 bar (0.63 MPa; 91 psi) ∆P 0.5 bar (0.05 MPa; 7 psi) ( Nl/min): 860
• Flow rate at 6.3 bar (0.63 MPa, 91 psi) ∆P 1 bar (0.1 MPa, 14 psi) (Nl/min): 1450
• temperature at 10 bar; 1MPa; 145 psi ( °C): 10 ÷ +50
• Filter bowl capacity: 30 cm3
• Coupling for additional air intakes: 1/8", front and rear
• Flow rate for additional air intakes: 500-450 Nl/min.
• Mounting position: Vertical.
• Chargeable oil quantity: 60 cm3
• Wall fixing screws: Number 2 M4 screws

For other sizes or references: consult.

Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.
