Pneumatic filter group 1/4 regulation 0-12 bar automatic drain series New Deal - Metal Work

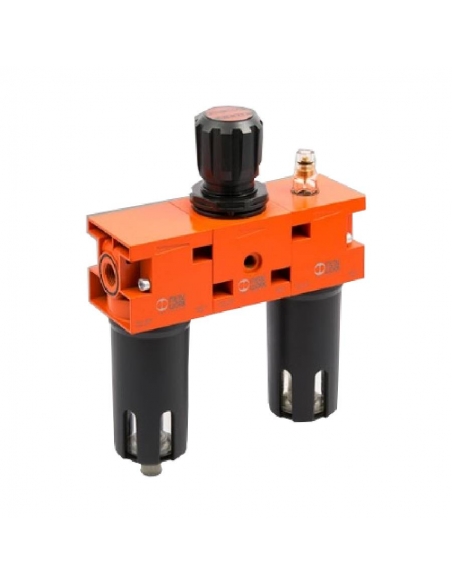

1/4 filter group, 1/4 maintenance unit for pneumatic applications, automatic drain, in 3 modules (F+R+L).
Among the main characteristics of this filter group, it has a great flow performance compared to its size and reduced weight, satisfying the current demand for miniaturization and performance. Made of aluminum and with plastic tanks with metal protection.
The type of purge is manual and automatic when the pressure is removed. The filter group has a 50 μm filter element.

Note: the pressure gauge is not included in the supply, it must be ordered separately.

Characteristics of the filter group:

• Manufacturer: Metal Work
• Reference: FRL 1/4 50 012 SAC
• Manufacturer reference: 1224416
• Thread size: 1/4"
• Regulation field: 0 to 12 bar .
• Maximum inlet pressure: 18 bar .
• Semi-automatic and automatic condensate drain.
• Metal cup with external viewer
• Filtration degree: 50μm.
• Condensation drain type: SAC
• Flow rate at 6.3 bar (0.63 MPa; 91 psi) ∆P 0.5 bar (0.05 MPa; 7 psi) ( Nl/min): 140
• Flow rate at 6.3 bar (0.63 MPa; 91 psi) ∆P 1 bar (0.1 MPa; 14 psi) ( Nl/min): 400
• Wall fixing screws: M4 x 40.
• Working temperature: -10 to +50ºC.

Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.
