Regulator pressure with pressure gauge and lockable 1/2 0-8 bar size 2 series FRL EVO - Aignep

Regulator pressure with pressure gauge and lockable 1/2 0-8 bar size 2 series FRL EVO - Aignep

€45.02 Tax included

€37.21 tax excl.

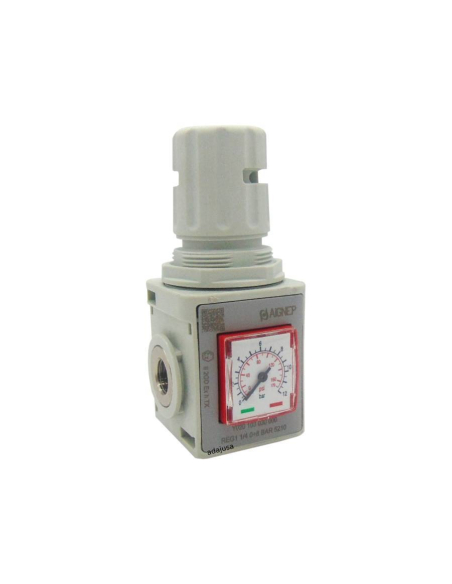

Regulator 1/2 pressure regulator with integrated pressure gauge, range 0-8 bar, size 2, technopolymer body and metal endings. Allows stability of the outlet pressure at the preset pressure. Possibility of fixing by means of lateral holes. Padlocking system. Made in Italy.

Series: FRL Evo
Reference: Y020205030000

Logotipo Aignep normativa

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Regulator 1/2 pressure regulator with integrated pressure gauge, range 0-8 bar. Allows stability of the outlet pressure at the preset pressure starting from an equal or higher inlet pressure. Compact size (T2). Mountingby means of side holes. Knob with padlock and possibility of coupling several regulators in series with individual pressure regulation.




REGULAADOR BLOQUEO FRL EVO




It can be mounted in many different ways, with the appropriate accessories.

Technical characteristics.

  • Manufacturer Aignep
  • Part number: Y020205030000
  • Regulator size: size 2.
  • Threaded connection size: 1/2".
  • Regulating range: 0-8 bar.
  • Maximum inlet pressure: 15 bar.
  • Flow rate at 6.3 bar (0.63 MPa; 91 psi) ∆P 1 bar (0.1 MPa; 14 psi) (Nl/min): 4000
  • Fluid: Compressed air or other inert gases
  • Wall fastening screws: M5x15
  • Mounting position: Vertical.
  • Working temperature: -10 to +50ºC.
  • Mounting accessories both individually and in series: not included

For other sizes or references: consult us.



Dimensiones regulador syntesi talla 1 Metal Work

CAUDAL REGULADOR T1

Material for professional use, install in compliance with the regulations in force at the place of installation.

For further information you can download the technical data sheet by clicking on the "Attachments" tab
