Regulator pressure 1/2 0-12 bar complete Aignep FRL Evo series : ADAJUSA : price

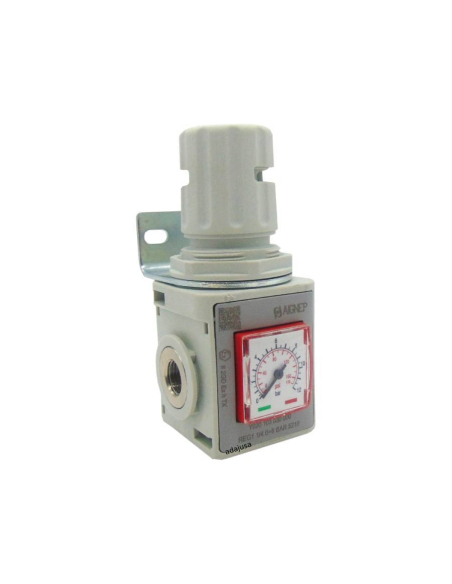

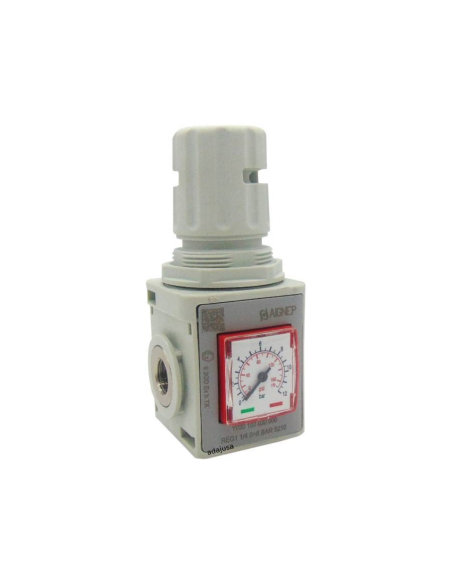

Regulator pressure with pressure gauge and lockable 1/2 0-12 bar complete size 2 FRL EVO - series Aignep

Name: Regulator pressure with pressure gauge and lockable 1/2 0-12 bar complete size 2 FRL EVO - series Aignep
Brand: Aignep
SKU: PK-Y020205040000
Price: 47.59 EUR
Availability: InStock

€47.59 Tax included

39.66 tax excl.

PK-Y020205040000

Regulator with integrated 1/2 fullpressure gauge , with regulation between 0-12 bar, size 2, technopolymer body and metal endings, extreme reliability. Allows stability of the outlet pressure at the preset pressure. Possibility of fixing by means of lateral holes. Padlocking system. Made in Italy.

Series: FRL Evo
Reference: PK-Y020205040000

Logotipo Aignep
normativa

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

Regulator pressure 1/2 0-12 bar Aignep FRL Evo series : ADAJUSA : price

Regulator pressure with pressure gauge and lockable 1/2 0-12 bar size 2 FRL EVO series - Aignep

€46.50

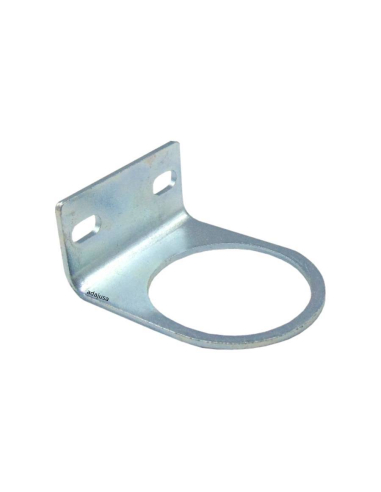

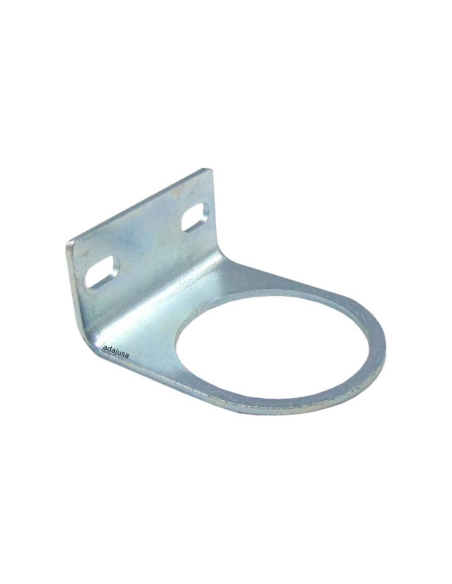

Squad fixing for Aginep FRL EVO series filtering unit : ADAJUSA : price

Fixing bracket size 2 for filtering group 3/8 and 1/2 FRL EVO series - Aignep

€1.09

No queries yet, leave the first!

Privacy

Shipments

Returns

Regulator pressure regulator with integrated 1/2 fullpressure gauge , regulation 0-12 bar, body made of high resistance technopolymer, and with metallic endings. Allows stability of the outlet pressure to the preset pressure starting from an equal or higher inlet pressure. Compact size (T2). Fasteningby means of lateral holes. Knob with padlockable lock.

REGULAADOR BLOQUEO FRL EVO

Dimensiones escuadra grupo friltrante MINI FRL Aignep Adajusa

Delivery includes:

Regulator pressure regulator with integrated pressure gauge
Squad size 2 mounting brackets

Technical characteristics of the regulator:

Manufacturer Aignep
Part number: Y020205040000
Regulator size: size 2.
Threaded connection size: 1/2".
Regulating range: 0-12 bar.
Maximum inlet pressure: 15 bar.
Flow rate at 6.3 bar (0.63 MPa; 91 psi) ∆P 1 bar (0.1 MPa; 14 psi) (Nl/min): 4000
Fluid: Compressed air or other inert gases
Wall mounting screws: M5x15
Mounting position: Vertical.
Working temperature: -10 to +50ºC.

Dimensiones regulador syntesi talla 1 Metal Work

CAUDAL REGULADOR T1

Material for professional use, install in compliance with the regulations in force at the place of installation.

For further information you can download the data sheet by clicking on the tab "Attachments"

Catalogo FRL EVO

Download (4.94MB)
