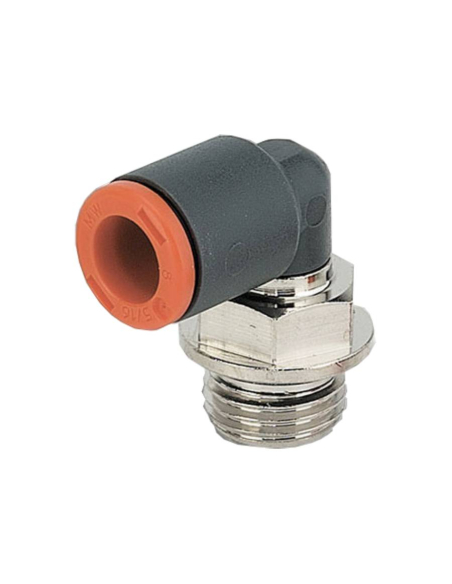

Cylindrical swivel elbow fitting M5 tube 4 technopolymer - Metal Work

Name: Cylindrical swivel elbow fitting M5 tube 4 technopolymer - Metal Work
Brand: Metal Work
SKU: 2L34001
Price: 2.52 EUR
Availability: InStock

€2.52 Tax included

2.1 tax excl.

2L34001

Racor rotating elbow M5 Male for tube ØExt 4mm. Male cylindrical thread, with O-ring included. Fast, very simple and efficient connection that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention. Racor valid for pneumatic and vacuum installations.

Reference: 2L34001

Logotipo Metal Work

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

M5 male swivel elbow fitting for 4mm. Very simple and effective connection that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention; the clamping spring, turn the tube on without engraving or deforming it allowing for greater simplicity in the operation of connection or disconnection of the tube fitting. In the fittings the fitting ring has screwdriver slots for easy disconnection in finger-inaccessible applications.

Manufacturer: Metal Work.
Manufacturer's reference: 2L34001.
Thread: M5 Cylindrical.
Tubeexterior: 4mm.
Fluid: Vacuum - Compressed air.
Operating pressure: -0.99 bar to 16 bar.
Material: Chromed brass and technopolymer.
Retention gasket: NBR.
Clamping spring: stainless steel.
Working temperature: -20oC to +80oC.

For other references consult.

Dimensiones racores codo roscados Metal Work

Material for professional use, install in compliance with the regulations in force at the place of installation.

Racores tecnopolimero MW

Download (1.3MB)

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

Cylindrical swivel elbow fitting 1/8 tube 4 technopolymer - Metal Work

Metal Work

2L34002

€2.24 (€1.87 tax excl.)

1/8 swivel elbow fitting for tube -Ht 4mm. Male cylindrical thread, with O-ring included. Fast, very simple and effective connection that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention. Valid fitting for pneumatic and vacuum installations. Manufacturer: METAL WORK. Reference: 2L34002...

Fittings swivel elbow

Cylindrical swivel elbow fitting 1/8 tube 6 technopolymer - Metal Work

Metal Work

2L34007

€2.24 (€1.87 tax excl.)

1/8 swivel elbow fitting for tube -Int 6mm. Male cylindrical thread, with O-ring included. Fast, very simple and effective connection that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention. Valid fitting for pneumatic and vacuum installations. Manufacturer: METAL WORK. Reference: 2L34007...

Fittings swivel elbow

Cylindrical swivel elbow fitting M5 tube 6 technopolymer - Metal Work

Metal Work

2L34006

€2.58 (€2.15 tax excl.)

Racor rotating elbow M5 Male for tube ØExt 6mm. Male cylindrical thread, with O-ring included. Fast, very simple and efficient connection that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention. Racor valid for pneumatic and vacuum installations. Reference: 2L34006 Representative image for...

16 other products in the same category:

Fittings swivel elbow

Female cylindrical rotating elbow fitting 1/4 tube 8mm technopolymer - Metal Work

Metal Work

2L34F10

€3.89 (€3.24 tax excl.)

Swivel elbow fitting with 1/4" cylindrical female thread for 8mm tube, made of technopolymer and brass. Very simple and effective connection that allows reconnection thousands of times without compromising perfect pneumatic and mechanical retention . Reference: 2L34F10 Representative image for illustrative purposes, the item supplied will correspond to...

Fittings swivel elbow

Female cylindrical adjustable elbow fitting 3/8 tube 8mm Series 50000 - Aignep

Aignep

50106838

€4.06 (€3.38 tax excl.)

3/8 adjustable elbow fitting for 8mm tube. Female cylindrical thread, made of chromed brass. Very simple and effective connection that allows reconnection thousands of times without compromising perfect pneumatic and mechanical retention . Series: 50000 Reference: 50106 8 3/8 Representative image for illustrative purposes, the item supplied will...

Fittings swivel elbow

Male L-shaped conical fitting M8X1 tube 6mm for lubrication and greasing Series 58000...

Aignep

581006M8X1

€3.23 (€2.69 tax excl.)

Male L-shaped conical fitting, M8X1 metric, for 6mm diameter tube, made of nickel-plated brass. Fittings suitable for applications related to centralized lubrication and greasing of mobile or industrial machinery. They are suitable for high temperature and pressure environments of up to 150 bar with fluids.The “high pressure” series with specific threads...

Fittings swivel elbow

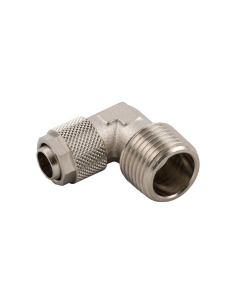

Conical male elbow fitting 1/2 tube 12/10 Series 1000 - Aignep

Aignep

1100121012

€3.35 (€2.79 tax excl.)

Male elbow fitting with 1/2 conical thread for 12/10 tube , made of nickel-plated brass. These fittings allow quick and extremely safe connection in pneumatic and fluid applications. Series: 1000 Reference: 1100 12/10 1/2 Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

Fittings swivel elbow

Female cylindrical adjustable elbow fitting 3/8 tube 10mm Series 55000 - Aignep

Aignep

551061038

€3.72 (€3.10 tax excl.)

Adjustable elbow fitting with 3/8 cylindrical thread for 10mm tube , made of technopolymer and nickel-plated brass, the tube extraction ring in acetal resin. Very simple and effective connection that allows reconnection thousands of times without compromising perfect pneumatic and mechanical retention . Series: 55000 Reference: 55106 10 3/8...

Fittings swivel elbow

1/8 male conical adjustable elbow fitting, 6mm tube, for lubrication and greasing,...

Aignep

58111618

€4.18 (€3.48 tax excl.)

Adjustable male conical elbow fitting with 1/8" thread for 6mm diameter tube, made of nickel-plated brass. Fittings suitable for applications related to centralised lubrication and greasing on mobile or industrial machinery. They are suitable for high temperature and pressure environments of up to 150 bar with fluids. The “high pressure” series with...

L fitting tube 4mm with long spike 4mm technopolymer - Metal Work | ADAJUSA

Fittings swivel elbow

L fitting for 4mm tube with 4mm long technopolymer spike - Metal Work

Metal Work

2L47001

€3.55 (€2.96 tax excl.)

90° elbow fitting for 4mm external diameter tube with 4mm extended spike , made of technopolymer and brass. Very simple and effective connection that allows reconnection thousands of times without compromising perfect pneumatic and mechanical retention .Reference: 2L47001 Representative image for illustrative purposes, the item supplied will correspond...

Fittings swivel elbow

Female cylindrical rotating elbow fitting 1/8 tube 8mm technopolymer - Metal Work

Metal Work

2L34F09

€3.49 (€2.91 tax excl.)

Swivel elbow fitting with 1/8 cylindrical female thread for 8mm tube, made of technopolymer and brass. Very simple and effective connection that allows reconnection thousands of times without compromising perfect pneumatic and mechanical retention . Reference: 2L34F09 Representative image for illustrative purposes, the item supplied will correspond to...

Fittings swivel elbow

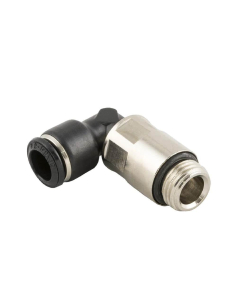

Extended swivel elbow fitting 1/8 pipe 8mm Series 55000 - Aignep

Aignep

55126818

€2.27 (€1.89 tax excl.)

Cylindrical extended swivel elbow fitting with 1/8 male thread for 8mm external diameter pipe, with O-ring included, made of technopolymer and nickel-plated brass, the pipe extraction ring is made of acetal resin. Very efficient connection simple that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical...

Fittings swivel elbow

Extended cylindrical adjustable elbow fitting 1/8 tube 6mm Series 50000 - Aignep

Aignep

50126618

€2.82 (€2.35 tax excl.)

Adjustable elbow fitting with 1/8 male cylindrical thread for 6mm diameter tube with O-ring included. Quick, very simple and effective connection that allows reconnection thousands of times without compromising perfect pneumatic and mechanical retention . Fitting valid for pneumatic and vacuum installations. Series: 50000 Reference: 50126 6 1/8...

Cylindrical rotating elbow fitting 1/2 tube 14mm - Metal Work | ADAJUSA

Fittings swivel elbow

Cylindrical swivel elbow fitting 1/2 tube 14mm - Metal Work

Metal Work

2031019

€7.69 (€6.41 tax excl.)

Swivel elbow fitting with 1/2 cylindrical male thread for 14mm diameter tube, made of brass . Very simple and effective connection that allows reconnection thousands of times without compromising perfect pneumatic and mechanical retention .Reference: 2031019 Representative image for illustrative purposes, the item supplied will correspond to the...

Adjustable male conical elbow fitting M10X1.5 tube 6mm for lubrication and greasing Series 58000 High pressure - Aignep | ADAJUS

Fittings swivel elbow

Male conical adjustable elbow fitting M10X1.5 tube 6mm for lubrication and greasing...

Aignep

581116M10X15

€4.18 (€3.48 tax excl.)

Adjustable male conical elbow fitting, metric M10X1.5, for 6mm diameter tube, made of nickel-plated brass. Fittings suitable for applications related to centralized lubrication and greasing of mobile or industrial machinery. They are suitable for high temperature and pressure environments of up to 150 bar with fluids. The “high pressure” series with...

Male adjustable elbow fitting 1/4 tube 8/6 Series 1000 - Aignep | ADAJUSA

Fittings swivel elbow

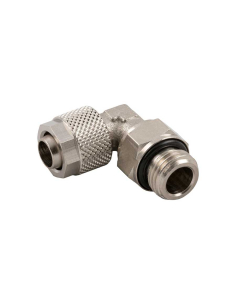

Adjustable male elbow fitting 1/4 tube 8/6 Series 1000 - Aignep

Aignep

11158614

€2.47 (€2.06 tax excl.)

Adjustable elbow fitting with 1/4" cylindrical male thread for 8/6" diameter tube, body made of nickel-plated brass. These fittings allow for fast and extremely safe connection in pneumatic and fluid applications. Series: 1000 Reference: 1115 8/6 1/4 Representative image for illustrative purposes, the item supplied will correspond to the specifications...

Fittings swivel elbow

1/4 male conical adjustable elbow fitting, 6mm tube, for lubrication and greasing,...

Aignep

58111614

€3.22 (€2.68 tax excl.)

Adjustable male conical elbow fitting with 1/4" thread for 6mm diameter tube, made of nickel-plated brass. Fittings suitable for applications related to centralised lubrication and greasing on mobile or industrial machinery. They are suitable for high temperature and pressure environments of up to 150 bar with fluids. The “high pressure” series with...

Fittings swivel elbow

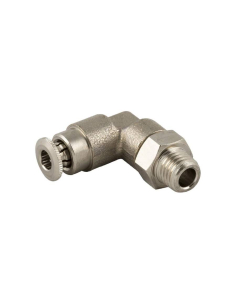

Male conical adjustable elbow fitting M8X1.25 tube 4mm for lubrication and greasing...

Aignep

581114M8X125

€4.08 (€3.40 tax excl.)

Adjustable male conical elbow fitting, metric M8X1.25 for 4mm diameter tube, made of nickel-plated brass. Fittings suitable for applications related to centralized lubrication and greasing of mobile or industrial machinery. They are suitable for high temperature and pressure environments of up to 150 bar with fluids. The “high pressure” series with...

Swivel L fitting 10mm tube with short nipple 12mm Series 55000 - Aignep| ADAJUSA

Fittings swivel elbow

Swivel L fitting 10mm tube 10mm with short nipple 12mm Series 55000 - Aignep

Aignep

551401012

€1.28 (€1.07 tax excl.)

90° elbow fitting for 10mm O.D. pipe with 12mm short smooth nipple, made of technopolymer. Very efficient connection simple that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention. Series: 55000Reference: 55140 10 12 Representative image for illustrative purposes, the item supplied will...

Customers who bought this product also bought:

Tools

Cable peeling and cutting tool from 0.08 to 6 mm2

OMU System

BL-STR

€18.48 (€15.40 tax excl.)

Tool for cutting and peeling cables of section between 0.08 - 6 mm2. It has an ergonomic and non-slip handle for proper handling and precise cable peeling. Reference: BL-STRRepresentative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Flow regulator, fittings

Spike inserted tube diameter 4 to diameter 6 - Metal Work

Metal Work

2009001

€2.15 (€1.79 tax excl.)

Reduction nipple inserted tube 4 to fitting 6. Allows the connection of a tube of 4 on a connection of 6. Representative image for illustrative purposes, the article supplied will correspond to the indicated specifications.

1/4 4-way valve 3 positions lever MVHC-201-4H-8A exhaust centers

1/4 4-way valve 3 positions lever MVHC-201-4H-8A exhaust centers 2

Lever-operated valves

Valve 1/4 4-way 3 positions e.g. rotary lever Size 1 - Mindman

Mindman

MVHC2014H08A

€36.65 (€30.54 tax excl.)

1/4 valve manually operated by rotary lever. 4 ways 3 positions, centers in escape, metal body. For dual-effect cylinder control. Reference: 281MVHC2014H08A Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Unipolar flexible cable roll 1 mm2 red 200m

Cables for electrical installations

Unipolar flexible cable roll 1 mm red 100m

Top Cable

H05V-K-R11

€32.44 (€27.03 tax excl.)

Roll of 100m flexible cable of 1mm2 section, red color, specially designed for internal wiring of electrical cabinets, switch boxes and electrical appliances. Designed under CPR (EN 50575). Series: TopFlex V-K Color: Red. Section: 1mm2. Representative image for illustrative purposes, the item supplied will correspond to the indicated...

Intermediate "T" fittings

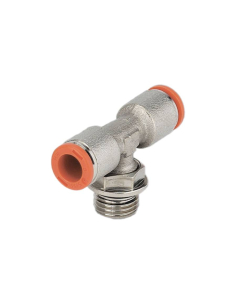

Swivel T-fitting with 1/8 central thread 4mm tube - Metal Work

Metal Work

2L32002

€4.04 (€3.37 tax excl.)

1/8" central male threaded swivel "T" fitting for 4mm diameter tube, made of brass . Very simple and effective connection that allows reconnection thousands of times without compromising perfect pneumatic and mechanical retention . Reference: 2L32002 Representative image for illustrative purposes, the item supplied will correspond to the specifications...

Silencer 1/8 bronze sintered body low - ADAJUSA

Silencer 1/8 bronze sintered body low - ADAJUSA 2

Pneumatic silencers

Muffler 1/8 sintered bronze lower body ST series

Aignep

ST18

€0.73 (€0.61 tax excl.)

Sintered bronze 1/8" male thread pneumatic Muffler , to attenuate exhaust noise in valves and pneumatic elements. The silencer is manufactured in small size to optimize assembly. Reference: ST 1/8 Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

Double insulated toe caps

Bag of 100 pre-insulated 1mm double toe

Generico-ELECT

2040174

€2.10 (€1.75 tax excl.)

Bag of 100 pre-insulated double hollow toe for 1 mm2 cable, red color. Manufactured according to norm . Red colorReference: 2040174 Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

Adjustable regulator 1/4 diameter 8 for cylinder - Metal Work | ADAJUSA

Adjustable regulator 1/4 diameter 8 for cylinder - Metal Work | ADAJUSA 2

Flow and pressure regulators

Adjustable Regulator 1/4 tube diameter 8 for technopolymer cylinder - Metal Work

Metal Work

9021009C

€16.78 (€13.98 tax excl.)

Adjustable flow regulator of 1/4. Tube of diameter 8 to mount on cylinder feed mouth, metal body. Cylinder mounting.Reference: 9021009CRepresentative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

1/4 metal pressure regulator with pressure gauge - Mindman

1/4 metal pressure regulator with pressure gauge - Mindman 2

Filter groups of 1/4 FR-L

Metal pressure regulator 1/4 with pressure gauge - Mindman

Mindman

MAR20008A

€21.26 (€17.72 tax excl.)

Pressure regulator of 1/4 0-8.5 Kgrs., with metal body. Fixation by square. The pressure regulator is supplied with the fixing bracket and the pressure gauge.Reference: 281MAR20008A Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

VDE 1000V 2.5x75mm flathead Screwdriver CD2575 | ADAJUSA | price

VDE 1000V 2.5x75mm flathead Screwdriver CD2575 | ADAJUSA | price 2

Tools

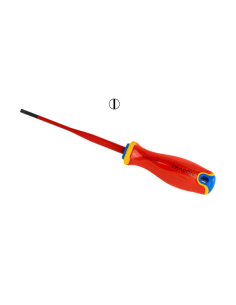

Flathead Screwdriver 2.5x75mm VDE 1000V insulation
