Female cylindrical adjustable elbow fitting 1/4...
Female cylindrical adjustable elbow fitting 1/4 tube 10mm Series 55000 - Aignep

Female cylindrical adjustable elbow fitting 1/4 tube 10mm Series 55000 - Aignep

€3.99 Tax included

€3.30 tax excl.

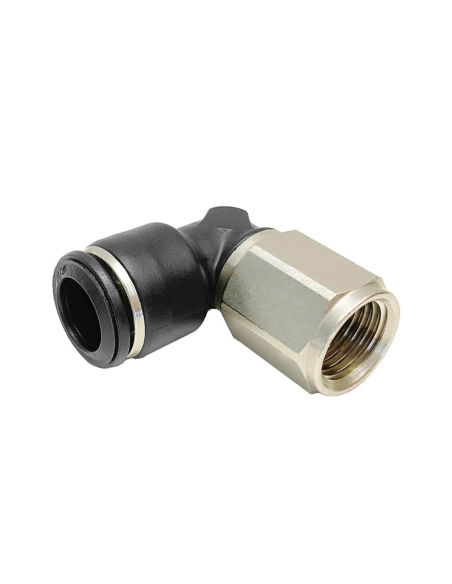

Adjustable elbow fitting with 1/4 cylindrical thread for 10mm tube , made of technopolymer and nickel-plated brass, the tube extraction ring in acetal resin. Very simple and effective connection that allows reconnection thousands of times without compromising perfect pneumatic and mechanical retention .

Series: 55000
Reference: 55106 10 1/4




aignep
normative


Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!


Adjustable elbow fitting with 1/4 cylindrical thread for 8mm tube, made of technopolymer and nickel-plated brass, the tube extraction ring in acetal resin. Very simple and effective connection that allows reconnection thousands of times without compromising perfect pneumatic and mechanical retention ; The clamping spring clamps the tube without engraving or deforming it, thus allowing greater simplicity in the operation of connecting or disconnecting the tube fitting.

This fitting is suitable for robotics, automotive, textile industry, packaging, handling, compressed air circuits, industrial water and vacuum.


Technical characteristics:

  • Manufacturer: Aignep .
  • Reference: 55106 10 1/4
  • Female thread: 1/4
  • Tube outer diameter: 10mm
  • Fluid: vacuum, compressed air and water
  • Material: Technopolymer and nickel-plated brass
  • Tube extractor ring: acetal resin
  • retention gasket: NBR
  • Clamping spring: stainless steel
  • Pressure: -0.99 bar at 20 bar
  • Working temperature: -20ºC to +80ºC
  • Thread regulations:
    • Conical gas conforming to ISO 7.1, BS 21, DIN 2999
    • Cylindrical gas conforming to ISO 228 Class A
    • ISO R/262 compliant metric

55106Esq

55106Tab

Material for professional use, install in compliance with the regulations in force at the installation site.
