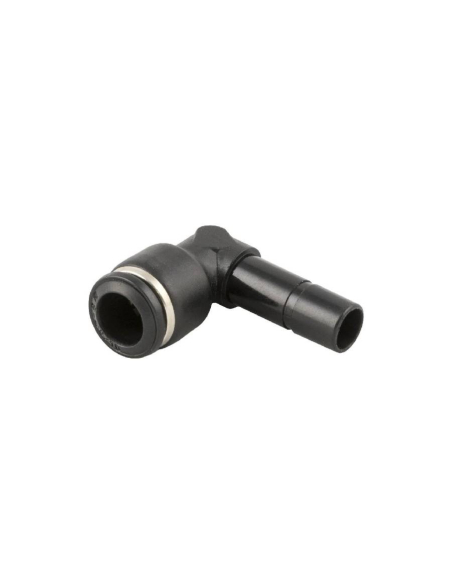

10 tube swivel L fitting with 10mm short nipple...
10 tube swivel L fitting with 10mm short nipple 55000 Series - Aignep

10 tube swivel L fitting with 10mm short nipple 55000 Series - Aignep

€1.21 Tax included

€1.00 tax excl.

90° elbow fitting for 10mm O.D. pipe with 10mm short smooth nipple, made of technopolymer. Very efficient connection simple that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention.


Series: 55000
Part number: 55140 10 10




aignep
normativa


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


90° elbow fitting for 10mm O.D. pipe with 10mm short smooth nipple, made of technopolymer. Very efficient connection simple that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention. It has a clamping spring, which clamps the tube without deforming it, thus simplifying the operation of connecting or disconnecting the fitting from the tube.

This fitting is suitable for robotics, automotive, textile industry, packaging, handling, compressed air circuits, industrial water and vacuum.

Technical characteristics:

  • Manufacturer: Aignep.
  • Part number: 55140 10 10
  • Outer tube diameter: 10mm
  • Spigot diameter: 10mm
  • Fluid: vacuum, compressed air and water
  • Material: Technopolymer
  • Tube puller ring: acetal resin
  • Seal of retention: NBR
  • Clamping spring: stainless steel
  • Pressure: -0,99 bar to 20 bar
  • Working temperature: -20°C to +80°C
  • Thread standard
    • Gas conical according to ISO 7.1, BS 21,DIN 2999
    • Gas cylindrical according to ISO 228 Class A
    • Metric according to ISO R/262

55140dimensiones
55140TD

Material for professional use, install in compliance with the regulations in force at the place of installation.
