L fitting tube 6mm with short spike 6mm technopolymer - Metal Work

L fitting tube 6mm with short spike 6mm technopolymer - Metal Work

€2.88 Tax included

€2.38 tax excl.

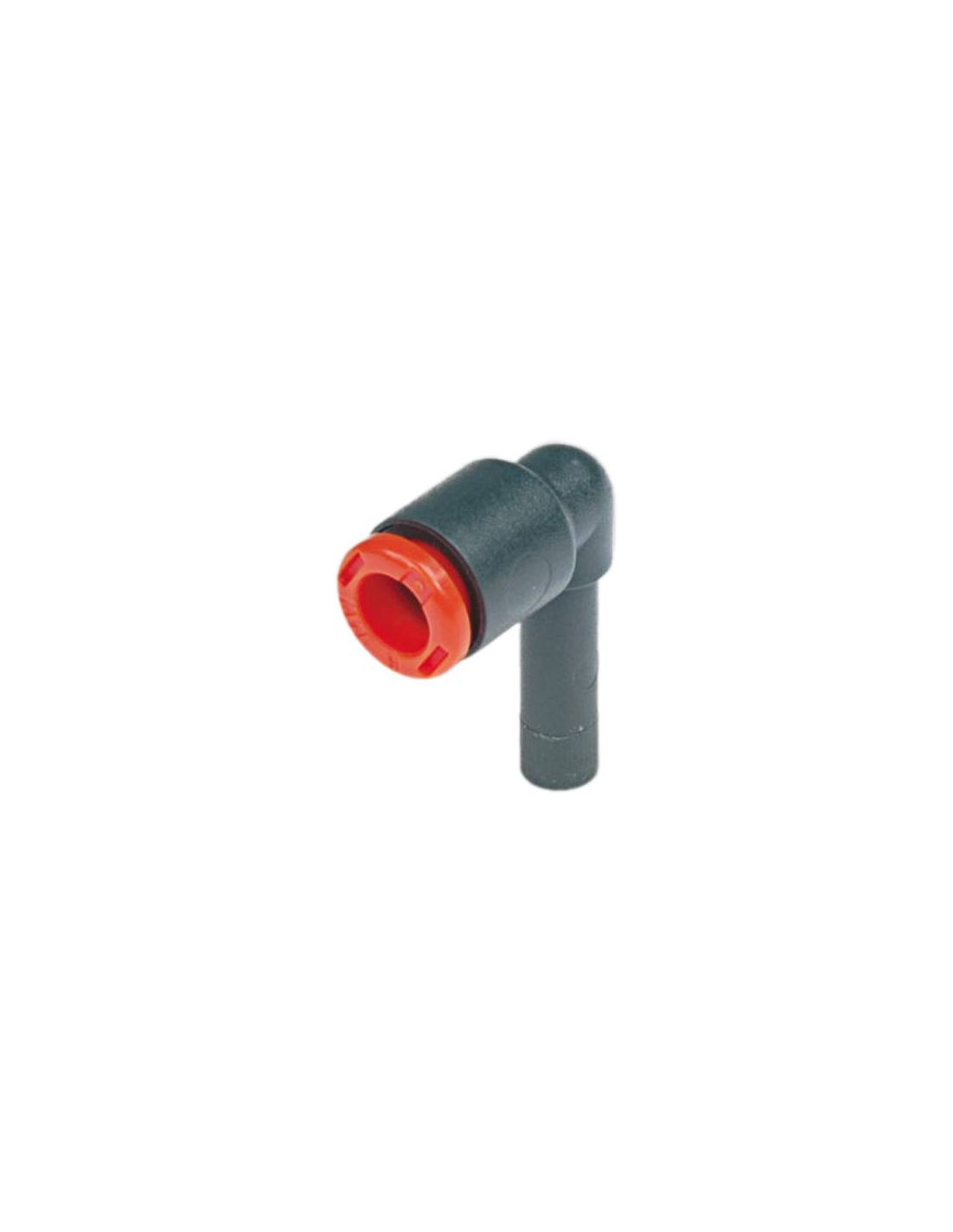

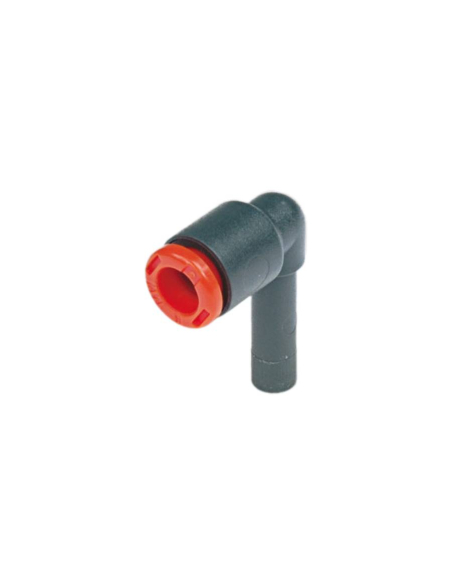

90° elbow fitting for 6mm external diameter tube with 6mm short smooth spike , made of technopolymer. Very simple and effective connection that allows reconnection thousands of times without compromising perfect pneumatic and mechanical retention .

Reference: 2L46002

Logo-Metal-Work

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


90° elbow fitting for 6mm external diameter tube with 6mm short smooth spike , made of technopolymer. Very simple and effective connection that allows reconnection thousands of times without compromising perfect pneumatic and mechanical retention ; the retaining spring holds the tube without etching or deforming it, thus allowing greater simplicity in the operation of connecting or disconnecting the fitting from the tube. In the fittings, the fitting ring has slots for the screwdriver to facilitate disconnection in applications inaccessible to the fingers.



MATERIALS

Technical characteristics:

  • Manufacturer: Metal Work
  • Reference: 2L46002
  • Outer diameter of tube: 6mm
  • spike diameter: 6mm
  • Fluid: Vacuum - Compressed air
  • Operating pressure: -0.99 bar to 12 bar
  • Material: technopolymer
  • Working temperature: -20ºC to +60ºC
  • Thread regulations:
    • Conical gas conforming to ISO 7.1, BS 21, DIN 2999
    • Cylindrical gas according to ISO 228 Class A
    • Metric according to ISO R/262


2L46 dimensions


Professional use material, install in compliance with the regulations in force at the installation site.
