Sleeves for bearings 80x120x65 mm Series H - ISB

€26.70 Tax included

€22.07 tax excl.

Fixing sleeves with nut and lock washer measuring 80x120x65 mm complete. Used to lock the bearings, facilitating the fixing, assembly and disassembly of the bearings.

Reference: H 318

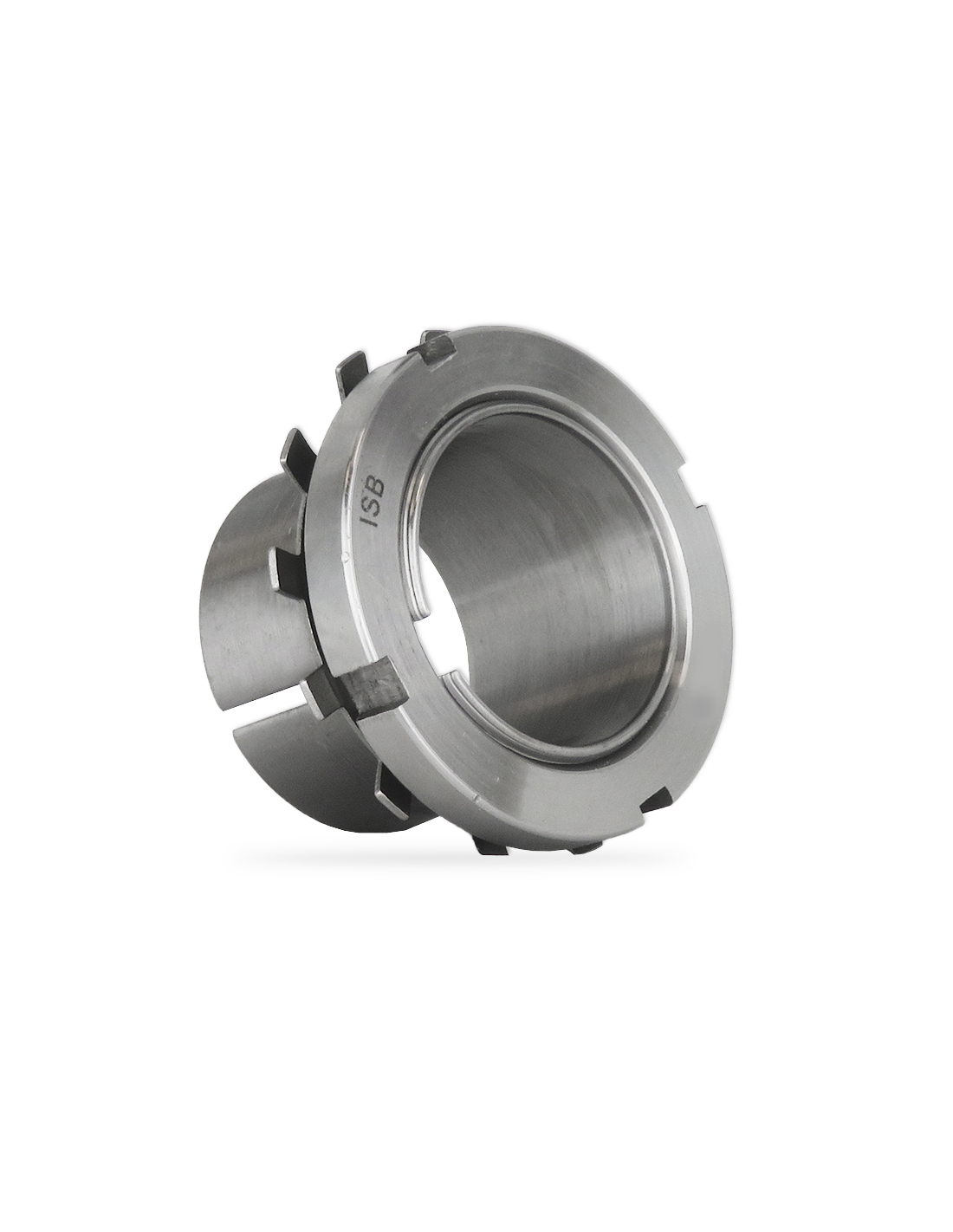

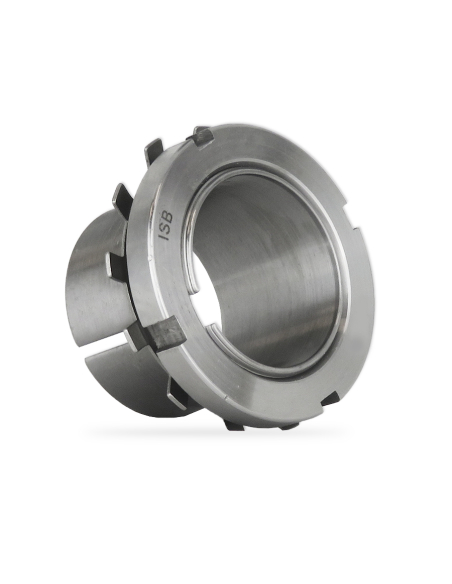

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!

Fixing sleeves are useful for locking bearings with a tapered hole on cylindrical shafts.

Manufactured in a conical shape and cut longitudinally to best adapt to the dimensions of the bearing hole.
The delivery includes a KM 18 locking nut, an MB 18 lock washer and HMV18E hydraulic nut.

Features of the sleeves:
  • Manufacturer: ISB
  • Reference: H 318
  • Internal diameter (d1): 80mm
  • Outer diameter (d): 90mm
  • Outer diameter of lock nut (d3): 120mm
  • Sleeve width (B1): 65mm
  • Width of nut with washer (B2): 18 mm
  • Nut Metric (G): M90x2
  • Weight: 1.3kg
  • Lock nut: KM 18
  • Lock washer: MB 18
  • HMV18E Hydraulic Nut


cuff dimensions table
sleeves2 dimension table

Material for professional use, install in compliance with the regulations in force at the installation site.
