Sleeves for bearings 25x45x38 mm Series H - ISB

€4.90 Tax included

€4.05 tax excl.

Fixing sleeves with nut and lock washer measuring 25x45x38 mm complete. Used to lock the bearings, facilitating the fixing, assembly and disassembly of the bearings.

Reference: H 2306

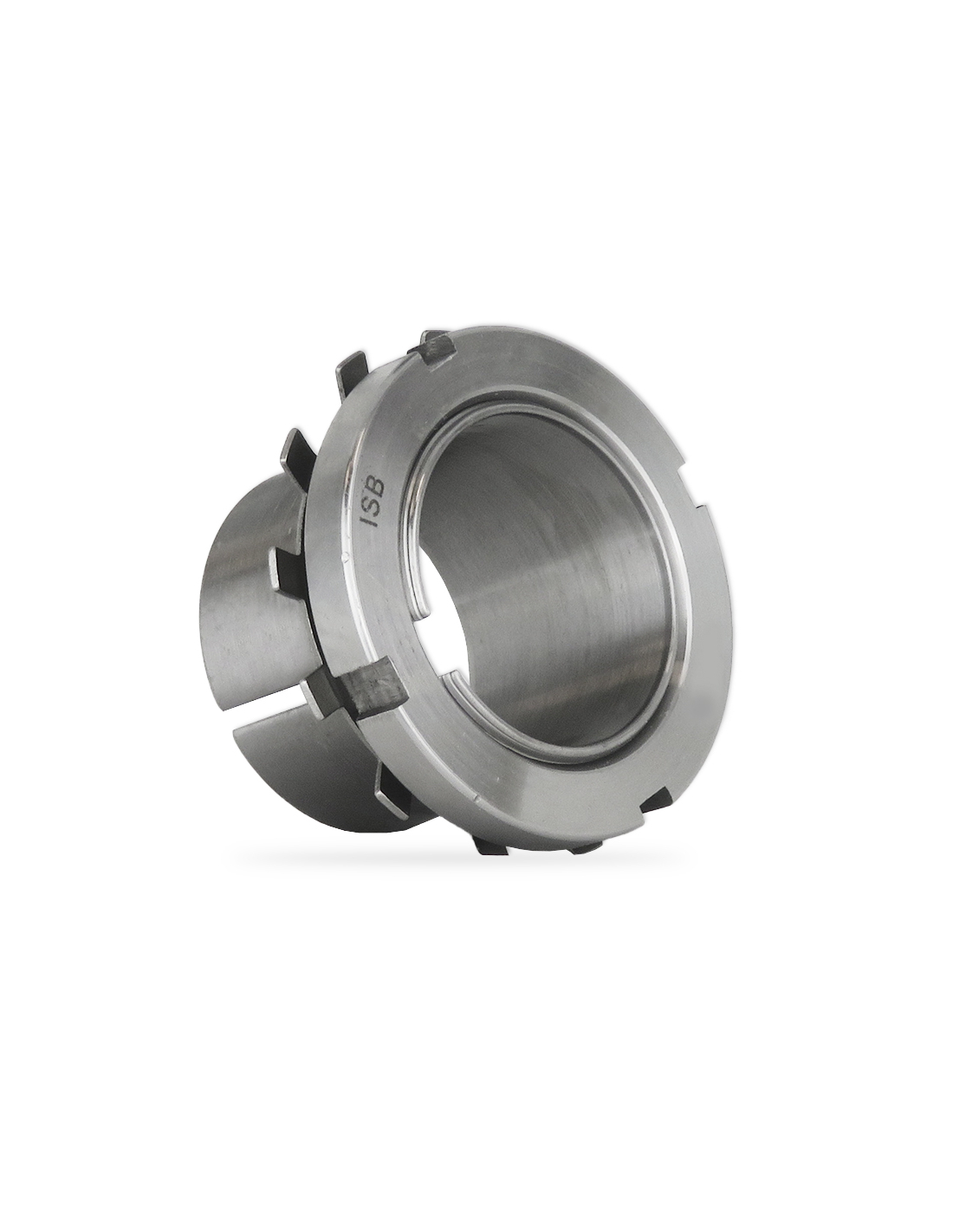

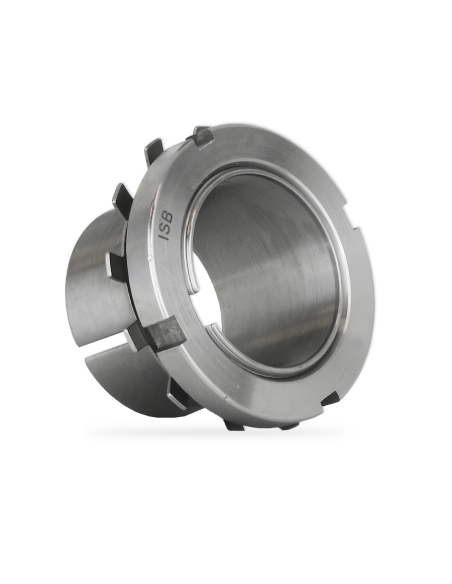

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!

Fixing sleeves are useful for locking bearings with a tapered hole on cylindrical shafts.

Manufactured in a conical shape and cut longitudinally to best adapt to the dimensions of the bearing hole.
Delivery includes one locking nut KM 6 and one lock washer MB 6

Features of the sleeves:
  • Manufacturer: ISB
  • Reference: H 2306
  • Internal diameter (d1): 25mm
  • Outer diameter (d): 30mm
  • Outer diameter of lock nut (d3): 45mm
  • Cuff width (B1): 38mm
  • Width of nut with washer (B2): 8 mm
  • Nut Metric (G): M30x1.5
  • Weight: 0.11kg
  • Lock nut: KM 6
  • Lock washer: MB 6


cuff dimensions table
sleeves2 dimension table

Material for professional use, install in compliance with the regulations in force at the installation site.
